Shangqiu Aotewei Environmental Protection Equipment Co., Ltd. is one of the leading manufacturers and suppliers of waste oil refinery plant in China. We are committed to providing high quality customized products with competitive price. If you're going to buy ISO certified waste oil refinery plant, welcome to get quotation from our factory.
Product Name

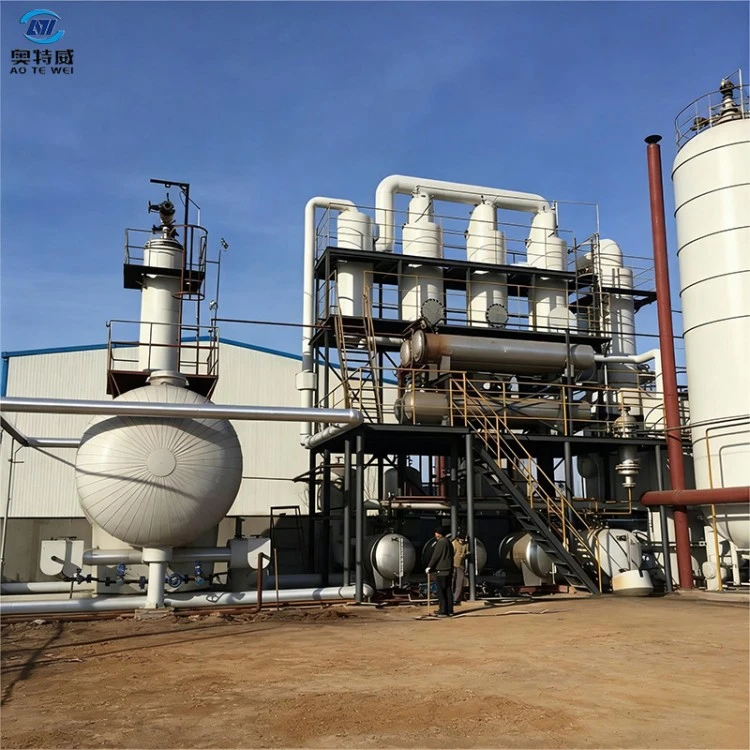

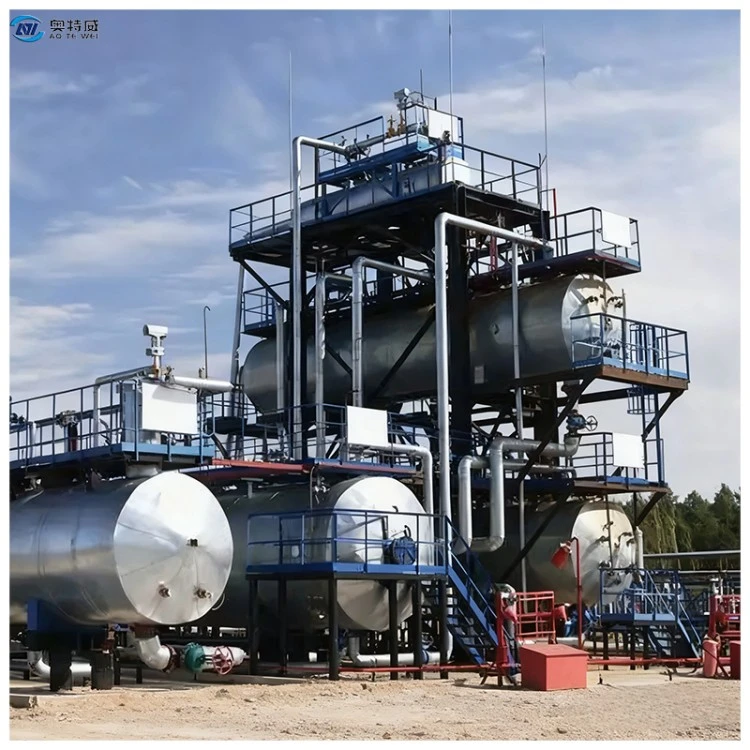

Multi-functional Complete-set Waste-Oil Vacuum Cracking Refinery Plant (Waste Oil Refinery Plant). Adopting integrated processes of pre-treatment, vacuum cracking, multi-stage fractionation and post-oil-gas-treatment for various waste oils with complex compositions, it converts waste fuel oil, crude pyrolysis oil and industrial waste oil into light fuel fractions. It is applicable to waste-oil upgrading and refining projects for hazardous-waste enterprises and pyrolysis plants. Price: 600,000 US Dollars.
| Key attributes - Vertical Distillation Equipment | ||
| 1 | Attribute | Value |
| 2 | Oil Type | Diesel |
| 3 | Phase | Three Phase |
| 4 | Voltage | Customized |
| 5 | Condition | New |
| 6 | Warranty | 1 Year |
| 7 | Raw Material) | Crude Oil, Used Ship Oil |
| 8 | Place of Origin | Henan, China |
| 9 | Brand Name | AOTEWEI |
| 10 | Name | Distillation Equipment |
| 11 | Advantages | Energy Saving, High Efficiency and Environmental Protection |
| 12 | Color | Customized |
| 13 | Function | Refined waste oil, tire‑derived oil, plastic‑derived oil, kitchen waste oil, etc. |
| 14 | Product Name | Refine equipment |
| 15 | After-sales Service Provided | Online Support |
| 16 | Type | Vacuum Filtration |
Features
Multi-stage pre-treatment & purification unit:
The waste oil refinery plant is equipped with settling-filtration, de-asphalting and impurity-removal reaction sections. It can remove ash, colloids and heavy asphaltenes in feedstock, slow down coking rate on inner walls of subsequent cracking columns and reduce load of downstream equipment.
Graded vacuum cracking-fractionation system:
It adopts gradient-heating vacuum cracking. Components of different boiling points are vaporized and separated step-by-step. Cracking and fractionation are completed simultaneously under vacuum conditions to lower reaction temperature and prevent secondary cracking and carbonization of oil products.
Multi-stage condensation & in-depth oil-gas purification module:
Multi-stage gradient condensation recovers oil products. Supporting alkaline-washing adsorption purification unit removes sulfides and nitrides from oil-gas and reduces sulfur content of finished oil.
Intelligent interlock safety control system:
Multi-dimensional signal acquisition for temperature, vacuum degree, pressure, liquid level and combustible gas is integrated. Under abnormal working conditions, it will automatically interlock to cut off feedstock and activate pressure-relief protection. Both local and remote monitoring are supported.
Sealed residue conveying & discharging mechanism:
Heavy residues of the waste oil refinery plant are continuously discharged via sealed screw mechanism. The whole process is fully sealed without open ports to avoid volatilization and leakage of residue-carried oil-gas and improve on-site working conditions.
Advantage
Low reaction temperature and slow coking rate:
Vacuum cracking reduces material cracking temperature. Compared with atmospheric cracking, coking speed on equipment inner walls is slowed down and coke-cleaning frequency is reduced.
Stable oil yield and high light-oil output ratio:
Cracking depth is reasonably controlled to effectively improve the yield of gasoline-diesel fractions and cut generation of ineffective carbon residues.
Sealed residue discharge with good environmental-protection performance:
Residues are conveyed and discharged in sealed mode without open-type slag-removal. No oil-gas escapes, complying with environmental-protection control requirements for hazardous-waste plants.
Synchronized oil-gas purification for upgraded oil quality:
Adsorptive desulfurization and denitrification are conducted after condensation. No additional independent refining equipment is required, simplifying project configuration.
Adjustable operating conditions to adapt to feedstock fluctuation: Temperature, vacuum degree and feed flow rate can be flexibly adjusted in response to composition fluctuation of raw materials to guarantee stable production.
Application Scenarios
- Supporting upgrading for waste-tire / waste-plastic pyrolysis plants: Further crack and fractionate crude oil produced by pyrolysis, and process crude pyrolysis oil into light fuel fractions.
- Waste-oil disposal for comprehensive hazardous-waste-treatment enterprises: Treat industrial waste oils from mixed sources to realize hazardous-waste volume reduction and resource recovery.
- Deep-processing of oil products for oil-sludge treatment projects: Crude oil recovered from oil sludge is sent into this plant for cracking and upgrading to improve oil utilization rate.
- Resource-oriented processing of waste fuel oil and waste heavy oil: Upgrade various waste heavy oil and residual oil to produce salable fuel-oil products.
- Upgrading & retrofitting of existing refinery production lines: Conduct technical upgrading on existing cracking-refining production lines to raise light-oil yield and environmental-protection standards.
Packing & Shipping
- Pressure-vessel components including cracking reactor, fractionation column, heat exchanger and sealed-residue-conveying assemblies are treated with sandblasting for rust removal and anti-corrosion. Protective cover plates are fitted for all nozzle flanges. Tall column sections are manufactured in segments, bare-packed and fixed on transport bases with limit anti-collision reinforcement.
- Electrical and instrument components such as DCS control system, vacuum unit, gas detector, desulfurization adsorption assembly, regulating valve and flow meter are individually packed in shock-proof and moisture-proof solid-wood cases filled with cushioning materials. International sea-shipping marks such as "This Side Up" and "Keep Dry" are printed on cases.
- Column internals, filter elements, sealing gaskets, valves & pipe fittings and special maintenance tools are packed separately by category. Each package is attached with a clear material list for checking and acceptance upon port arrival.
- Main equipment components are split to comply with 40HQ container specifications. Over-length and over-weight components adopt break-bulk sea-freight. Complete packing lists and loading technical guidance are provided, and customers' on-site loading supervision is supported.
- Complete engineering documents are delivered together with equipment: PID process flow diagrams, general assembly drawings of equipment, pressure-vessel inspection documents, non-destructive-testing reports, operation & maintenance manuals, spare-parts lists and supporting import-export customs-declaration files.
FAQ
Q1: What kind of feedstock is most suitable for this plant?
A: It is preferred to process crude pyrolysis oil, waste heavy oil and waste fuel oil. Large particle solid impurities shall be removed from raw materials in advance. Feedstock with excessive moisture must go through pre dehydration. Direct processing of waste lubricating oil with high metal content is not recommended.
Q2: What is the approximate yield of light oil products?
A: The yield depends on the composition of raw materials. The light oil yield of high quality crude pyrolysis oil can reach 65 78%. Higher asphalt and ash content in feedstock will lead to lower light oil yield.
Q3: What is the coke cleaning cycle of the plant?
A: On the premise of qualified pre treated feedstock, shutdown for coke cleaning is required after 18 32 days of continuous operation. Higher colloid and asphalt content in raw materials will correspondingly shorten the coke cleaning cycle.
Q4: Can the oil gas purification unit remove sulfur completely?
A: The alkaline washing adsorption unit can reduce sulfur content and realize sulfur reduction treatment. High sulfur feedstock requires an additional deep desulfurization unit.
Q5: What is the capacity range of the equipment?
A: The daily processing capacity of standard models ranges from 8 70 tons. Non standard customization is supported, and capacity can be customized according to customers' raw material processing scale.
Product Certifications
- Main pressure-vessel equipment has obtained domestic special-equipment manufacturing supervision-inspection certificates. The whole set of equipment complies with safety technical specifications for pressure vessels.
- The electrical control system meets explosion-proof standards and satisfies explosion-proof requirements for hazardous-waste plants.
- Third-party certification documents such as CE and SGS can be provided to meet customs-declaration and local plant-construction audit requirements for overseas projects.
- The process design conforms to relevant domestic technical specifications for hazardous-waste resource utilization. We can cooperate with customers in submitting equipment-related technical documents for EIA (Environmental Impact Assessment).
- All pressure-bearing parts are delivered from factory with non-destructive-testing and pressure-test reports. Full-set Chinese-English bilingual certification documents are available.
