Products Description
Batch-Mode Waste Plastic Pyrolysis Unit
The Batch-Mode Waste Plastic Pyrolysis Unit is specially developed for resource regeneration of various waste plastic solid wastes. Adopting sealed high-temperature pyrolysis technology, it converts waste plastic materials into reusable by-products such as fuel oil, carbon black and process combustible gas. Featuring batch-type intermittent production mode, the unit comes with controllable overall investment and easy commissioning, which is ideal for small-and-medium-sized solid-waste treatment plants to carry out waste-plastic reduction and recycling business.
Price Note: Actual quotation is subject to raw-material market fluctuation and international exchange-rate change. The reference price for 5-ton standard configuration is approximately USD 36,000 per set (excluding sea freight and all import taxes). Please leave your contact information, and we will send you the latest complete quotation promptly.
| Technical Parameter of the Pyrolysis plant | |||
| 1 | Suitable Raw Materials | Rubber/Plastic Products etc | Rubber/Plastic Products etc |
| 2 | Structure | Horizontal Rotation Type | Horizontal Rotation Type |
| 3 | Reactor Size | φ2600×6600mm φ2800×8000mm φ3000×8800mm |
φ1500×2000mm φ1800×4000mm φ2000×600mm |
| 4 | Capacity for One Batch | 8-10Mt; 12-15Mt; 18-20Mt | 1Mt; 3Mt; 5Mt |
| 5 | Oil Yield from Tyres | 40%~90% | 40%~90% |
| 6 | Work Pressure | Normal Pressure | Normal Pressure |
| 7 | Reactor Rotation Speed | 0.4R/M | 0.4R/M |
| 8 | Fuels Choice | Coal, Wood, Gas, Oil | Coal, Wood, Gas, Oil |
| 9 | Power | 15~22kw/h | 8~15kw/h |
| 10 | Cooling Method | Cycling Water | Cycling Water |
| 11 | Type of Drive | External Annular Gear | External Annular Gear |
| 12 | Heating Method | Direct Heating | Direct Heating |
| 13 | Type of Installation | Without Foundation | With Foundation / Integrated Base |
| 14 | Noise dB (A) | ≤ 85 | ≤ 85 |
| 15 | Operating Mode | Intermittent Operation | Intermittent Operation |
| 16 | Total Weight (MT) | 25~50 | 10~25 |
Features
① Thickened Q345R Reactor Vessel
The Batch-Mode Waste Plastic Pyrolysis Unit adopts Q345R pressure-vessel steel plate with national-standard positive tolerance at 20 mm thickness, equipped with automatic submerged-arc welding and external reinforcing ribs for reactor shell.
② Greatly Reduced Downtime Loss
A 12 mm thickened integrated dual-spiral component is installed inside the reactor chamber. The spiral parts and reactor vessel adopt materials from the same batch with identical thermal expansion coefficient, resisting cracking and failure during operation. Angle-steel reinforcements are arranged at 1-meter intervals for stable slag-discharge performance. This design cuts down man-hours consumed by slag-cleaning maintenance and improves the effective production time of the whole unit.
③ Zirconium-Aluminum Composite Module Insulation Structure
The insulation interlayer consists of 20 mm zirconium-aluminum heat-insulating modules plus 5 mm needle-punched insulation blankets. Compared with traditional refractory cement insulation solutions, it enables several extra batches of material processing every month.
④ Reuse of Process Combustible Gas for In-house Energy Self-sufficiency
Non-condensable combustible gas released during plastic pyrolysis can be directly delivered to the combustion chamber as heating heat source, effectively lowering operational energy consumption.
Advantages
① Low Failure Rate
The driving unit delivers sufficient torque for smooth reactor rotation. DN351 split high-temperature wear-resistant riding rollers are adopted. Lubricant filling is performed after each batch to avoid personal-operation risks under high-temperature conditions.
② Large-diameter Feeding Door for Safe & Efficient Operation
The inner diameter of feeding-inspection door reaches DN1700, locked by high-strength M27 bolts and nuts without extra sealing gaskets, simplifying feeding and slag-discharge procedures. Combined with 316L stainless-steel double-layer fish-scale fire-resisting sealing baffles, it achieves excellent sealing performance.
③ High-capacity Enhanced Condensing Unit to Guarantee Pyrolysis Oil Quality
The cooling water tank applies dual-inlet & dual-outlet heat-exchange layout. Its outer shell is reinforced by double channel steel, and internal heat-exchange pipelines are all hot-dip galvanized for anti-corrosion. Fast oil-gas heat exchange produces pyrolysis fuel oil with low impurity content and bright color, achieving better selling performance in downstream markets.
④ Modular Full-set Supporting Solution with Turn-key Service Available
Optional accessories include S30408 stainless-steel desulfurization scrubber (6 mm thickness, fitted with 4 KW stainless-steel circulating water pump), induced-draft system, electric control cabinet, burner and other complete environmental-protection and automatic-control components. Free installation technical guidance is provided. We offer full-range support from project solution planning & equipment manufacturing to on-site commissioning and operator training to guarantee smooth project commissioning for customers.
Application Scenarios
The Batch-Mode Waste Plastic Pyrolysis Unit fits multiple business scenarios below:
Waste Plastic Recycling Plant: Process various waste plastics such as PP, PE, PS, plastic packaging waste and agricultural plastic film. Convert non-degradable plastic waste into industrial fuel oil to realize solid-waste resource recycling.
Packing & Shipping
Packing:

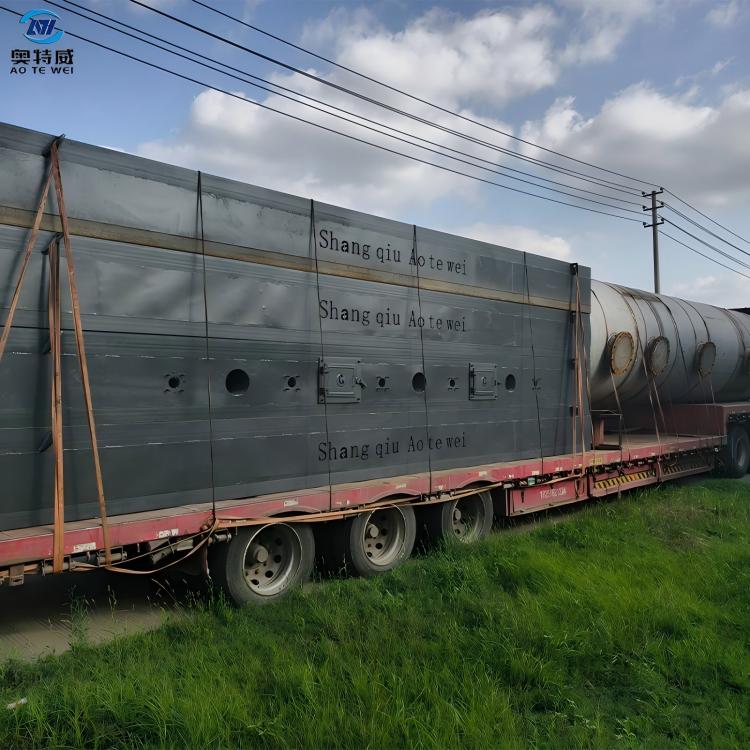

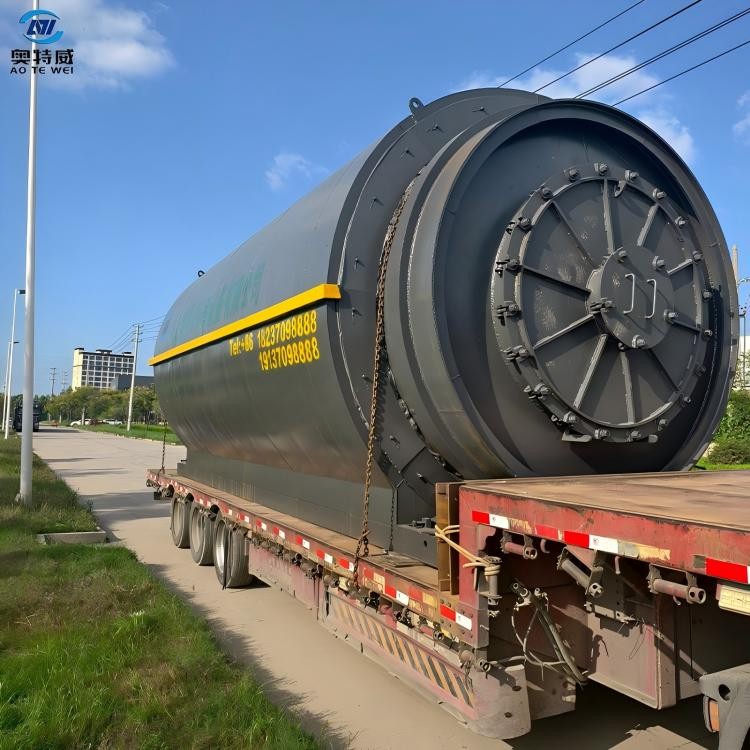

Large components such as reactor vessels are treated with bare-unit anti-rust protection. Precision spare parts including valves, measuring instruments and electric control cabinets are packed in solid wooden cases. Various loose pipes and small accessories are bundled and packed for protection.

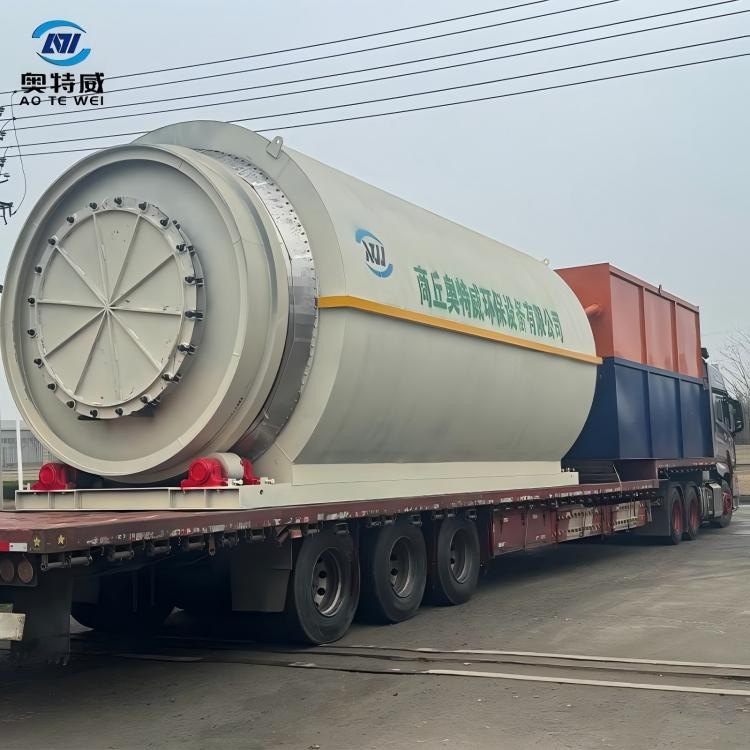

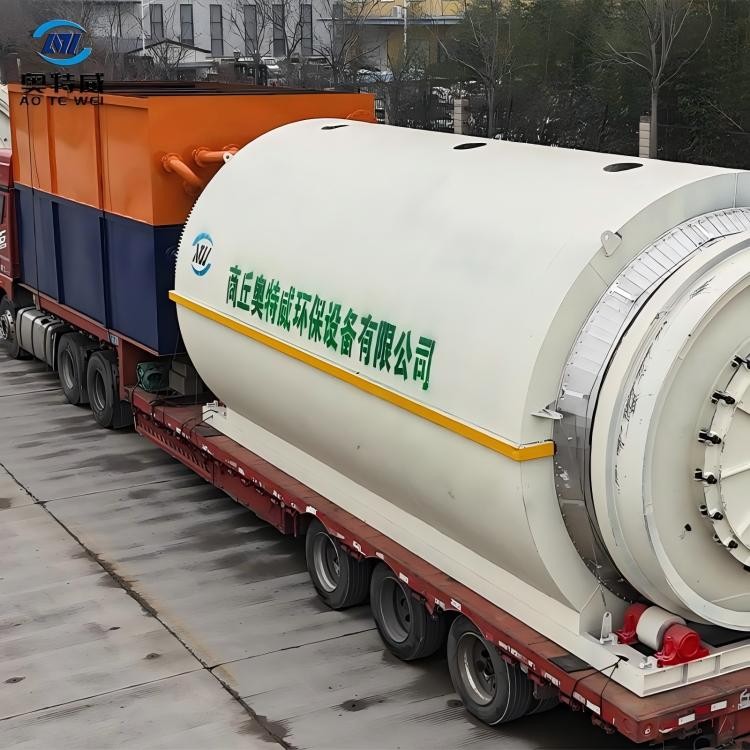

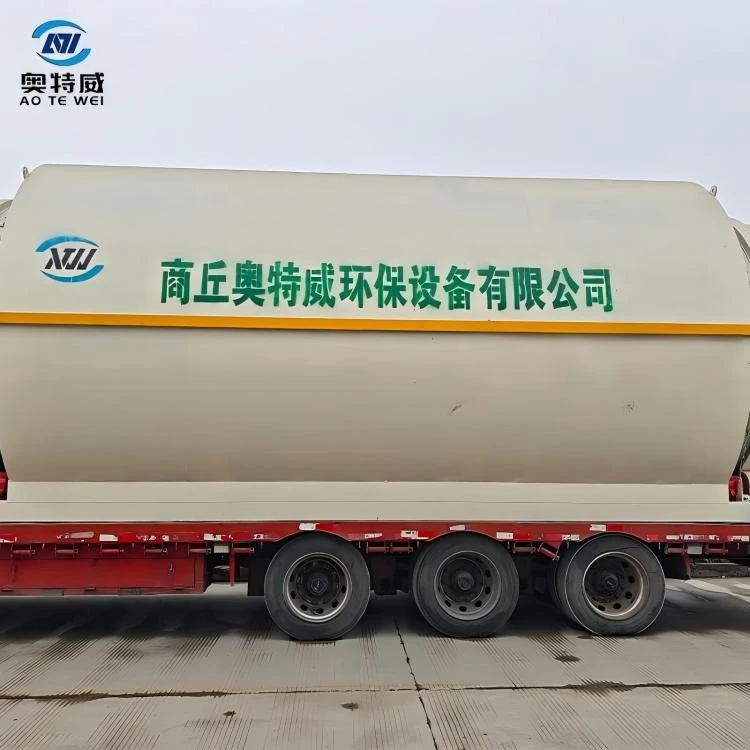

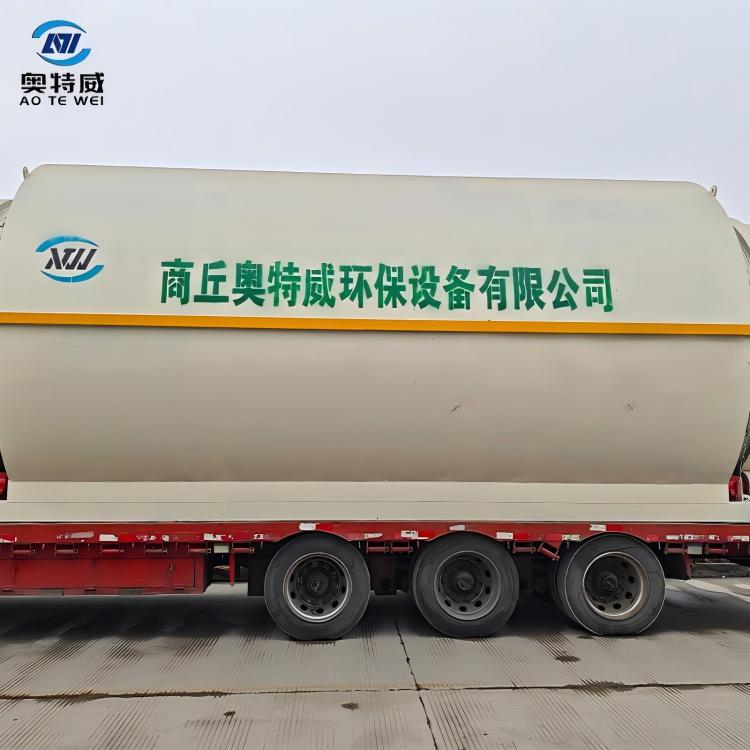

Shipping:
FCL sea freight or break-bulk sea freight is available. Subject to configuration, the 5-ton unit generally occupies one 40HQ container.
FAQ
Q1: What plastic raw materials can the batch mode waste plastic pyrolysis unit mainly process?
A: This unit is applicable to various waste plastics excluding PP, PE, PS, ABS and PVC. Common feedstocks include plastic films, woven plastic bags, plastic drums, plastic crates, foam plastics, waste plastic particles, etc. Oil yield and product quality vary with plastic types. We can provide targeted configuration suggestions according to your raw material conditions.
Q2: Will odor or black smoke be generated during unit operation?
A: Combustible gas produced by pyrolysis will be recovered via purification system and sent to combustion chamber for burning. Normally no obvious black smoke will occur. When equipped with desulfurization & dust removal system, flue gas can be further purified to reduce odor and pollutant emissions for better environmental protection compliance.
Q3: Is this unit suitable for small plastic recycling factories?
A: Yes. It features moderate investment, small footprint and clear operation procedures, requiring lower operator skill level than large continuous type units. It is well suited for small and medium sized plastic recycling plants, waste material collection stations and regional solid waste treatment projects.
Q4: Can fuel oil produced from plastic pyrolysis be sold directly?
A: Pyrolysis fuel oil can be used as industrial fuel. Its sale and application must comply with local regulations on environmental protection, fire safety and oil products. Distillation equipment can be equipped for further upgrading of oil quality if required.
Q5: What is the general equipment lead time?
A: For standard configuration units, approximately 60 working days are required for production and delivery upon receipt of advance payment. For special configuration requirements, lead time will be adjusted according to solution complexity.
Product Certifications
Aotewei pyrolysis series strictly complies with domestic industrial manufacturing standards. Pressure-bearing reactor vessels adopt Q345R pressure-vessel steel plates, and all key welds pass non-destructive testing. A complete quality-management system has been established. CE, ISO and other relevant certification documents can be provided for overseas customs clearance to ensure smooth import and satisfy local safety-production requirements.
