Shangqiu Aotewei Environmental Protection Equipment Co., Ltd. is one of the leading manufacturers and suppliers of batch tyre pyrolysis plant in China. We are committed to providing high quality customized products with competitive price. If you're going to buy ISO certified batch tyre pyrolysis plant, welcome to get quotation from our factory.
Products Description

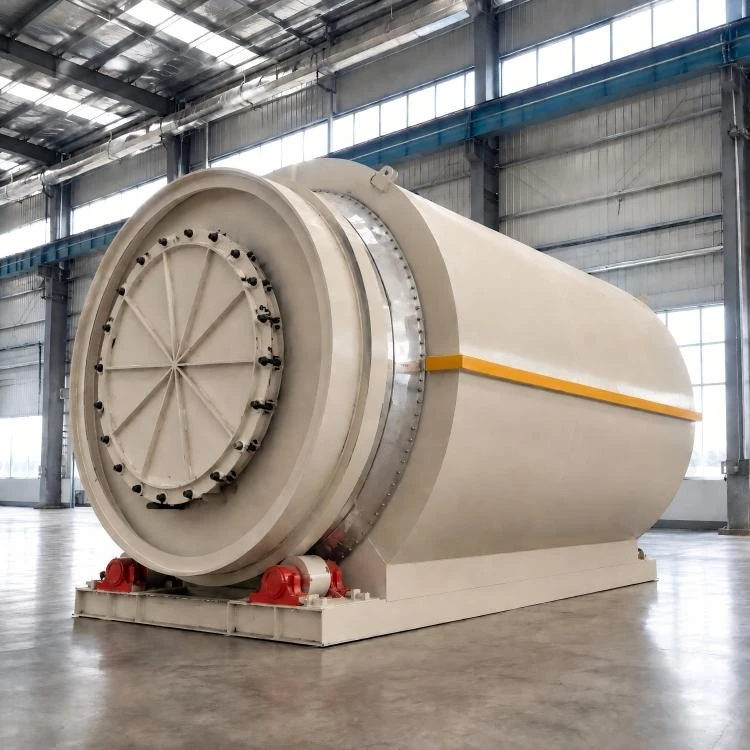

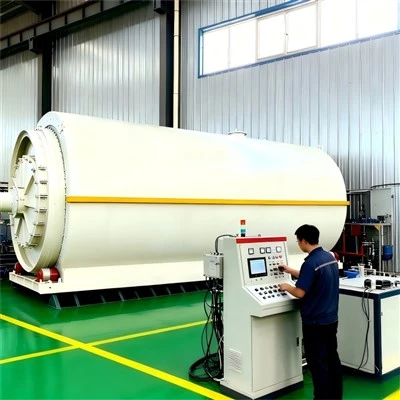

Batch Type Waste Tyre Pyrolysis Plant is designed for resource-oriented recycling of solid waste such as waste tyres. Through high-temperature pyrolysis technology, it converts waste rubber into high-value-added products including fuel oil, carbon black, steel wire and combustible gas. Adopting batch-mode operation, the equipment features flexible operation and low investment threshold. It is an ideal option for small-and-medium-sized waste recycling enterprises.
Price Note: Equipment price fluctuates with raw material market and exchange rate. The reference price for basic 5-ton configuration is approximately USD 36,000 per set (excluding freight and taxes).
| Technical Parameter of the Pyrolysis plant | |||
| 1 | Suitable Raw Materials | Rubber/Plastic Products etc | Rubber/Plastic Products etc |
| 2 | Structure | Horizontal Rotation Type | Horizontal Rotation Type |
| 3 | Reactor Size | φ2600×6600mm φ2800×8000mm φ3000×8800mm |
φ1500×2000mm φ1800×4000mm φ2000×600mm |
| 4 | Capacity for One Batch | 8-10Mt; 12-15Mt; 18-20Mt | 1Mt; 3Mt; 5Mt |
| 5 | Oil Yield from Tyres | 38%~45% | 38%~45% |
| 6 | Work Pressure | Normal Pressure | Normal Pressure |
| 7 | Reactor Rotation Speed | 0.4R/M | 0.4R/M |
| 8 | Fuels Choice | Coal, Wood, Gas, Oil | Coal, Wood, Gas, Oil |
| 9 | Power | 15~22kw/h | 8~15kw/h |
| 10 | Cooling Method | Cycling Water | Cycling Water |

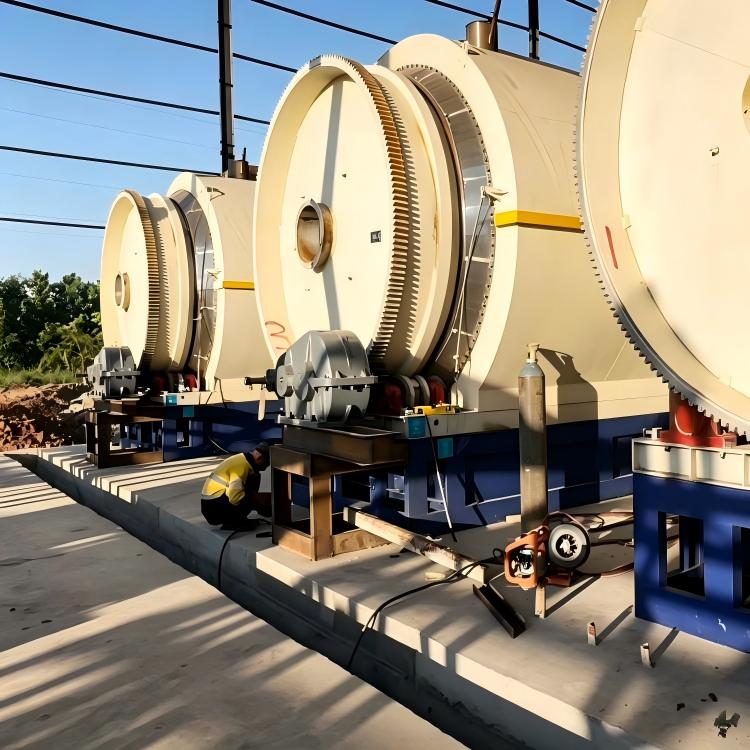

| 11 | Type of Drive | External Annular Gear | External Annular Gear |
| 12 | Heating Method | Direct Heating | Direct Heating |
| 13 | Type of Installation | Without Foundation | With Foundation / Integrated Base |
| 14 | Noise dB (A) | ≤ 85 | ≤ 85 |
| 15 | Operating Mode | Intermittent Operation | Intermittent Operation |
| 16 | Total Weight (MT) | 25~50 | 10~25 |
Features
Thickened Q345R Main Reactor for Longer Service Life
The main reactor of Batch Type Waste Tyre Pyrolysis Plant adopts Q345R boiler steel plate with national standard positive tolerance, at a thickness of 20 mm. Raw materials are sourced from top-tier steel mills such as Wuyang Iron & Steel. Subject to normalizing and tempering heat treatment, its service life is over one year longer than ordinary configurations.
Dual-inner-spiral plus External Reinforcing Ribs for Efficient Slag Discharge
The reactor is fitted with 12 mm thickened dual inner spirals (same material as reactor shell, identical thermal expansion rate, crack-resistant), which greatly cuts downtime for ash cleaning and improves overall production efficiency.
Zirconium-Aluminum Module Insulation for One Furnace per Day
The insulation layer consists of 20 mm zirconium-aluminum modules plus 5 mm needle-punched blankets, with temperature resistance up to 1260 °C. Combined with 3 × Φ325 air outlets, one full batch cycle only takes 22-23 hours to realize one furnace per day.
Recycle & Combustion of Syngas for Self-sufficient Fuel Supply
Non-condensable gas (syngas) generated in pyrolysis is recovered via purification system and directly fed into combustion chamber as heating fuel. No extra diesel or natural gas consumption is required while tail-gas emissions meet environmental standards.
Advantages
① Premium Core Components with Low Failure Rate
The reducer is 650-model 11 KW cast-steel variable-frequency explosion-proof unit manufactured by Lu'an Jianghuai Motor. DN351 split-type high-temperature wear-resistant riding rollers are equipped with dust-proof built-in bearings.
② Large Furnace Door & 316L Sealing for Safe & Easy Operation
The furnace door reaches DN1700 diameter with M27 nuts-and-bolts assembly without extra gaskets, saving one working procedure for feeding and slag-outlet. 316L stainless-steel double-layer fish-scale fire baffle plates are applied for sealing. It efficiently collects gas for ignition of the next furnace, delivering both safety and energy-saving performance.
③ High-efficiency Condensing System for Superior Oil Quality
The cooling water tank adopts dual-inlet & dual-outlet design, reinforced by double channel steel on outer shell with hot-dip galvanized pipelines. Fast condensation and sufficient oil-gas heat exchange produce fuel oil with light color and low impurities for higher market selling price.
④ One-stop Supporting & Turn-key Project
Complete environmental-protection and control systems are available, including S30408 stainless-steel desulfurization tower (6 mm thickness, equipped with 4 KW stainless-steel water pump), induced draft fan, power distribution cabinet and burners. Free technical guidance for installation is provided. Aotewei offers full-range support from solution design, equipment manufacturing, installation & commissioning to operator training to guarantee smooth commissioning for customers.
Application Scenarios
Batch Type Waste Tyre Pyrolysis Plant is applicable for scenarios below:
Waste-tyre Recycling Factory: Process waste passenger-car tyres, truck tyres, OTR tyres, etc. The yielded fuel oil can be directly burned in boilers and kilns; carbon black can be further processed into semi-reinforced carbon black grades such as N550 / N660.
Small-and-medium-scale Waste Resource Recovery Project: Moderate investment footprint plus simple operation. Suitable for startup projects or regional recycling centers with daily throughput of 5-20 tons.
Packing & Shipping
Packing
Main reactor and large components are bare-packed with anti-rust treatment. Precision parts (valves, instruments, electric cabinets etc.) are packed in wooden cases; pipes and accessories are bundled.

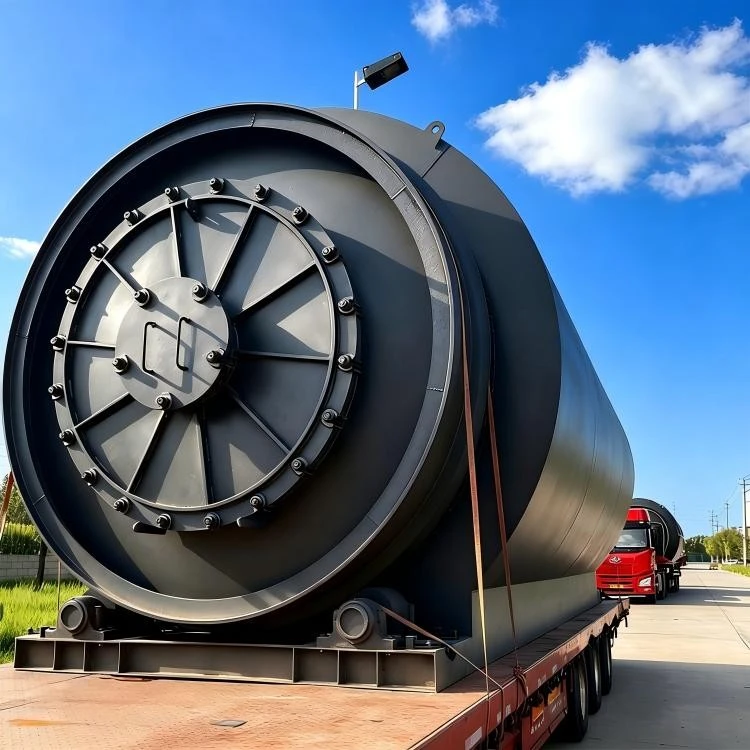

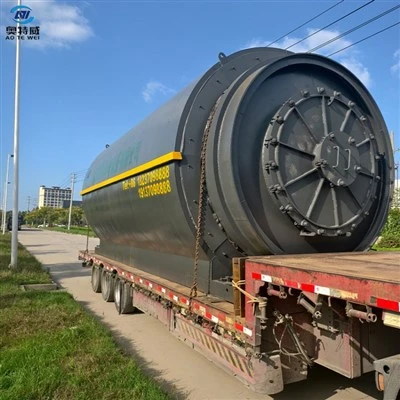

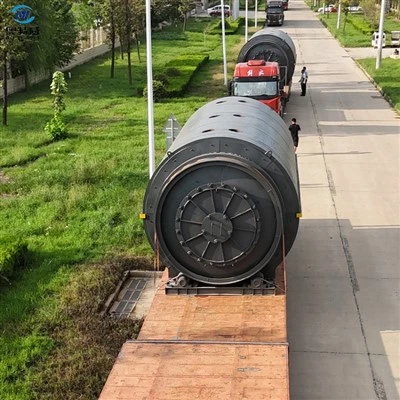

Shipping
Full Container Load (FCL) sea freight or break-bulk vessel, subject to specific equipment configuration.
Quotation Terms
Mainly EX-Works price, excluding tax, sea freight, civil construction, water-electricity cost and crane charges. FOBCIF and other trade terms can be calculated upon request.
FAQ
Q1: What are the differences between batch-type and continuous pyrolysis plants?
A: Batch-type runs in cycles: feeding → pyrolysis → slag discharging → re-feeding. It requires lower investment with flexible operation for small-to-medium-scale projects of 5-20 tons per batch. Continuous plants realize 24-h non-stop feeding and discharging with daily capacity of 20-300 tons and high automation for large-scale industrial projects.
Q2: How much oil can be obtained from one ton of waste tyre?
A: Depending on tyre type and condition, oil yield generally ranges from 40 %-55 %, steel wire 12 %-15 %, carbon black 30 %-35 %, and the rest is combustible gas.
Q3: Does the equipment meet environmental-protection standards?
A: It can be equipped with stainless-steel desulfurization tower plus dust-removal system. Flue gas passes desulfurization & dust-removal before chimney discharge to satisfy local environmental requirements. All syngas is recycled for combustion without black smoke or peculiar odor.
Q4: How long does installation take and what preparations shall we make?
A: On-site installation takes 15-30 days subject to configuration; we provide free technical guidance. The buyer shall prepare on-site welders, welding consumables, accommodation for our technicians, as well as civil foundation, water & power supply, crane, cables, oil storage tanks and other auxiliary materials.
Q5: What is the payment term?
A: 30 %-50 % advance payment, balance settled before shipment. T/T is acceptable; Letter of Credit can be negotiated for large-volume orders.
Client References
Aotewei Batch-type Waste Tyre Pyrolysis Plants have been exported to over 32 countries and regions worldwide with more than 10,000 cumulative clients. Successful installation cases cover Belt-and-Road countries including Russia, Nigeria, Haiti, Burkina Faso, Guinea, Iraq, South Africa, Philippines, Benin, Botswana, etc. The equipment gains wide customer recognition for stable operation and good oil yield. Many clients place repeat orders for second or third units after stable running of the first set and establish long-term cooperation with Aotewei.
