Shangqiu Aotewei Environmental Protection Equipment Co., Ltd. is one of the leading manufacturers and suppliers of waste tyre pyrolysis machine in China. We are committed to providing high quality customized products with competitive price. If you're going to buy ISO certified waste tyre pyrolysis machine, welcome to get quotation from our factory.
Products Description

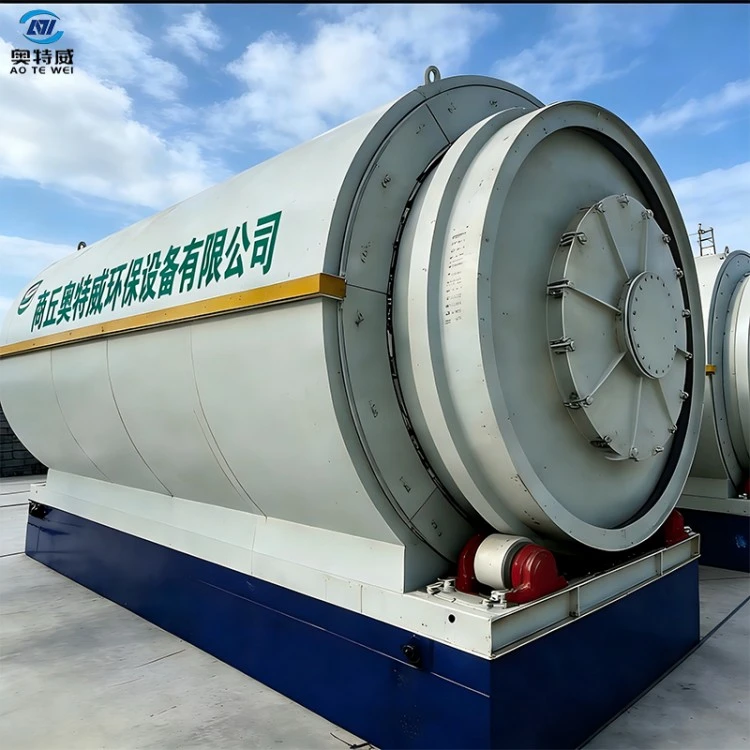

Waste Tyre Pyrolysis Machine
This Waste Tyre Pyrolysis Machine is a modular intermittent rotary pyrolysis-type equipment, targeting medium-and-small-scale waste-tyre-treatment scenarios. It is compatible with passenger-car tyres, light-truck tyres, rubber scraps and shredded tyre materials, with single-batch processing capacity ranging from 5 tons to 15 tons. It completes tyre pyrolysis under sealed oxygen-free conditions and produces fuel oil, pyrolytic carbon black, clean steel wire and combustible gas. Featuring modular assembly to lower on-site construction difficulty, the Waste Tyre Pyrolysis Machine helps customers rapidly launch small-scale tyre-resource-recovery projects and achieve waste-tyre volume reduction and resource-oriented utilization.
| Technical Parameter of the Pyrolysis plant | |||
| 1 | Suitable Raw Materials | Rubber/Plastic Products etc | Rubber/Plastic Products etc |
| 2 | Structure | Horizontal Rotation Type | Horizontal Rotation Type |
| 3 | Reactor Size | φ2600×6600mm φ2800×8000mm φ3000×8800mm |
φ1500×2000mm φ1800×4000mm φ2000×600mm |
| 4 | Capacity for One Batch | 8-10Mt; 12-15Mt; 18-20Mt | 1Mt; 3Mt; 5Mt |
| 5 | Oil Yield from Tyres | 38%~45% | 38%~45% |
| 6 | Work Pressure | Normal Pressure | Normal Pressure |
| 7 | Reactor Rotation Speed | 0.4R/M | 0.4R/M |
| 8 | Fuels Choice | Coal, Wood, Gas, Oil | Coal, Wood, Gas, Oil |
| 9 | Power | 15~22kw/h | 8~15kw/h |
| 10 | Cooling Method | Cycling Water | Cycling Water |
| 11 | Type of Drive | External Annular Gear | External Annular Gear |
| 12 | Heating Method | Direct Heating | Direct Heating |
| 13 | Type of Installation | Without Foundation | With Foundation / Integrated Base |
| 14 | Noise dB (A) | ≤ 85 | ≤ 85 |
| 15 | Operating Mode | Intermittent Operation | Intermittent Operation |
| 16 | Total Weight (MT) | 25~50 | 10~25 |
Features
Variable-frequency adjustable rotary-drive system:
The reactor rotating speed can be flexibly adjusted according to raw-material types. Low speed for whole-tyre feeding and high speed for shredded-tyre feeding, adapting to tumbling requirements of different feedstocks and optimizing pyrolysis reaction performance.
Modular oil-gas-processing unit for flexible optional expansion:
The oil-gas-processing unit adopts split-type modular design. The base version comes with standard condensation assemblies. Spray, coking-removal and desulfurization modules can be added as required for convenient later-stage upgrading and retrofitting.
Combined multi-sealing structure:
Double-layer sealing of graphite packing plus high-temperature-resistant gaskets is applied for end covers and rotating shaft positions. It guarantees sealing performance under high-temperature working conditions and reduces oil-gas leakage.
Visual temperature-and-pressure monitoring points:
Multiple temperature-and-pressure sampling points are arranged on the reactor and oil-gas pipelines. Meters display operating parameters intuitively so operators can grasp internal-reactor working conditions in real time.
Advantages
Variable-frequency adjustable rotating speed, one machine for multiple rubber feedstocks:
No replacement of main-equipment body is required. Only speed adjustment enables processing of whole tyres, rubber blocks and rubber scraps. It delivers strong material compatibility and supports stable production even with fluctuating raw-material supplies.
Modular oil-gas processing for phased-investment options:
Customers with limited initial budgets may choose the basic configuration. Oil-gas-purification modules can be added later upon business expansion without replacing the whole set, protecting upfront equipment investment.
Dual-sealing design to reduce oil-gas-leakage risk:
High-temperature-resistant sealing combination for rotating parts lowers gas-leak probability during long-time high-temperature operation, cuts combustible-gas loss and improves plant-site safety level.
Visual multi-point parameters reducing over-reliance on operator experience:
Key operating data is displayed intuitively. Novice operators can quickly judge equipment status and lower failure risks caused by human mis-operation.
Application Scenarios
- Regional medium-and-small-scale tyre-recycling stations: Local recycling outlets with moderate raw-material volume that are not suitable for large-scale plants. This main unit enables on-site disposal of collected waste tyres to directly obtain oil, steel wire and carbon-black products.
- Overseas projects for medium-and-small-sized investors: For overseas customers with limited plant space and budget yet abundant local waste-tyre supplies. The modular pyrolysis main unit supports fast commissioning without complicated civil-engineering work.
- In-house waste disposal for rubber-goods manufacturers: Rubber factories generate large volumes of waste-tyre off-cuts and rubber waste. The machine realizes on-site waste consumption and reduces third-party hazardous-waste-disposal expenses.
- Supporting projects for county-level environmental governance: For batch disposal of scattered stockpiled waste tyres within counties to ease local waste-tyre stock-piling pressure.

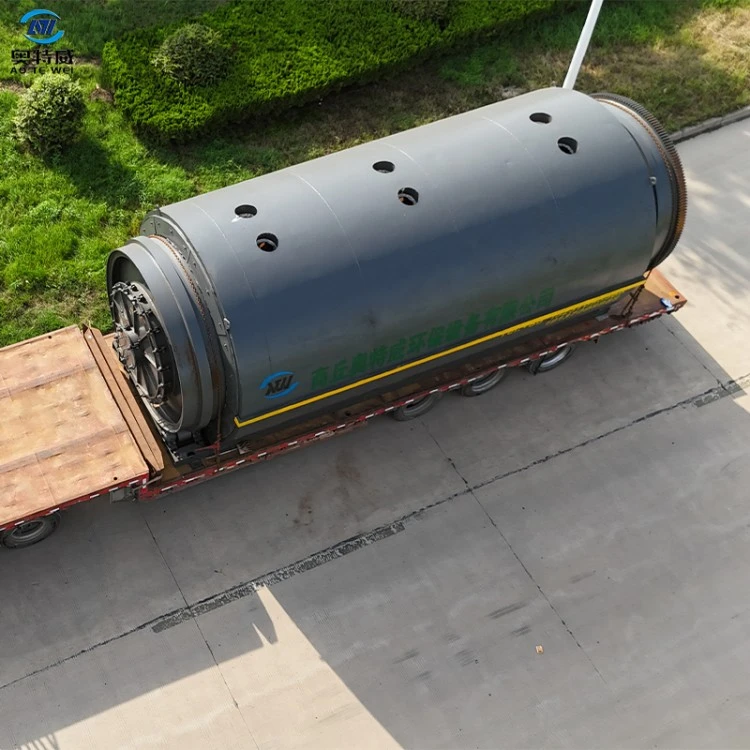

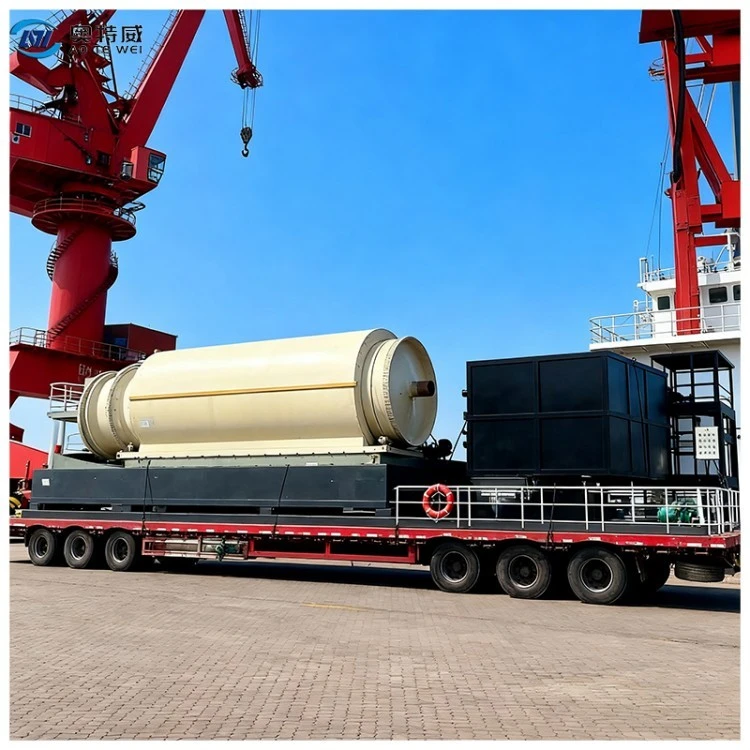

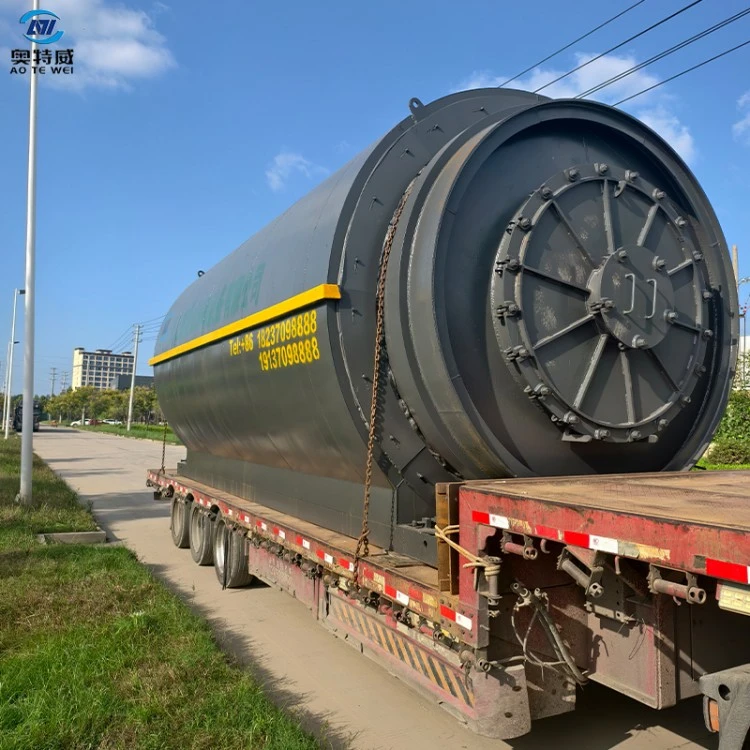

Packing & Shipping
The Waste Tyre Pyrolysis Machine is modular industrial equipment shipped in split bare-metal packages. Rotary pyrolysis reactor, variable-frequency drive assembly, modular oil-gas-processing modules, external slag-discharge mechanism and electric-control-instrument system are transported separately. Protective blind plates are fitted for all flange interfaces, and thread positions are coated with anti-rust grease.
Motors, instrument control cabinets and sensors are packed in waterproof wooden cases. Sealing packings, gaskets, wearing spare parts and special tools are individually packed in wooden crates. Main-equipment surfaces are coated with anti-rust primer and industrial weather-resistant topcoat.
Standard models can be fully loaded into 40HQ containers. Specially customized enlarged-size models are delivered by bulk carrier. Lead-time for standard configuration: 45 days upon receipt of advance payment; 70 days for customized versions with additional deep oil-gas-purification modules. Trade terms including EXW, FOB and CIF are supported. Packing lists, equipment dimension-and-weight sheets, modular-installation sketches and simplified civil-engineering reference drawings can be provided to support overseas customers' customs clearance, plant construction and on-site assembly.
FAQ
Q1: Will variable frequency speed adjustment affect equipment service life?
A: The drive adopts variable frequency heavy duty reducer specially adapted for variable speed working conditions. Service life will not be shortened under normal standardized operation. Long term over load high speed running is not recommended.
Q2: Is later stage installation of modular oil gas processing modules troublesome?
A: The equipment reserves standard butt weld flange interfaces. Later addition of spray or desulfurization modules only requires pipeline connection without modification of the pyrolysis main unit, resulting in simple on site assembly work.
Q3: Does the external slag discharge mechanism require extra cooling water supply?
A: Circulating cooling water is required to cool high temperature carbon black. The circulating water system can be shared with the condensation unit; no independent water circulation system needs to be added.
Q4: How frequently shall dual sealing components be replaced?
A: Under normal stable production conditions, graphite packing shall be inspected and replaced every 6 8 months; end cover high temperature resistant gaskets every 3 4 months. One set of backup sealing accessories is delivered together with the equipment.
Q5: Is later stage maintenance of multiple monitoring meters difficult?
A: General purpose industrial meters are adopted with widely available spare parts on the market for quick replacement upon damage. Matching meter spare parts can also be supplied by us.
Client References
Domestic cooperation covers tyre-recycling enterprises, rubber-processing factories and county-level environmental-protection pilot projects across multiple provinces. We have served dozens of medium-and-small-scale tyre-resource-recovery customers, including start-up entrepreneurs and self-use supporting projects for rubber-goods plants.
Overseas-market equipment has been exported to Southeast Asia, Africa, Central Asia and other regions, serving local individual recyclers and small-scale solid-waste investors. Multiple overseas container-based modular projects have been delivered. Real-site reference photos of selected overseas projects are available.
We can arrange visits to nearby similar operating client sites for interested parties subject to prior communication and coordination, allowing customers to observe actual equipment production and operation on-site.
