Products Description

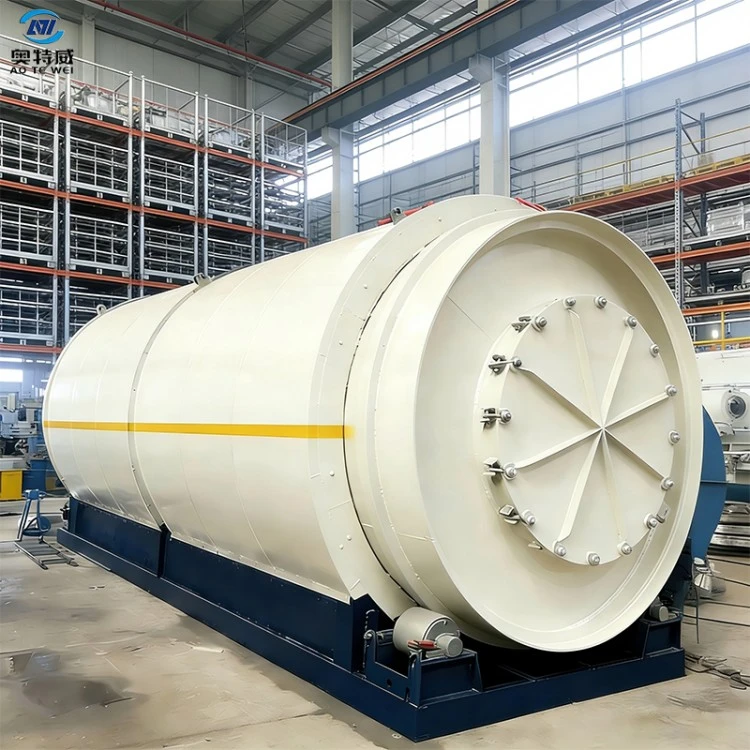

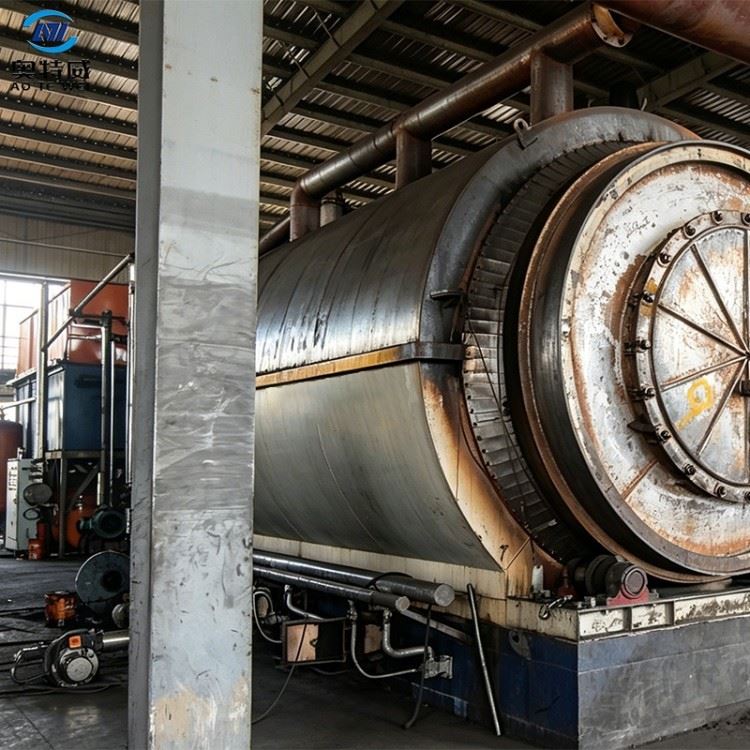

Small Scale Plastic Pyrolysis Plant
Small Scale Plastic Pyrolysis Plant is a skid-mounted integrated oxygen-free pyrolysis complete unit developed for small-capacity requirements with 1-3-5 tons per day processing capacity. It mainly consists of compact horizontal rotary pyrolysis reactor (optional specifications), oil-gas condensing & recovery system, carbon black collector, tail-gas treatment unit and electric control system. Taking waste plastics such as PE, PP, PS and ABS as raw materials, it produces plastic fuel oil, combustible gas and small amount of carbon residue under atmospheric-pressure, oxygen-free and high-temperature conditions. With total weight of 10-25 tons, the whole unit can be shipped inside container. Featured by low investment, small footprint and fast commissioning, it is suitable for village-level solid-waste treatment, start-up recycling stations, pilot demonstration projects and overseas small-scale resource-recovery projects.
Price Note: This is a skid-mounted small-capacity complete set. Final price depends on batch capacity (1/3/5 tons), condensing unit and environmental-protection configuration grade. Reference starting price for standard set: USD 16 500 / set, excluding ocean freight, civil foundation, on-site positioning and commissioning. Itemized quotation is available upon request.
| Technical Parameter of the Pyrolysis plant | |||
| 1 | Suitable Raw Materials | Rubber/Plastic Products etc | Rubber/Plastic Products etc |
| 2 | Structure | Horizontal Rotation Type | Horizontal Rotation Type |
| 3 | Reactor Size | φ2600×6600mm φ2800×8000mm φ3000×8800mm |
φ1500×2000mm φ1800×4000mm φ2000×600mm |
| 4 | Capacity for One Batch | 8-10Mt; 12-15Mt; 18-20Mt | 1Mt; 3Mt; 5Mt |
| 5 | Oil Yield from Tyres | 38%~45% | 38%~45% |
| 6 | Work Pressure | Normal Pressure | Normal Pressure |
| 7 | Reactor Rotation Speed | 0.4R/M | 0.4R/M |
| 8 | Fuels Choice | Coal, Wood, Gas, Oil | Coal, Wood, Gas, Oil |
| 9 | Power | 15~22kw/h | 8~15kw/h |
| 10 | Cooling Method | Cycling Water | Cycling Water |
| 11 | Type of Drive | External Annular Gear | External Annular Gear |
| 12 | Heating Method | Direct Heating | Direct Heating |
| 13 | Type of Installation | Without Foundation | With Foundation / Integrated Base |
| 14 | Noise dB (A) | ≤ 85 | ≤ 85 |
| 15 | Operating Mode | Intermittent Operation | Intermittent Operation |
| 16 | Total Weight (MT) | 25~50 | 10~25 |
Features
① Integrated skid-mounted structure with pre-assembled compact reactor. The whole plant can be transported in container. Only utility pipeline connection is required on-site, no extensive on-site piping and welding work.
② Compact horizontal rotary reactor driven by external ring gear for stable low-speed rotation. Even material heating to adapt to molten plastic feedstock.
③ Direct-fired heating plus circulating-water condensation. Fast temperature rise and simple structure. System is simplified for small-scale unit to lower maintenance complexity and fault points.
④ Anti-melting feeding structure for plastics. It avoids blockage when processing thin-wall materials such as plastic films and woven bags, compatible with mixed plastic raw materials.
⑤ Intermittent operation: coke cleaning and material replacement after each batch oil output. Flexible equipment utilization to fit small-batch & multi-batch production rhythm.
⑥ Low-power drive with power consumption of only 8-15kW/h. Self-produced combustible gas is recycled for heating to cut both external fuel and power consumption.
Advantages
① Low initial investment. The 1-3-5 tons small-capacity complete unit has low entry threshold, which is cost-effective for individuals or start-up teams entering waste-plastic recycling industry.
② Small footprint. The skid-mounted compact reactor can run on a site of several hundred square meters, ideal for space-limited projects in villages, communities or industrial parks.
③ Container-transportable whole unit for convenient cross-ocean shipment and relocation. Fast deployment and flexible relocation for overseas small-scale projects.
④ Simple operation. Intermittent small-volume process requires minimal operator skills. Operators can get qualified after brief training without high-level technical team on duty.
⑤ Fast return-on-investment. Trial production can start right after hookup. Waste plastics can be quickly converted into marketable fuel oil to shorten payback period.
⑥ Flexible expandability. Additional small units can be paralleled to raise total capacity. Shredder and distillation modules can be connected later for process upgrading.
Application Scenarios
- - Village / community solid-waste treatment site: Local disposal of waste plastic packaging to produce fuel oil for local consumption.
- - Start-up plastic recycling station: Launch waste-plastic-to-fuel-oil business with limited capital.
- - Pilot demonstration project: Solid-waste pyrolysis test site to verify oil yield performance of local plastic feedstock. - Supporting facility for plastic pelletizing plant: Treat pelletizing residues and off-spec plastic pellets.
Packing & Shipping
Packing:
Shock-proof and moisture-resistant wooden cases are adopted for precision components.
Shipping:

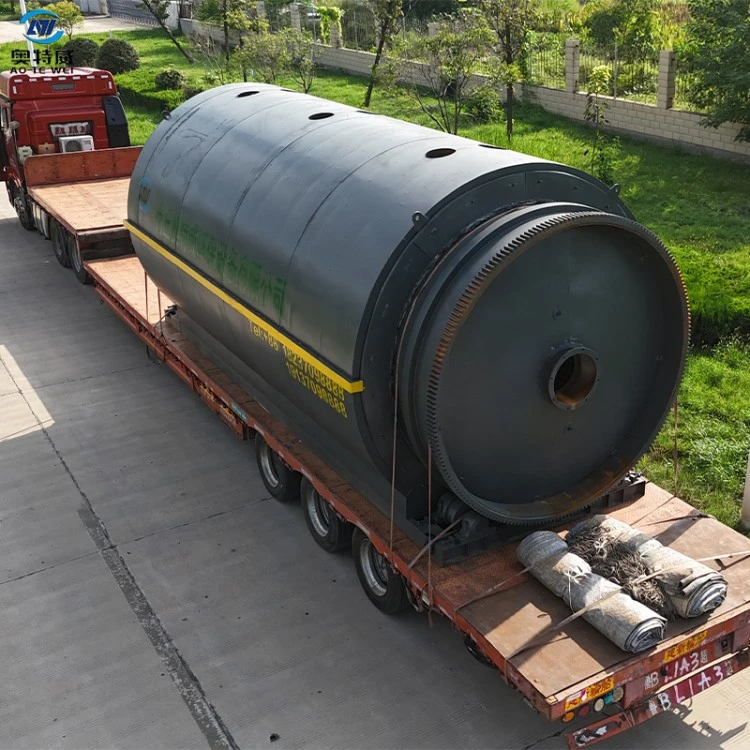

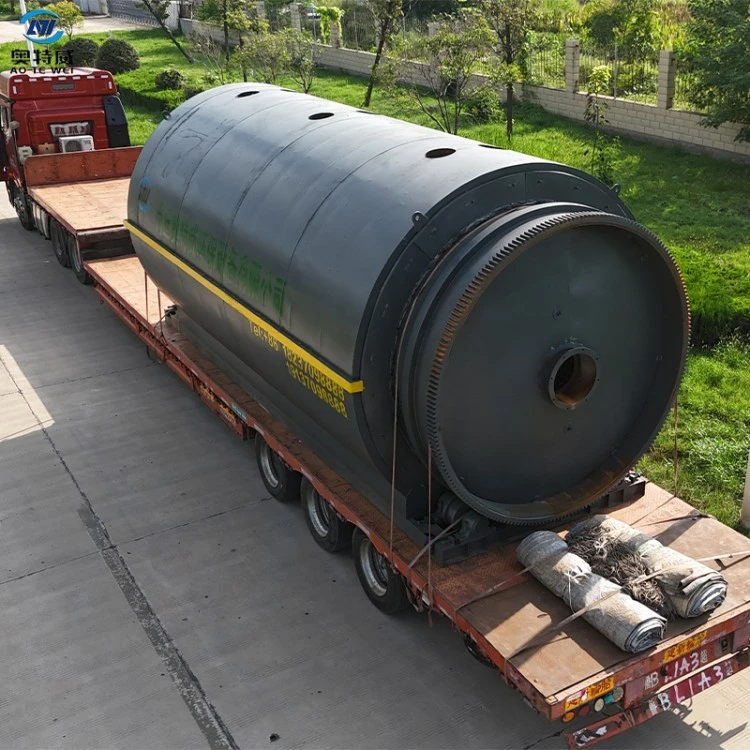

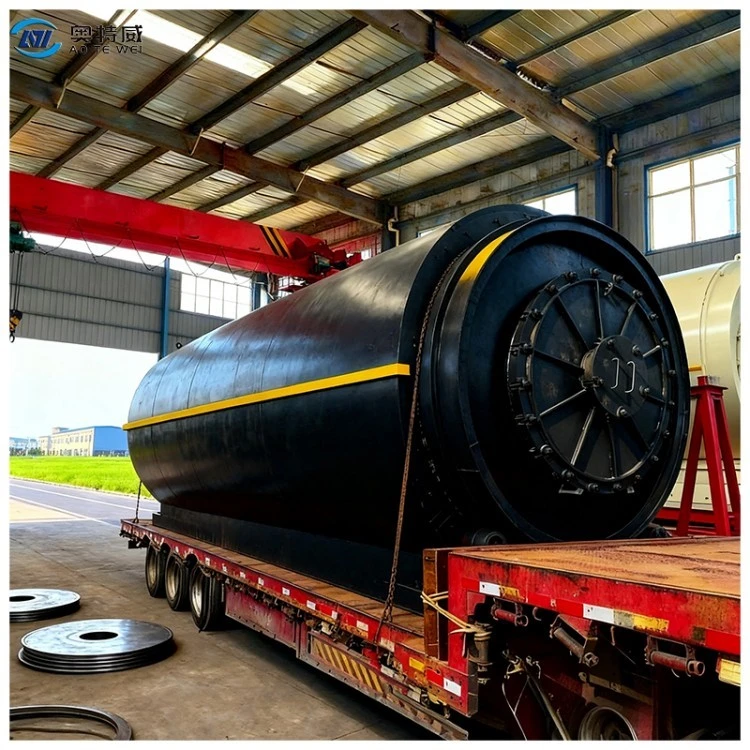

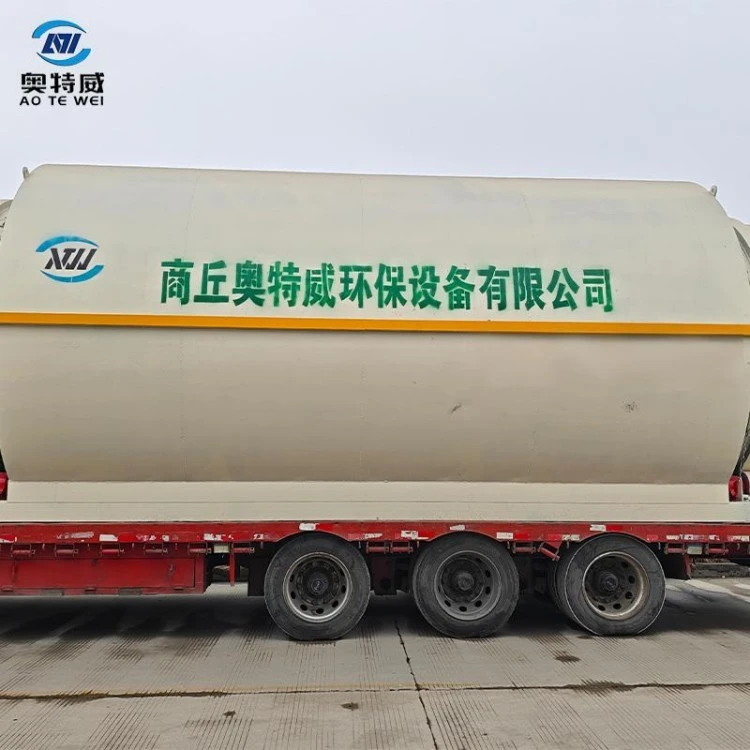

Small-scale complete skid-mounted units can be fully loaded into 40HQ containers for sea transport. Oversized components are delivered by break-bulk vessel. Heavy-duty flat-bed trucks transport goods to port for inland transit.
Lead Time:
45-75 working days upon deposit receipt. Lead time will be extended for customized expanded-capacity or high-grade environmental-protection configurations. Pre-commissioning and packing photos & videos will be provided for customer confirmation before shipment.
FAQ
Q1: What is the daily processing capacity of Small Scale Plastic Pyrolysis Plant?
A: Three standard batch sizes are available: 1 ton, 3 tons and 5 tons. Customers can select corresponding reactor volume according to local plastic supply volume.
Q2: What is the approximate oil yield of small scale plastic pyrolysis plant?
A: Oil yield of PE and PP can reach 80 85%; PS gives even higher yield. Mixed plastics will deliver lower oil yield. Pilot test with customer supplied samples can provide accurate data.
Q3: Can this unit be transported fully inside a container?
A: Yes. Reinforced small scale skid mounted complete unit can be loaded into 40HQ container for sea shipment, which is widely adopted for overseas small size projects.
Q4: Plastics tend to melt and form coke. Will the small size plant suffer from material blockage?
A: Anti clogging feeding and internal structures are optimized for plastic melting characteristics. Stable production can be achieved with regular coke cleaning following operating procedures.
Q5: What site conditions and supporting utilities are required?
A: A hardened anti seepage ground of several hundred square meters is sufficient. Circulating cooling water and industrial power supply are required; large scale civil construction is not needed.
