Products Description

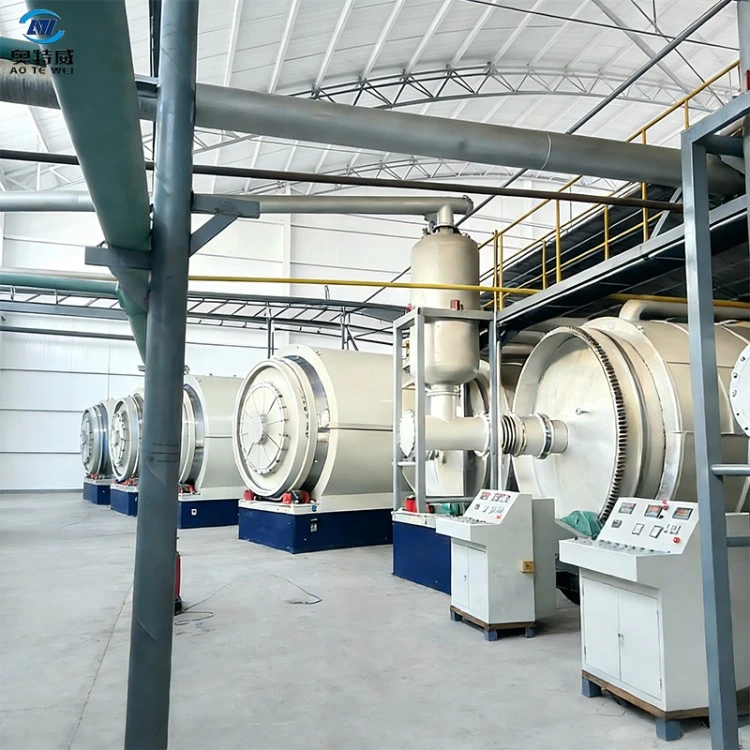

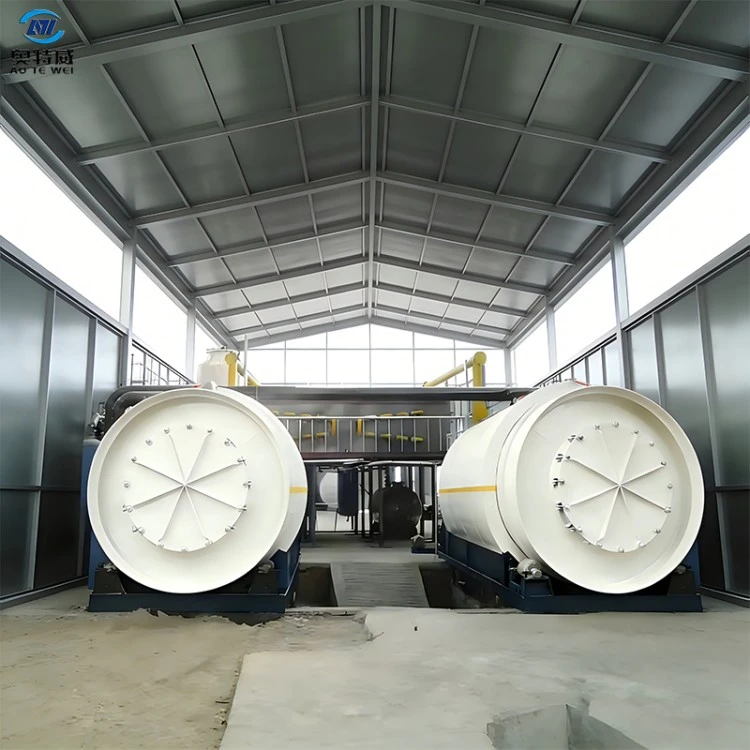

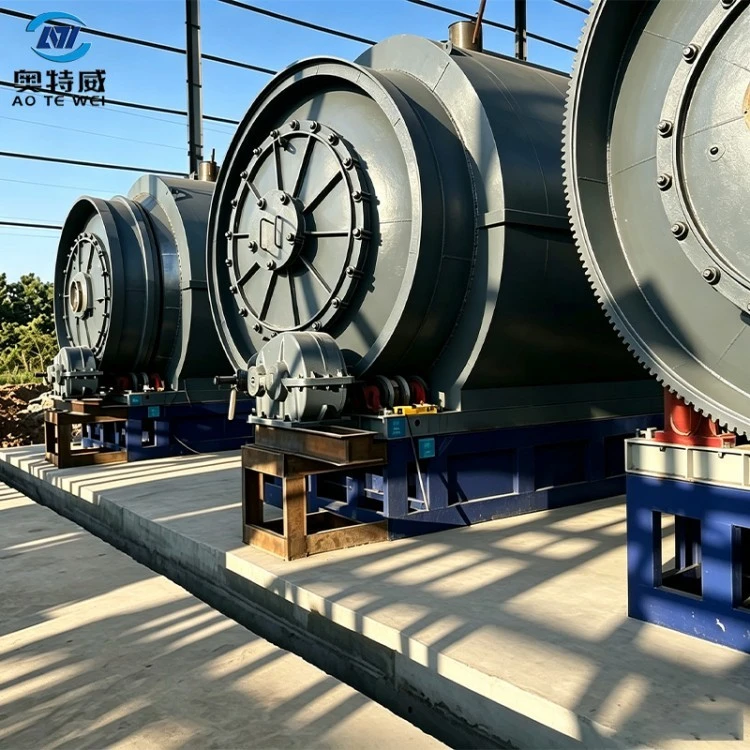

Waste Rubber Pyrolysis Plant
Waste Rubber Pyrolysis Plant is an intermittent pyrolysis equipment developed by Shangqiu Aotewei Environmental Protection Equipment Co., Ltd. for resource-oriented treatment of various waste rubber wastes. It can process multiple rubber-containing raw materials including waste tyres, rubber hoses, conveyor belts, sealing parts, rubber shoes, latex products and rubber scraps, with single-batch capacity ranging from 5 tons to 15 tons. Adopting horizontal rotating reactor together with multi-stage condensation technology, the plant thermally cracks waste rubber into fuel oil, carbon black and steel wire under oxygen-free conditions. It helps rubber product manufacturers, recycling enterprises and environmental-protection operators convert waste rubber into saleable industrial raw materials to realize waste reduction, resource recovery and profitable operation.
| Technical Parameter of the Pyrolysis plant | |||
| 1 | Suitable Raw Materials | Rubber/Plastic Products etc | Rubber/Plastic Products etc |
| 2 | Structure | Horizontal Rotation Type | Horizontal Rotation Type |
| 3 | Reactor Size | φ2600×6600mm φ2800×8000mm φ3000×8800mm |
φ1500×2000mm φ1800×4000mm φ2000×600mm |
| 4 | Capacity for One Batch | 8-10Mt; 12-15Mt; 18-20Mt | 1Mt; 3Mt; 5Mt |
| 5 | Oil Yield from Tyres | 38%~45% | 38%~45% |
| 6 | Work Pressure | Normal Pressure | Normal Pressure |
| 7 | Reactor Rotation Speed | 0.4R/M | 0.4R/M |
| 8 | Fuels Choice | Coal, Wood, Gas, Oil | Coal, Wood, Gas, Oil |
| 9 | Power | 15~22kw/h | 8~15kw/h |
| 10 | Cooling Method | Cycling Water | Cycling Water |
| 11 | Type of Drive | External Annular Gear | External Annular Gear |
| 12 | Heating Method | Direct Heating | Direct Heating |
| 13 | Type of Installation | Without Foundation | With Foundation / Integrated Base |
| 14 | Noise dB (A) | ≤ 85 | ≤ 85 |
| 15 | Operating Mode | Intermittent Operation | Intermittent Operation |
| 16 | Total Weight (MT) | 25~50 | 10~25 |
Features
Multi-raw-material compatibility for mixed feeding:
The reactor is designed to adapt to waste rubber in various forms. Whole tyres, rubber hoses, adhesive tapes, rubber shoes and factory scraps can be fed directly or after simple cutting. It supports co-pyrolysis of diverse rubber wastes without strict sorting, lowering pre-treatment costs of raw materials.
Multi-stage circulating-water condensation for high oil-gas recovery rate:
Pyrolysis oil-gas goes through multi-stage condensation in large-capacity cooling water tanks with double-inlet & double-outlet hot-dip galvanized heat-exchange tubes. It achieves sufficient liquefaction with minimal loss of light-weight fractions, delivering high fuel-oil recovery as well as stable oil color and calorific value.
Full recycling of combustible gas for high fuel self-sufficiency:
Non-condensable combustible gas (methane, ethane, propane, etc.) generated from pyrolysis is buffered by steam drum, collected via gas storage bag and fully sent back to combustion chamber as auxiliary fuel. It can replace 20%-30% of purchased fuel and greatly cut operating costs.
316L stainless-steel fish-scale sealing to keep workshop odour-free:
Double-layer fish-shape fire baffles plus 316L stainless-steel sealing structure are applied on both ends of furnace body. Its air-tightness outperforms ordinary cast-iron sealing rings. No smoke or unpleasant odour leaks during operation, improving workshop working conditions and meeting environmental-protection inspection requirements.
Normal-pressure / slight negative-pressure operation for intrinsic safety:
The system runs under normal pressure or slight negative pressure without internal pressure load. Equipped with explosion-proof motor, explosion-proof reducer and emergency vent valve, it eliminates over-pressure explosion risks by design. Operators do not need pressure-vessel operation qualifications.
Advantages
20+-year industry experience with proven mature technology:
Split-type supporting rollers for safer & time-saving maintenance: High-end DN351 split-type supporting rollers adopt built-in dust-proof bearings which only require grease replenishment every 2-3 months. It avoids scald hazards caused by high-temperature greasing after each batch for standard-type units, reduces downtime for maintenance and lowers long-term operating costs.
Rich delivery experience with worldwide exports:
Products have been exported to dozens of countries and regions including Russia, Nigeria, the United States, Haiti, Burkina Faso, Guinea, Myanmar, Iraq, Mongolia, Oman, South Africa, the Philippines, Benin and Botswana. Our team is well-versed in destination-port customs-clearance requirements, certification documents and packaging specifications.
Full-range services from plant construction to profit generation:
We deliver one-stop services covering raw-material evaluation, plant-layout planning, foundation drawings, installation-commissioning and operator training as well as after-sales maintenance. On-site engineer dispatch or remote video guidance are available to guarantee smooth commissioning and stable profitability for clients.
Stocked wearing parts with 48-hour shipment:
Wearing parts such as supporting rollers, girth gears, sealing components, ball valves and liquid-level gauges are kept in safety stock. Orders for spare parts can be shipped within 48 hours to minimize production downtime caused by equipment failures.
Optional distillation & refining unit to extend industrial chain: Recovered fuel oil can be sold directly. It can also be further processed into diesel oil by matching Aotewei distillation & refining equipment to raise product added-value and help customers build a complete industrial chain from waste rubber to finished oil products.
Application Scenarios
- Internal waste disposal for rubber-goods manufacturers: Rubber-hose factories, conveyor-belt producers, sealing-part plants, rubber-shoe factories and other rubber enterprises generate large volumes of scraps, defective products and mould-rubber wastes during production. Building an in-house pyrolysis workshop enables internal waste consumption, saves third-party hazardous-waste disposal fees, and the yielded fuel oil can supply on-site boilers.
- Waste-rubber disposal for latex-product manufacturers: Producers of latex gloves, latex mattresses, latex pillows and similar goods generate waste latex and scraps featuring high rubber content and good oil yield. Matching pyrolysis equipment converts these wastes into high-quality fuel oil with remarkable economic benefits.
- Disposal of discarded conveyor belts from mines: Mines, harbours, cement plants and other heavy-industry sites consume massive conveyor belts. Retired large-size conveyor belts are bulky and hard-to-dispose. Pyrolysis plant breaks them down into fuel oil and steel wire and solves solid-waste stock-piling troubles.
- Waste treatment for shoe-manufacturing bases: Sneaker, rubber-shoe and rain-boot manufacturing bases produce large quantities of waste rubber soles and scraps. Centralized pyrolysis facilities consume industrial wastes and supply clean energy for local communities.
- EPC supporting solution for environmental-engineering contractors: Engineering companies undertaking EPC projects for industrial-park solid-waste treatment and hazardous-waste disposal centres can adopt waste rubber pyrolysis plant as a solid-waste-recycling process package within overall proposals. Aotewei provides technical support and equipment supply.
Packing & Shipping
The waste rubber pyrolysis plant is shipped in split bare-metal condition covered with tarpaulin. All flange openings and valve interfaces are sealed with plastic blind plates; motors and electric control cabinets are wrapped with waterproof film. The equipment surface is coated with anti-rust primer and industrial topcoat.
Shipment is made via 40HQ (40-foot high-cube) container vessel.
Lead-time for standard configuration is 45 days upon receipt of advance payment; 60 days for high-end version or special customizations.
FAQ
Q1: What is the difference between waste rubber pyrolysis plant and waste tyre pyrolysis plant?
A: They share the same core principle. Nevertheless, waste rubber pyrolysis plant is optimized in feeding port dimension, internal furnace spiral structure and anti winding design. It handles various rubber wastes such as rubber hoses, adhesive tapes, rubber shoes and latex products with stronger mixed feeding capacity. If raw materials are mainly tyres, customers may select tyre specialized model. For diversified raw materials with big variance in rubber content, the general purpose waste rubber model is recommended.
Q2: Do all kinds of waste rubber deliver the same oil yield?
A: No. Raw materials with high natural rubber content (e.g. latex scraps, unvulcanized rubber) can reach oil yield above 45%. Common waste tyres achieve 38% 45%. Products filled with large amount of fillers (rubber shoe soles, low grade rubber hoses) reach around 30% 38%. We can evaluate based on customer provided raw material samples and give more accurate oil yield expectations.
Q3: To what size should waste rubber be shredded?
A: Whole tyres and large rubber goods are suggested to be cut into blocks of 30 50 cm to improve charging density and pyrolysis uniformity. Small scraps and rubber crumbs can be fed directly. We can supply tyre cutters, rubber shredders and hydraulic feeders as optional accessories to match different raw material forms.
Q4: Will unpleasant odour be generated during processing?
A: The plant is equipped with combustible gas recycling system and flue gas dust removal unit. Under normal operation, furnace keeps well sealed with no obvious odour leakage. Non condensable gas is fully sent into combustion chamber for high temperature incineration to eliminate organic waste gas. For customers with extremely strict environmental protection requirements, activated carbon adsorption and desulfurization devices are available as optional add ons.
Q5: What is the quality of output carbon black and how much can it be sold for?
A: Pyrolytic carbon black from waste rubber features iodine adsorption value of approx. 400 600 mg/g. It can be used as filler for rubber products, cement additive, pigment for ink and coatings. It can also be further ground into fine carbon black. Selling prices vary by region and quality. Bulk crude carbon black is generally priced at several hundred to more than one thousand RMB per ton. Value rises greatly after fine processing.
Company Profile & Manufacturing
Shangqiu Aotewei Environmental Protection Equipment Co., Ltd. is located in Shangqiu City, Henan Province. It is an environmental-protection equipment enterprise specializing in R&D, manufacturing and export of pyrolysis recycling equipment for waste tyres, waste plastics and waste rubber.
Our factory owns modern standardized workshops fully equipped with heavy-duty plate-rolling machines, automatic submerged-arc welders, CNC flame-cutting machines, overhead-crane hoisting systems and non-destructive-testing instruments, with annual output capacity of over 100 sets of various pyrolysis plants.
Our core team accumulates more than 20 years of foreign-trade and equipment-manufacturing experience. Our products have been exported to dozens of countries and regions including Russia, Nigeria, the United States, Haiti, Burkina Faso, Guinea, Myanmar, Iraq, Mongolia, Oman, South Africa, the Philippines, Benin, Botswana. We have built stable customer groups and sound brand reputation across the global waste-rubber pyrolysis sector. Beyond supplying equipment, we deliver complete one-stop solutions covering project feasibility study, raw-material assessment, process design, plant-layout planning, installation-commissioning and operational training.
In terms of production quality-control, Aotewei strictly implements quality-management-system standards. Weld seams of every reactor undergo ultrasonic non-destructive testing. Each complete unit passes hydrostatic-pressure test and trial-run before shipment to guarantee welding integrity and structural safety. Holding independent import-&-export qualifications, our company can independently finish customs declaration, commodity inspection, certificate-of-origin application, freight booking and all other export-related procedures, providing overseas clients with efficient and reliable delivery services.
