Shangqiu Aotewei Environmental Protection Equipment Co., Ltd. is one of the leading manufacturers and suppliers of plastic pyrolysis machine in China. We are committed to providing high quality customized products with competitive price. If you're going to buy ISO certified plastic pyrolysis machine, welcome to get quotation from our factory.
Products Description

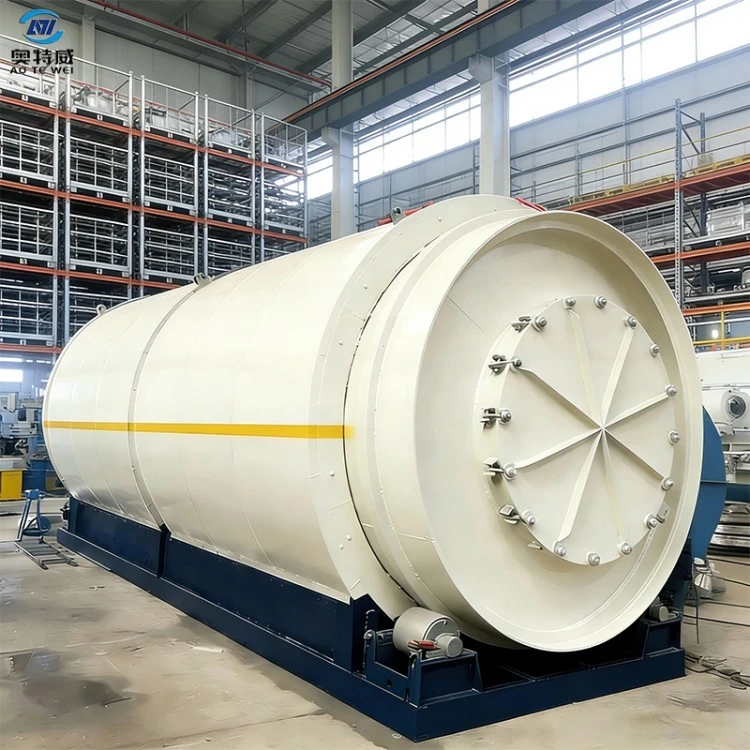

High-Efficiency Waste Plastic Pyrolysis Machine-Convert Waste Plastic into Fuel Oil (Batch / Semi-continuous Type) (Alternative product title for layout 2: Industrial-Grade Plastic-to-Oil Pyrolysis Plant for Sustainable Solid-Waste Disposal)
| Technical Parameter of the Pyrolysis plant | |||
| 1 | Suitable Raw Materials | Rubber/Plastic Products etc | Rubber/Plastic Products etc |
| 2 | Structure | Horizontal Rotation Type | Horizontal Rotation Type |
| 3 | Reactor Size | φ2600×6600mm φ2800×8000mm φ3000×8800mm |
φ1500×2000mm φ1800×4000mm φ2000×600mm |
| 4 | Capacity for One Batch | 8-10Mt; 12-15Mt; 18-20Mt | 1Mt; 3Mt; 5Mt |
| 5 | Oil Yield from Tyres | 38%~45% | 38%~45% |
| 6 | Work Pressure | Normal Pressure | Normal Pressure |
| 7 | Reactor Rotation Speed | 0.4R/M | 0.4R/M |
| 8 | Fuels Choice | Coal, Wood, Gas, Oil | Coal, Wood, Gas, Oil |
| 9 | Power | 15~22kw/h | 8~15kw/h |
| 10 | Cooling Method | Cycling Water | Cycling Water |
| 11 | Type of Drive | External Annular Gear | External Annular Gear |
| 12 | Heating Method | Direct Heating | Direct Heating |
| 13 | Type of Installation | Without Foundation | With Foundation / Integrated Base |
| 14 | Noise dB (A) | ≤ 85 | ≤ 85 |
| 15 | Operating Mode | Intermittent Operation | Intermittent Operation |
| 16 | Total Weight (MT) | 25~50 | 10~25 |
Features
① Premium-grade Material Construction:
The main reactor is made of 20-mm-thick Q345R boiler-grade steel plate sourced from top-tier steel mills. It undergoes precise normalizing and tempering treatment to deliver outstanding high-temperature corrosion resistance and structural-stress-bearing performance.
② Advanced Zirconium-Aluminum Insulation Layer:
We take the lead in the industry to adopt 20-cm-thick zirconium-aluminum modular insulation for furnace chambers. Compared with traditional refractory cement, it achieves superior thermal insulation performance, cutting heating time by 1.5-2 hours and cooling time by 3-4 hours.
③ Optimized Internal Spiral Assembly:
The furnace is fitted with an angle-steel-reinforced double-helix internal spiral with 1-meter pitch. This structure enables fast ash discharge and prevents reactor deformation under high-temperature operation or during steel-wire extraction.
④ Upgraded Drive & Transmission System:
Equipped with ZQ650 heavy-duty reducer and 11-kW variable-frequency explosion-proof motor. It outputs stable torque with a far-lower failure rate than the widely-adopted 7.5-kW transmission systems in the industry.
⑤ Eco-friendly Combustible-gas Recovery System:
Custom-built gas-storage bags (300-1000 m³ capacity) collect non-condensable combustible gas for fuel reuse. Two sets of equipment can save 480-680 kg of fuel oil per day.
Advantages
① High ROI & Excellent Production Efficiency
Benefiting from high-efficiency insulation and cooling systems, this plastic pyrolysis machine completes one full production cycle within 22-23 hours to realize one batch per day, while ordinary equipment requires 26-28 hours. An extra 4-5 batches can be processed every month, bringing substantial profit growth.
② Lower Maintenance Expense
The split-type supporting roller with sealed shaft sleeve extends lubrication intervals from daily refilling to every 2-3 months, saving around USD 3,000 per year on maintenance labor and grease costs.
③ Superior Oil Quality The 336-cubic-meter cooling-water tank adopts 34 hot-dip galvanized heat-exchange tubes with double-inlet & double-outlet layout. It realizes fast condensation and produces oil with higher purity.
④ Prolonged Equipment Service Life
120-mm-wide 45# steel gear rings and steel belts replace conventional positioning ribs. The service life of key components is 3-4 times longer than ordinary versions and can sustain at least four cycles of reactor replacement.
⑤ Reliable Safety & Environmental Compliance
Every reactor undergoes mandatory ultrasonic flaw detection and air-pressure testing prior to delivery. The 304 / 316L stainless-steel desulfurization tower guarantees exhaust emissions that satisfy international environmental-protection standards.
Application Scenarios
- Municipal Solid Waste Treatment: Process mixed waste plastics sorted from urban waste to relieve landfill burden.
- Industrial Scrap Recycling: Suitable for factories generating large quantities of PE, PP, PS and other plastic scraps.
- Industrial Fuel Production: The yielded fuel oil can be directly supplied to steel mills and cement plants or used as heating fuel for heavy-duty machinery.
- Environmental Remediation Projects: Convert accumulated waste plastics into valuable resources in eco-industrial parks and government-led green-energy initiatives.

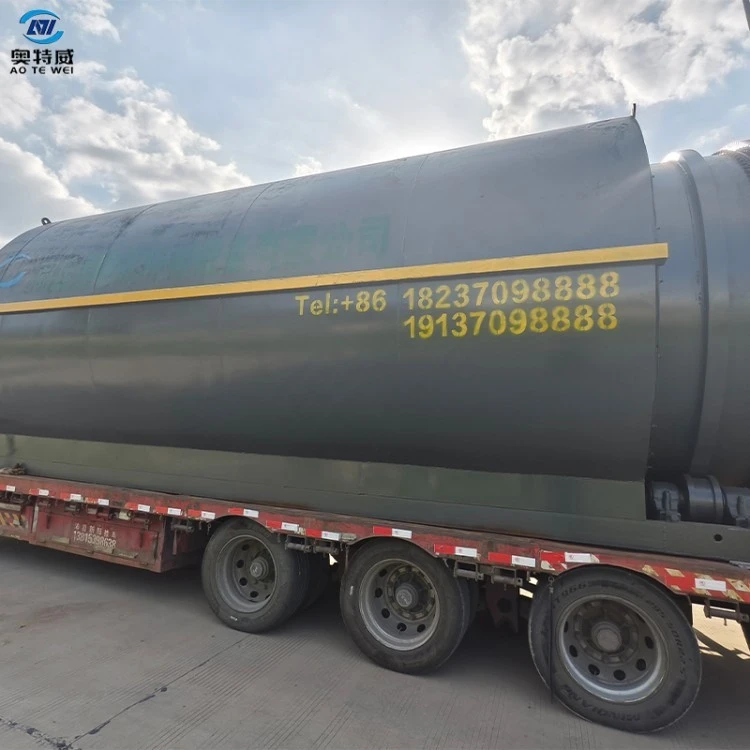

Packing & Shipping
Sea-worthy Packaging:
All large-size structural components are secured with steel wires and reinforced supports to avoid shifting and collision during transit.
Corrosion-resistance Protection:
Exposed metal surfaces are coated with anti-rust paint. Delicate electric components are packed in moisture-proof wooden crates.
Logistics Weight Reduction:
Compared with furnaces lined with refractory cement, zirconium-aluminum modules cut total equipment weight by 3-4 tons, greatly reducing international sea-freight costs.
Standard Container Loading:
Components are optimized to make full use of inner space of 40FR / 40HQ shipping containers.
FAQ
Q: What is the oil yield of waste plastics?
A: Oil yield varies with feedstock. Pure PE/PP/PS plastics can reach 80 90 % oil yield, whereas mixed plastics generally achieve 40 60 %.
Q: How is exhaust gas treated?
A: We supply complete desulfurization and dust removal systems. The desulfurization tower is constructed of 304 stainless steel, with 316L material for high temperature contact sections. It delivers a service life of 3 5 years and ensures clean exhaust discharge.
Q: Can the machine run continuously?
A: Batch type, semi continuous and fully continuous models are available. Our high end batch type version is optimized for near 24 hour cyclic operation.
Q: Is on site installation service available?
A: Free installation technical guidance is provided. Experienced engineers can be dispatched to customer sites for equipment erection and operator training.
Company Profile & Production Capacity
Shangqiu Aotewei Environmental Protection Equipment Co., Ltd. is a comprehensive leading enterprise specializing in R&D, design and manufacturing of solid-waste resource-recovery equipment. Located in Shangqiu, Henan Province, it owns a 20,000 m² production plant equipped with advanced welding robots, flaw-detection laboratories and 3D design & R&D centers.
Our projects have been implemented in more than 32 countries worldwide with over 10,000 completed cases. We are well-recognized for technological innovations within the pyrolysis-equipment sector. We hold multiple patents covering reactor upgrading, feeding systems and combustible-gas storage bags. Our team consists of 5 senior technicians and 8 specialized engineers, ensuring every plastic pyrolysis unit meets global clients' requirements for high safety, environmental compliance and profitable project operation. Adhering to the corporate philosophy of "Innovation, Quality, Service", we offer quality guarantees and lifelong technical support.
