Products Description

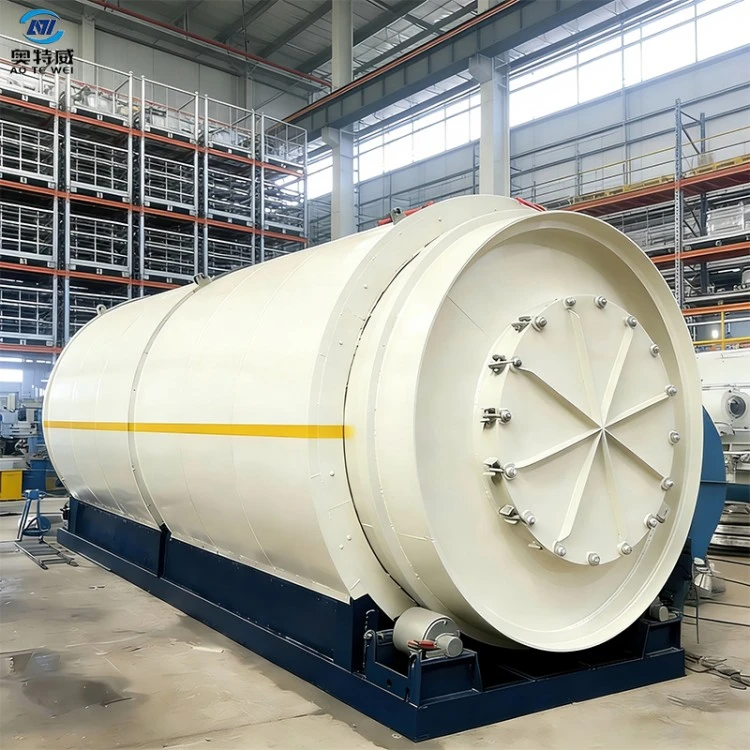

Second Hand Tyre Pyrolysis Plant

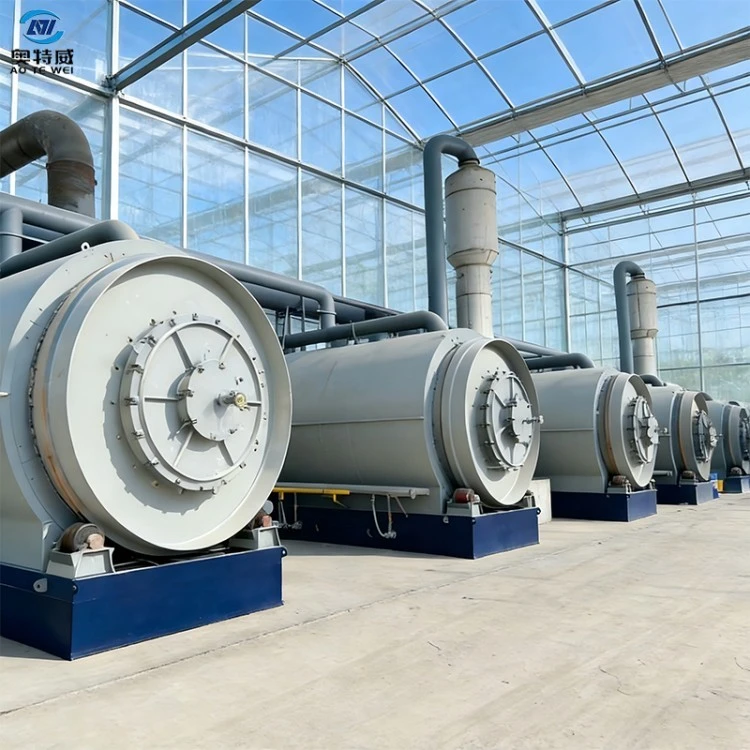

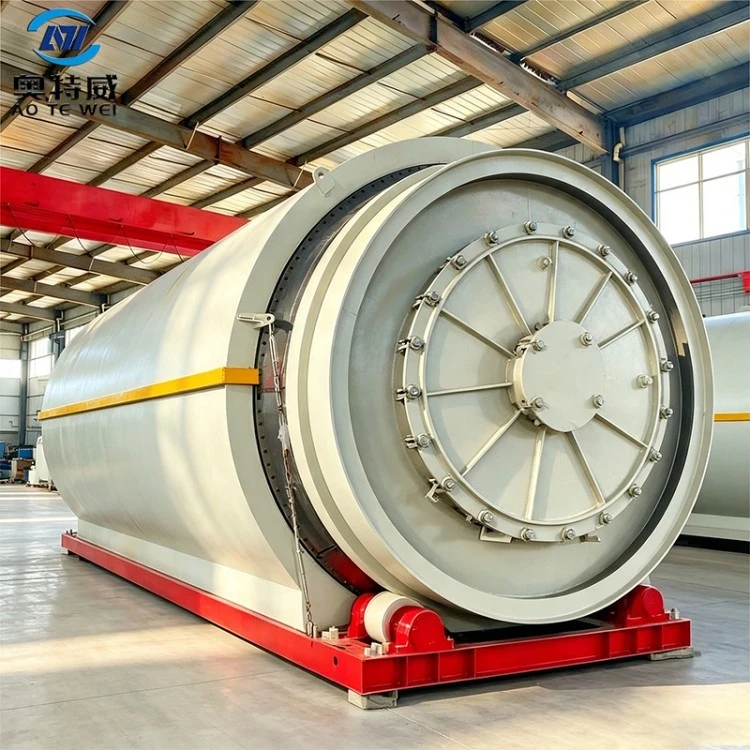

Second Hand Tyre Pyrolysis Plant is specially designed to process waste-used tyres. The complete set consists of pyrolysis reactor, oil-gas condensing & recovery unit, carbon black collector and tail-gas purification system. Taking various scrap second-hand tyres as raw materials, it performs pyrolysis under high-temperature oxygen-free conditions to produce fuel oil, steel wire and carbon black. Targeted at waste-tyre recycling projects with limited budgets, the whole plant has been inspected and commissioned for large-scale pyrolysis of scrap second-hand tyres.
Price Note: The final price depends on batch processing capacity, system completeness and environmental-protection grade. Reference starting price for standard set: USD 25 000 / set, excluding ocean freight, civil construction, on-site disassembly, reassembly and commissioning. Itemized quotation is available upon request.
| Technical Parameter of the Pyrolysis plant | |||
| 1 | Suitable Raw Materials | Rubber/Plastic Products etc | Rubber/Plastic Products etc |
| 2 | Structure | Horizontal Rotation Type | Horizontal Rotation Type |
| 3 | Reactor Size | φ2600×6600mm φ2800×8000mm φ3000×8800mm |
φ1500×2000mm φ1800×4000mm φ2000×600mm |
| 4 | Capacity for One Batch | 8-10Mt; 12-15Mt; 18-20Mt | 1Mt; 3Mt; 5Mt |
| 5 | Oil Yield from Tyres | 38%~45% | 38%~45% |
| 6 | Work Pressure | Normal Pressure | Normal Pressure |
| 7 | Reactor Rotation Speed | 0.4R/M | 0.4R/M |
| 8 | Fuels Choice | Coal, Wood, Gas, Oil | Coal, Wood, Gas, Oil |
| 9 | Power | 15~22kw/h | 8~15kw/h |
| 10 | Cooling Method | Cycling Water | Cycling Water |
| 11 | Type of Drive | External Annular Gear | External Annular Gear |
| 12 | Heating Method | Direct Heating | Direct Heating |
| 13 | Type of Installation | Without Foundation | With Foundation / Integrated Base |
| 14 | Noise dB (A) | ≤ 85 | ≤ 85 |
| 15 | Operating Mode | Intermittent Operation | Intermittent Operation |
| 16 | Total Weight (MT) | 25~50 | 10~25 |
Features
① Compatible with mixed scrap second-hand tyres, including car tyres, truck tyres and OTR tyres. Strict sorting of feedstock is not required.
② Reserved port for pre-feeding system. It can connect with external tyre shredder to feed large-size waste tyres and adapt to raw materials of different dimensions.
③ The whole system is inspected and calibrated. Temperature and pressure sensors are tested and adjusted, with operating parameters optimized for high-impurity second-hand tyre feedstock.
④ Internal condensing system is cleaned and overhauled to remove tar scaling, ensuring high oil-gas recovery efficiency when processing second-hand tyres.
⑤ Tail-gas treatment unit is maintained to handle complex flue gas generated from tyre pyrolysis and achieve stable purified gas discharge.
Advantages
① Tuned specifically for second-hand tyre working conditions, stable operation even with mixed, high-impurity raw materials.
② Low investment threshold. Compared with brand-new units, it greatly cuts procurement cost, ideal for start-up projects for second-hand tyre recycling.
③ Delivered after full commissioning with short lead-time. Fast monetization of waste tyres and shorter payback period.
④ Complete integrated system. Few extra auxiliary machines are needed. Production can start once water, power and gas pipelines are connected.
⑤ Expandable for future upgrading. Reserved interfaces allow connection to distillation equipment for further processing of crude tyre oil.
Application Scenarios
- - Medium & small-scale waste tyre recycling plants: Local treatment of collected scrap second-hand tyres.
- - Regional solid-waste processing workshops: Volume reduction of second-hand tyres, selling tyre oil, carbon black and steel wire.
- - Overseas small-to-medium startup projects: Low-cost pyrolysis solution for local stockpiled waste tyres.
- - Recycling traders: Supporting processing to convert collected second-hand tyres into high-value products.
Packing & Shipping
Packing:
Pyrolysis reactor is derusted and anti-corrosion treated, wrapped with heavy-duty waterproof tarpaulin. Heavy-duty modules for condensation, carbon-black collection and tail-gas treatment are bare-packed. Electric control cabinet, calibrated sensors and meters are packed in shock-proof moisture-resistant plywood crates. Seals, valves and wearing spare parts are sorted into export wooden cases and pallets. Documents supplied: Equipment inspection records, operation & maintenance manual, assembly drawings, packing list.
Shipping:

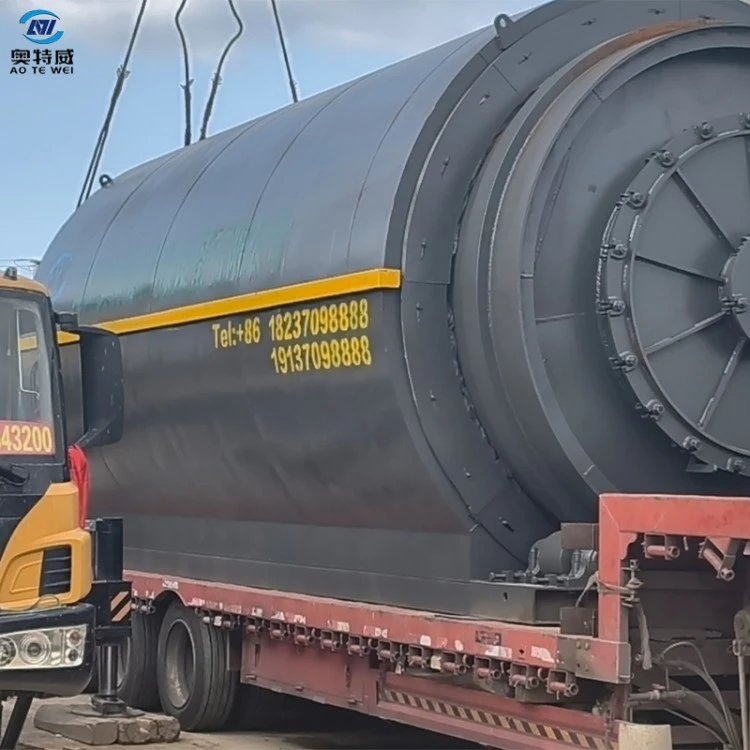

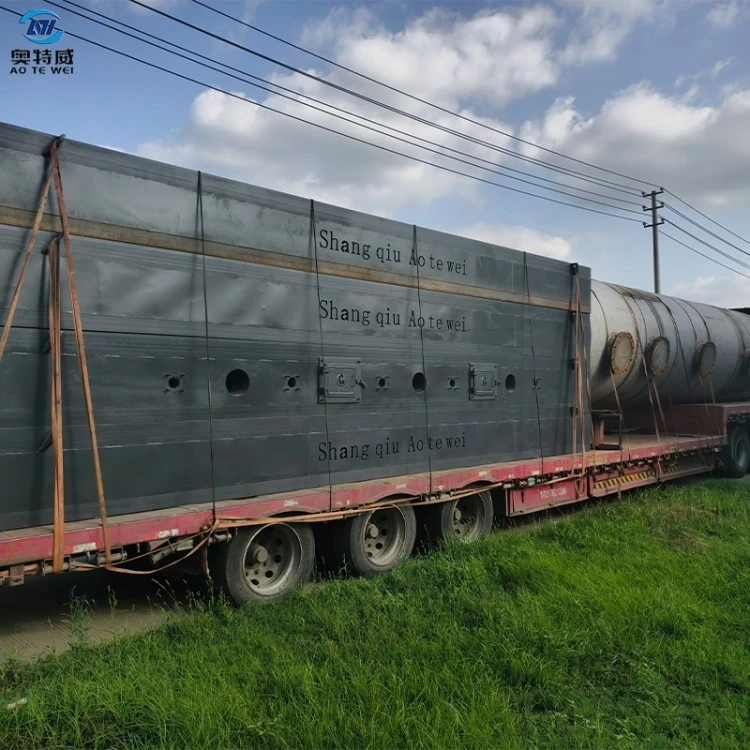

Standard-size modules loaded into 40HQ containers. Over-dimension reactor sections shipped by break-bulk vessel. Heavy-duty flat-bed trucks transport goods to port for inland transit.
Lead Time:
30-60 working days upon deposit receipt. Lead time will be extended for deep-modification & upgrading. Real-site inspection and test-run photos & videos will be provided for customer confirmation before shipment.
FAQ
Q1: What feedstock requirements for incoming second hand tyres?
A: Second Hand Tyre Pyrolysis Plant can directly process various scrap second hand tyres. Wheel hubs are suggested to be removed. Large OTR tyres are recommended to be shredded before feeding.
Q2: Will oil yield fluctuate sharply when processing mixed second hand tyres?
A: Parameters are optimized for mixed tyre feedstock. Minor yield fluctuation exists among different tyre types, while overall output remains stable.
Q3: Will pipelines get clogged easily due to many impurities in second hand tyres?
A: Internal scaling has been removed during overhaul with matched filter assemblies. Periodic routine maintenance can prevent pipeline blockage.
Q4: Can distillation equipment be added later to refine tyre oil?
A: Yes. Second Hand Tyre Pyrolysis Plant reserves oil gas output ports for later connection with distillation units to convert crude tyre oil into heavy fuel oil.
Q5: Does the standard package include tyre shredder and feeding device?
A: Shredder is not included in standard scope and is offered as optional module according to raw material conditions.
Q6: Is warranty service available?
A: Replaced overhauled spare parts are under warranty. The main reactor follows inspection report; it does not enjoy the same warranty term as brand new equipment.
Company Profile & Manufacturing
Our company manufactures brand-new pyrolysis plants and meanwhile provides inspection, overhaul and commissioning services for second-hand tyre pyrolysis units. We are well-experienced in pyrolysis conditions of mixed scrap tyres. Our full-range services cover equipment inspection, component overhaul, system tuning and complete-machine test-run, well adapted to mixed second-hand tyre feedstock.
Optional modules are available: tyre shredder & feeding system, upgraded tail-gas treatment and oil distillation. We supply overseas customers with assembly drawings, remote technical guidance and operator training. Multiple second-hand tyre pyrolysis plants have been exported worldwide for numerous waste-tyre recycling projects.
