Shangqiu Aotewei Environmental Protection Equipment Co., Ltd. is one of the leading manufacturers and suppliers of rubber pyrolysis machine in China. We are committed to providing high quality customized products with competitive price. If you're going to buy ISO certified rubber pyrolysis machine, welcome to get quotation from our factory.
Products Description
Rubber Pyrolysis Machine

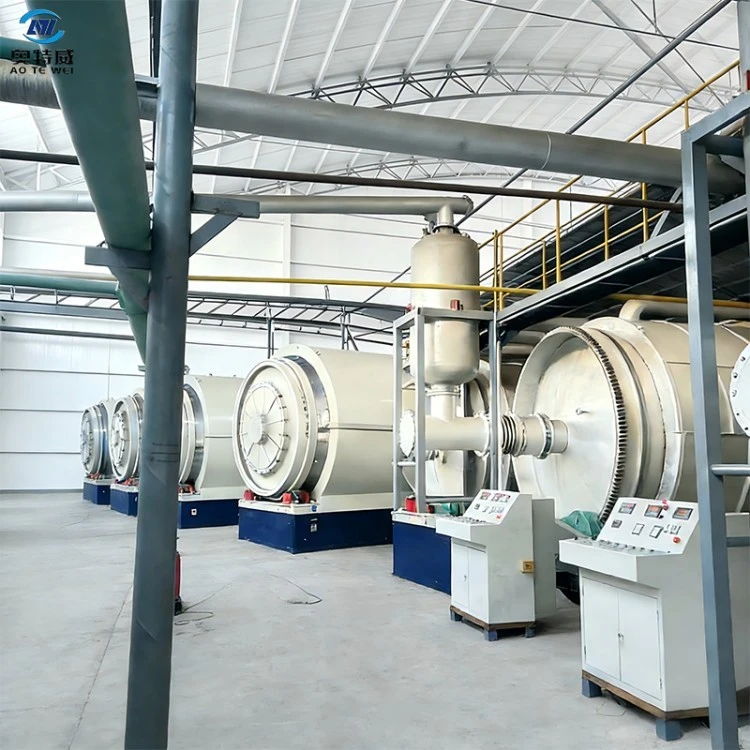

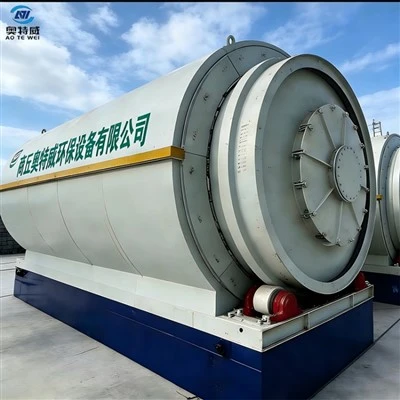

Rubber Pyrolysis Machine is an industrial batch-type oxygen-free pyrolysis turn-key system developed for waste rubber materials. It mainly processes waste tires, rubber scraps, rubber sealing rings, waste rubber hoses and other discarded rubber products. Under oxygen-free conditions, high-temperature pyrolysis produces fuel oil, steel wires and carbon black. The machine adopts special structural optimizations for material characteristics of rubber containing steel wires and carbon-black precipitation during rubber pyrolysis. It realizes harmless and resource-oriented recovery of waste rubber, and is suitable for tire recycling & dismantling plants, solid-waste disposal enterprises and rubber-waste treatment projects.
Price Note: This is custom-built industrial complete equipment. Final price depends on daily processing capacity, steel-wire discharging structure, carbon-black collection & dust-removal configuration and flue-gas treatment grade. Reference starting price for basic complete set: USD 15 000 / set, excluding ocean freight, civil-engineering works and on-site installation & commissioning. Itemized quotation can be offered according to customer's feedstock types and capacity requirements.
| Technical Parameter of the Pyrolysis plant | |||
| 1 | Suitable Raw Materials | Rubber/Plastic Products etc | Rubber/Plastic Products etc |
| 2 | Structure | Horizontal Rotation Type | Horizontal Rotation Type |
| 3 | Reactor Size | φ2600×6600mm φ2800×8000mm φ3000×8800mm |
φ1500×2000mm φ1800×4000mm φ2000×600mm |
| 4 | Capacity for One Batch | 8-10Mt; 12-15Mt; 18-20Mt | 1Mt; 3Mt; 5Mt |
| 5 | Oil Yield from Tyres | 38%~45% | 38%~45% |
| 6 | Work Pressure | Normal Pressure | Normal Pressure |
| 7 | Reactor Rotation Speed | 0.4R/M | 0.4R/M |
| 8 | Fuels Choice | Coal, Wood, Gas, Oil | Coal, Wood, Gas, Oil |
| 9 | Power | 15~22kw/h | 8~15kw/h |
| 10 | Cooling Method | Cycling Water | Cycling Water |
| 11 | Type of Drive | External Annular Gear | External Annular Gear |
| 12 | Heating Method | Direct Heating | Direct Heating |
| 13 | Type of Installation | Without Foundation | With Foundation / Integrated Base |
| 14 | Noise dB (A) | ≤ 85 | ≤ 85 |
| 15 | Operating Mode | Intermittent Operation | Intermittent Operation |
| 16 | Total Weight (MT) | 25~50 | 10~25 |
Features
① Feeding compatible with steel-wire-containing rubber, high-efficiency steel-wire separation & discharging structure
Specially designed for steel wires embedded inside waste tires. Solid steel wires can be conveniently taken out from the reactor after pyrolysis to reduce blockage caused by residual steel wires. Complete steel-wire removal in pre-processing is not required; whole tires or cut tire pieces can be directly fed.
② Dedicated carbon-black collection & dust-removal system to minimize carbon-black dust emission
Equipped with multi-stage settling and bag-house collection units. Carbon black generated from pyrolysis is collected in a fully-closed manner to prevent dust leakage. Collected carbon black can be directly packed for recycling and reuse.

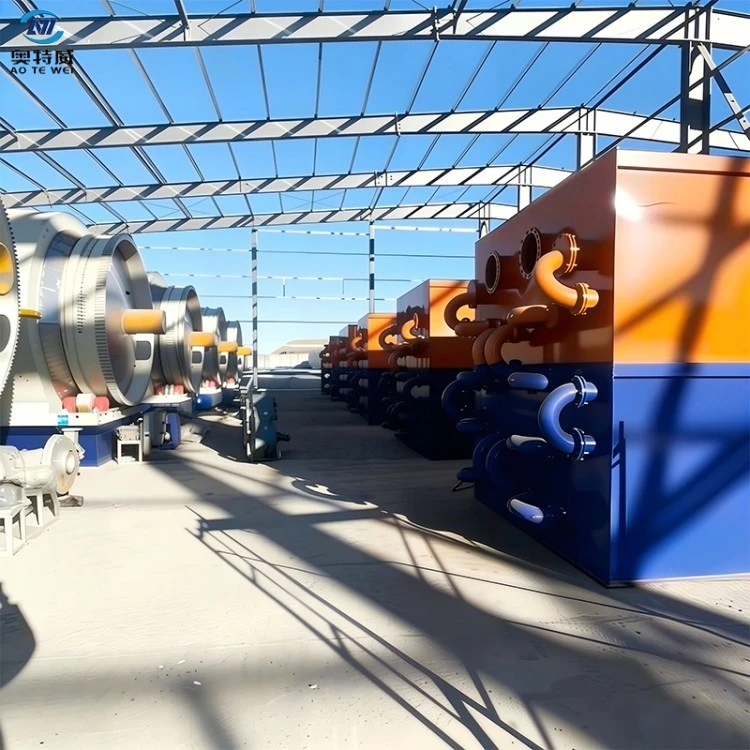

③ Multi-stage oil-gas condensation matching composition features of rubber pyrolysis oil
Rubber pyrolysis oil contains a high proportion of heavy-oil fractions. Graded cooling-condensing structure ensures sufficient condensation and collection of heavy-oil components and reduces oil-gas escape loss.
④ Recycle and burn pyrolysis combustible gas for heat supply with controllable energy consumption
Non-condensable combustible gas generated from rubber pyrolysis is purified and sent to the furnace for combustion heating, cutting consumption of external energy such as coal and natural gas.

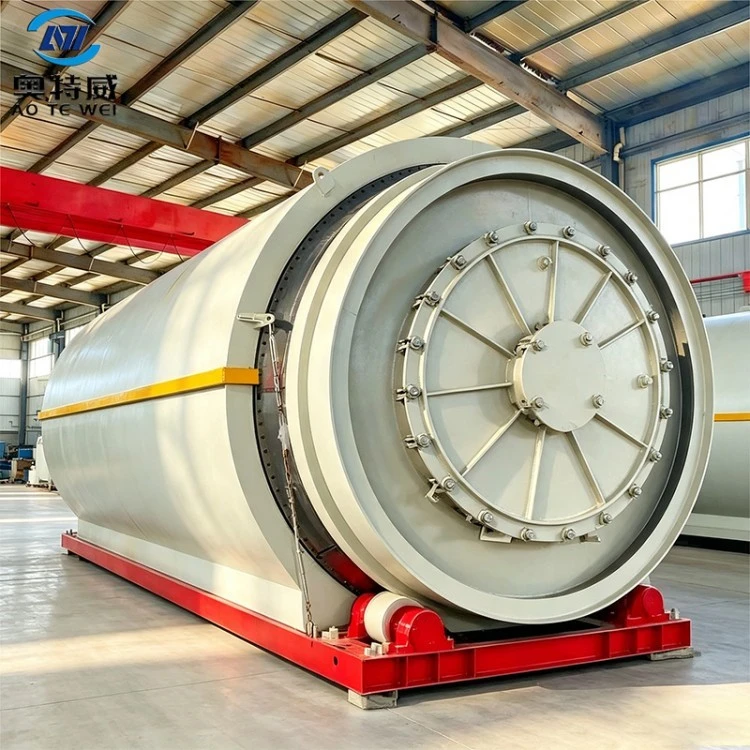

⑤ High-pressure sealed quick-opening reactor door, high-temperature resistant and anti-deformation
Multi-point compression sealing structure is adopted for reactor door. It maintains stable sealing performance under high-temperature working conditions with easy opening & closing, balancing sealing performance and material loading/unloading efficiency.
Advantages
① Full-component resource recovery of rubber: oil, steel wires and carbon black are all saleable outputs
After pyrolysis by Rubber Pyrolysis Machine, fuel oil, metal steel wires and carbon black are all marketable products. Multiple revenue streams improve overall project economic returns.
② Simple feedstock pre-treatment; whole tires can be fed into reactor
There is no need to grind tires into fine particles. Simple cutting is sufficient for feeding. High-cost investment in crushing and rubber-grinding equipment is saved, lowering pre-processing investment.
③ Closed-loop carbon-black collection for good-quality and market-ready products Carbon black is collected under closed conditions to avoid large-quantity impurity contamination. Recovered carbon black can be used as rubber filler, coal additive, pigment and so on to expand profit channels.
④ Stable equipment operation; lower coking tendency compared with waste-plastic processing
Rubber pyrolysis generates less coke than waste-plastic pyrolysis. Rubber Pyrolysis Machine achieves longer continuous operation cycles with fewer coking-cleaning maintenance cycles.
⑤ Solve difficult-disposal problem of waste rubber and avoid pollution from open-air rubber burning
Waste rubber is hardly biodegradable. This oxygen-free closed pyrolysis process eliminates air pollution caused by open-air burning and complies with policies for harmless solid-waste disposal.
⑥ Mature and reliable batch-type process with low operation threshold The batch-type process has been verified by numerous real-world projects. Operators can get qualified after simple training; senior technical personnel are not required for on-site duty.
Application Scenarios
- - Waste-tire dismantling & recycling plants: Process waste automobile tires and truck tires to recover tire oil, steel wires and carbon black. - Rubber-goods manufacturing factories: Treat rubber scraps, waste rubber hoses, waste sealing rings and other waste generated during production. - Overseas waste-tire disposal projects: Process locally stockpiled waste tires and produce fuel oil for local industrial consumption. - Supporting projects for recycled carbon-black production: Produce crude carbon black via pyrolysis from waste rubber for further deep-processing.
Packing & Shipping
Packing Method:
Main reactor is wrapped with heavy-duty waterproof tarpaulin; large reactor components are bare-packed. Control cabinets, sensors, pressure gauges and other electrical instruments are packed in shock-proof & moisture-proof plywood crates. Valves, sealing gaskets, pipeline fittings and full spare-part kits are sorted into export wooden cases and pallets.
Shipping Method:

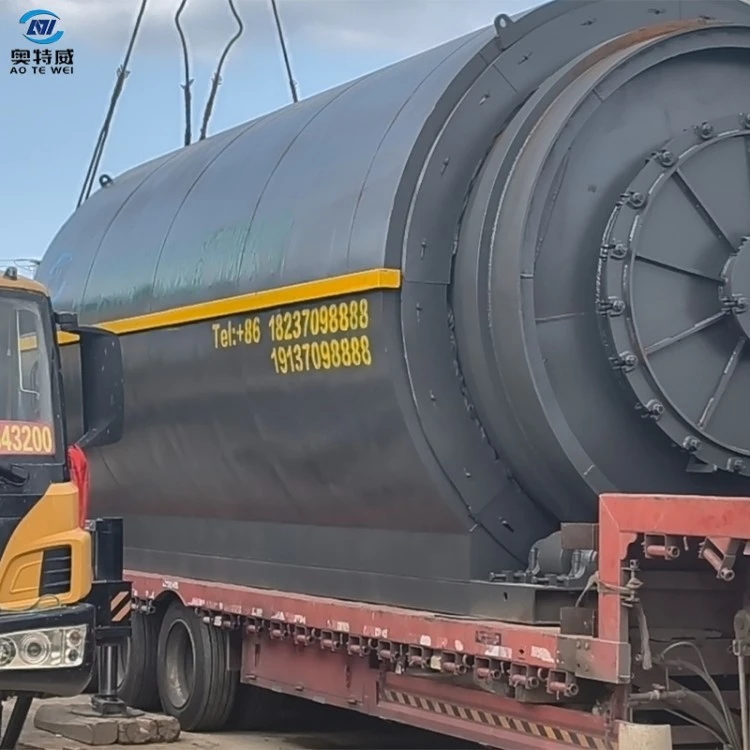

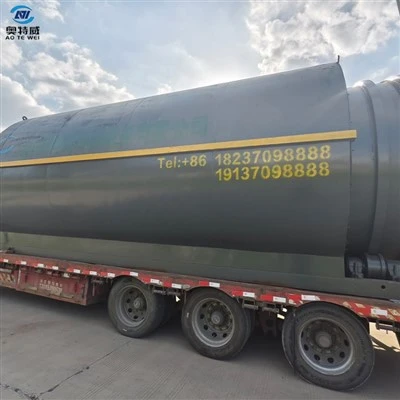

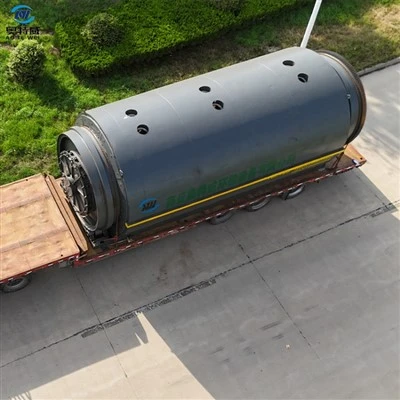

Standard-size components are loaded into 40HQ containers; over-dimension reactor parts are shipped by break-bulk vessel. Heavy-duty flat-bed trucks deliver goods directly to project sites for inland transport.
Delivery Lead Time:
70-105 working days upon deposit receipt. Lead time will be extended for custom high-capacity units, upgraded precision carbon-black collection and advanced flue-gas treatment configurations. Real-site photos and videos will be provided for customer confirmation before shipment.
FAQ
Q1: What is the approximate oil yield of waste tire rubber pyrolysis?
A: Oil yield of complete waste tires is around 40 45%, together with approx. 30% steel wires and 30% carbon black. Product ratios vary with raw material conditions. Accurate data can be obtained by pilot tests with supplied samples.
Q2: Can whole tires be fed directly into the machine?
A: Standard models accept cut tire pieces. Large size intact tires are recommended to be cut to avoid excessive space occupation inside reactor and reduced single batch feeding capacity.
Q3: Is carbon black from pyrolysis sellable directly?
A: Crude pyrolysis carbon black contains minor impurities and can be sold at lower price directly. Additional carbon black deep processing equipment is required for high grade carbon black output.
Q4: Can rubber pyrolysis machine process waste plastic?
A: Physically it can process waste plastic. However plastic causes severe coking. Thorough reactor cleaning is mandatory after each plastic run. Alternating long term production between rubber and plastic is not recommended.
Q5: How are steel wires taken out during production?
A: After completion of one full pyrolysis batch and reactor cooling down, open the reactor door and pull out the bundled steel wires with tools.
Q6: What basic supporting conditions are required for one set of rubber pyrolysis machine?
A: Hardened anti seepage ground, water power supply and fire protection facilities are required. Dust proof protection shall be implemented in carbon black working area.
Company Profile & Manufacturing
Our factory is a professional domestic manufacturer of solid-waste pyrolysis equipment with official pressure-vessel manufacturing qualifications. We have many-year experience in manufacturing pyrolysis equipment for waste tires and various rubber waste. We own complete production capacity covering process design, tank welding & non-destructive testing, hydrostatic testing of whole unit, assembly and commissioning. Special structural optimizations are implemented for working conditions of steel-wire-bearing rubber and carbon-black generation.
Besides main reactors, optional expansion modules are available including tire shredding equipment, carbon-black deep-processing, oil-gas distillation & refining and upgraded flue-gas purification. We provide overseas customers with equipment drawings, remote installation guidance and operator training services. Our equipment has been deployed in numerous rubber solid-waste disposal projects worldwide with abundant practical field cases.
