Products Description
Small Tyre Recycling Plant
Small Tyre Recycling Plant is a batch-type pyrolysis equipment custom-built by Shangqiu Aotewei Environmental Protection Equipment Co., Ltd. for medium-and-small-scale waste tyre treatment scenarios. Its single-batch processing capacity ranges from 1 ton to 5 tons. Adopting a skid-mounted horizontal rotary structure, it integrates feeding, pyrolysis, condensation, oil collection and tail-gas recovery as one unit. It enables customers to convert waste tyres into high-value-added products including fuel oil, carbon black and steel wire with relatively low initial investment. This small tyre recycling plant is especially suitable for start-up enterprises, waste-resource recycling stations and investors who intend to conduct small-scale verification before capacity expansion.
| Technical Parameter of the Pyrolysis plant | |||
| 1 | Suitable Raw Materials | Rubber/Plastic Products etc | Rubber/Plastic Products etc |
| 2 | Structure | Horizontal Rotation Type | Horizontal Rotation Type |
| 3 | Reactor Size | φ2600×6600mm φ2800×8000mm φ3000×8800mm |
φ1500×2000mm φ1800×4000mm φ2000×600mm |
| 4 | Capacity for One Batch | 8-10Mt; 12-15Mt; 18-20Mt | 1Mt; 3Mt; 5Mt |
| 5 | Oil Yield from Tyres | 38%~45% | 38%~45% |
| 6 | Work Pressure | Normal Pressure | Normal Pressure |
| 7 | Reactor Rotation Speed | 0.4R/M | 0.4R/M |
| 8 | Fuels Choice | Coal, Wood, Gas, Oil | Coal, Wood, Gas, Oil |
| 9 | Power | 15~22kw/h | 8~15kw/h |
| 10 | Cooling Method | Cycling Water | Cycling Water |
| 11 | Type of Drive | External Annular Gear | External Annular Gear |
| 12 | Heating Method | Direct Heating | Direct Heating |
| 13 | Type of Installation | Without Foundation | With Foundation / Integrated Base |
| 14 | Noise dB (A) | ≤ 85 | ≤ 85 |
| 15 | Operating Mode | Intermittent Operation | Intermittent Operation |
| 16 | Total Weight (MT) | 25~50 | 10~25 |
Features
Skid-mounted integrated structure, ready-for-site commissioning:
The main unit, cooling system and oil-water separator are pre-assembled on one shared base. Once on-site, it can be commissioned and run after connecting water and power supplies. It greatly shortens installation cycles and reduces on-site civil-engineering workload.
Multiple reactor sizes for flexible capacity matching:
Various reactor models are available. Customers may select the most suitable specification according to local waste tyre recycling volume to avoid overcapacity or insufficient throughput.
Main furnace of Q345R boiler-grade steel plate with normalizing & tempering treatment:
Reactor inner liner adopts national standard positive-tolerance Q345R pressure-vessel steel plate processed via normalizing plus tempering heat treatment. It delivers better resistance against high-temperature creep and fatigue cracking than ordinary Q235 steel sheets for an extended service life.
12 mm-thick double-helix blades are fitted inside the furnace, reinforced by angle-steel supports spaced at 1-meter intervals. They share identical material and thermal-expansion coefficient with the furnace shell. When rotating, they promote uniform heating of feedstock. Upon pyrolysis completion, carbon black and steel wire can be rapidly discharged to cut furnace-cleaning downtime.
Advantages
Direct supply from original factory with transparent pricing:
Aotewei owns self-operated workshops and complete production lines for plate rolling, welding and machining. The whole workflow from steel plate cutting to finished-product pressure testing is completed in-house with no middle-man markup. Our pricing stays competitive under equivalent configurations.
20+ years of foreign-trade experience for reliable delivery:
Our team has deep expertise exporting waste-tyre pyrolysis equipment for more than two decades. We are well-versed in trade terms including FOB, CIF and EXW. Complete sets have been delivered to Russia, Southeast Asia, Africa, the Middle East and many other countries & regions, with rich practical experience in customs clearance and logistics arrangement.
Customizable high-end / standard configurations for flexible budget options:
Two configurations are offered: high-end version (Wuyang steel plate + zirconium-aluminum thermal-insulation modules + split supporting rollers + ZQ650 reducer) and standard version. Customers can choose based on budget and operating intensity.
Zirconium-aluminum module insulation for energy saving & lower sea-freight: The high-end unit uses a composite insulation layer consisting of 20 mm zirconium-aluminum modules plus 5 mm needle-punched blankets, tolerating temperatures up to 1260 °C. It weighs roughly 6 tons less than traditional refractory-cement insulation. It features faster temperature rise, shortening one-batch cycle to 22-23 hours while substantially cutting international ocean-shipping costs.
Split-type supporting rollers for safer maintenance:
High-end DN351 split supporting rollers adopt well-sealed built-in bearings with superior dust-proof performance. Grease replenishment is only required every 2-3 months. It eliminates scalding hazards caused by hot-state greasing after each batch and reduces production downtime for maintenance.
Application Scenarios
- Medium-and-small-scale waste tyre recycling stations: Recycling sites receiving 1-5 tons of waste tyres per day can deploy this small tyre recycling plant. Piled waste tyres can be converted on-site into fuel oil and carbon black, resolving stock-piling space issues while generating extra revenue.
- Auto repair shops & tyre dealers: Auto-repair workshops and tyre retailers accumulate large volumes of scrap tyres during daily business. Installing this compact unit allows in-house scrap-tyre disposal and eliminates third-party waste-treatment fees. Recovered fuel oil can be consumed on-premises or sold externally.
- Start-ups in resource-recovery industry: New entrants to the waste-tyre recycling sector may purchase 1-ton or 3-ton small-capacity units for trial operation with modest upfront investment. After validating technical routes and profit models, they can expand production step-by-step.
- Auxiliary unit for tyre-retreading factories: Tyre-retreading facilities generate large quantities of non-retreadable scrap tyres. Equipping small-scale pyrolysis units enables internal consumption of waste materials, lowers disposal costs and builds a closed-loop circular-economy workflow.
- Scrap-trim processing for rubber-goods manufacturers: Rubber-product factories producing rubber hoses, belts and sealing gaskets generate trimmings and defective parts. Such waste can be pyrolyzed in our compact plant to recover fuel oil for partial substitution of purchased energy sources.
- Upgrading informal small-scale oil-extraction workshops overseas: Many countries have primitive oil-extraction workshops featuring heavy pollution and poor safety. Our standardized small tyre-recycling plant helps upgrade these sites into compliant, safe and efficient industrial production set-ups.
- Solid-waste treatment centers within industrial parks: Waste tyres and scrap rubber collected centrally across industrial parks can be fed into this compact processing unit for resource recovery, delivering dedicated solid-waste-management services for the whole park.
Packing & Shipping

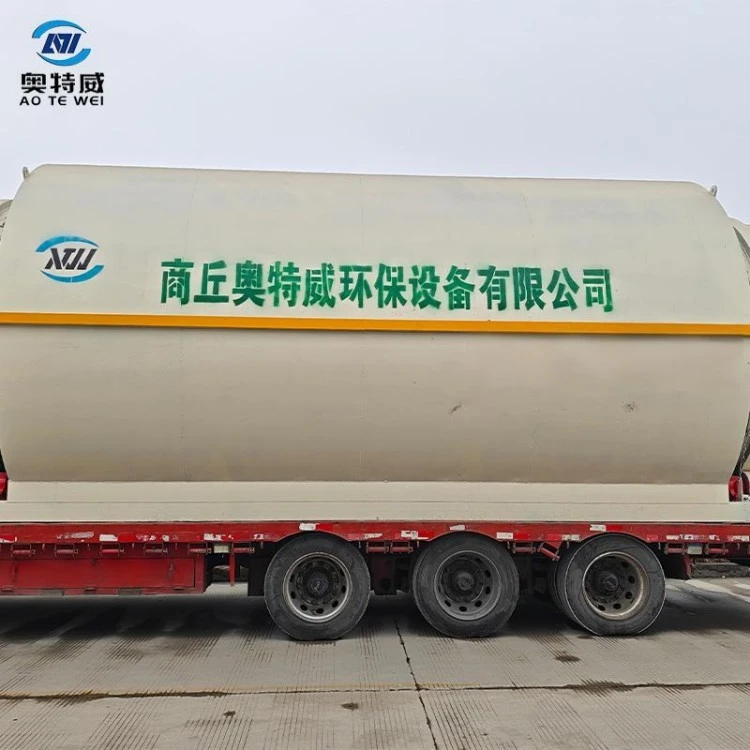

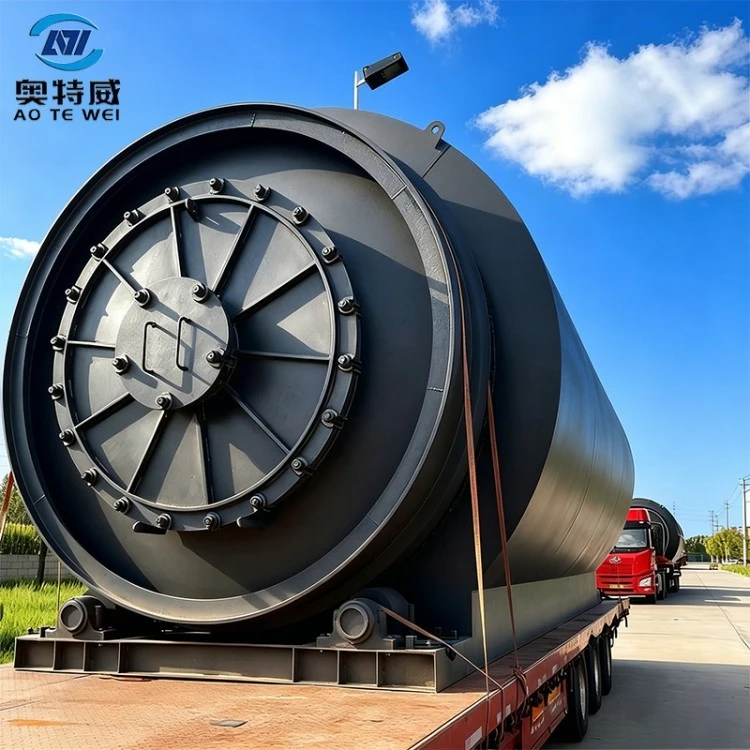

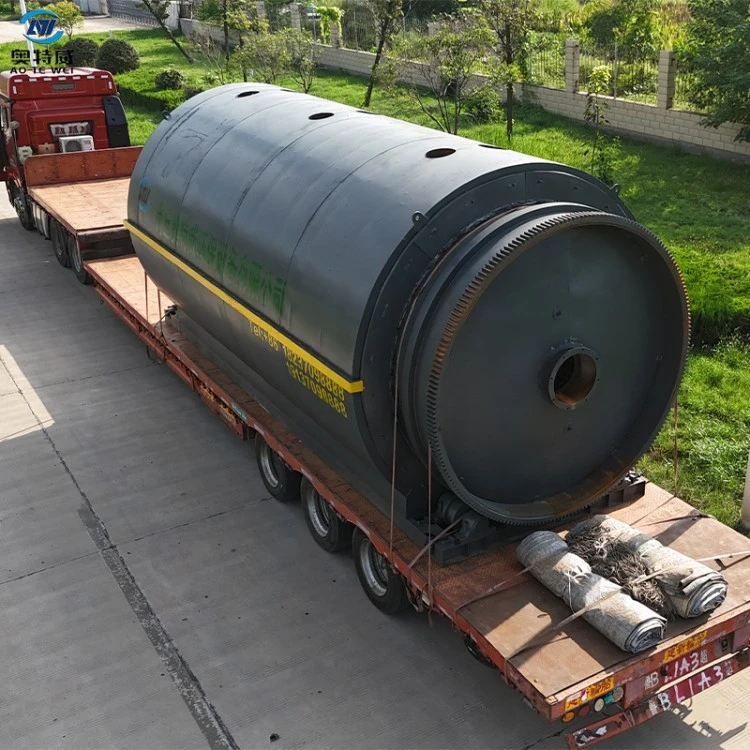

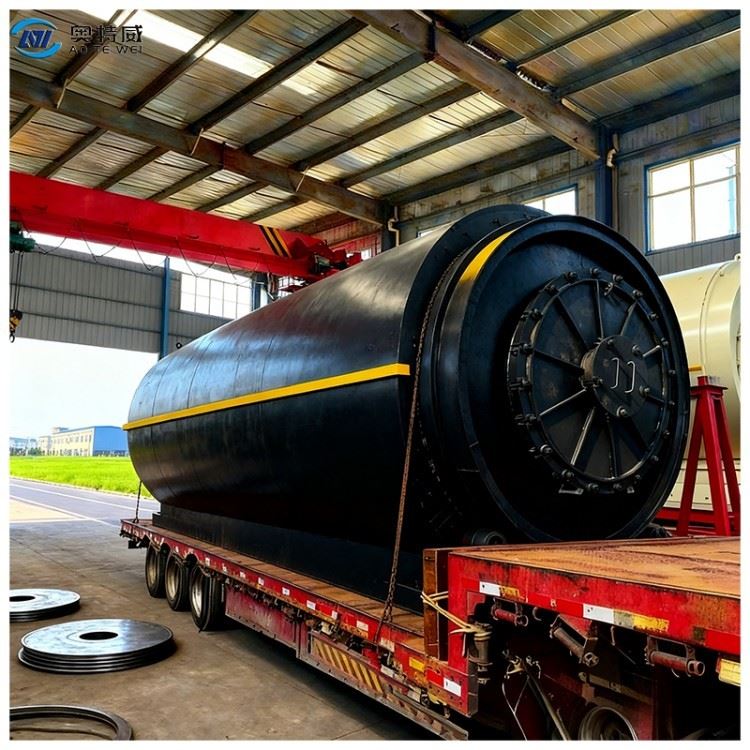

The Small Tyre Recycling Plant is shipped in bare-metal condition covered with tarpaulin for rain protection.
The complete set can normally fit into one 40HQ (40-foot high-cube) container.
Multiple trade terms are supported: FOB Qingdao Port / FOB Shanghai Port, CIF named port of destination and EXW factory. We can assist customers with ocean-freight booking and cargo-insurance arrangement.
FAQ
Q1: How many workers are needed to operate one small tyre recycling plant?
A: 2 3 workers are sufficient under regular production. One operator monitors temperature and pressure, while 1 2 staff handle feeding and discharging. The plant delivers fair automation and does not require specialized chemical industry backgrounds. General skill workers can get competent after 3 5 days of training.
Q2: What output can we get from processing 1 ton of waste tyres?
A: Taking mixed waste tyres from passenger cars and trucks as an example, 1 ton of feedstock yields approximately 0.38 0.45 t fuel oil, 0.3 0.35 t carbon black and 0.1 0.15 t steel wire. The rest consists of combustible syngas (recycled for heating) plus minor moisture content. Actual yields vary according to tyre type, ageing degree and operating parameters.
Q3: Does the equipment require special foundation work?
A: Skid mounted small capacity units impose low foundation requirements. 1 ton and 3 ton models can sit directly on hardened concrete floors. For the 5 ton version, a simple concrete foundation is recommended. We will supply detailed foundation drawings and load bearing specifications.
Q4: Will the production process cause pollution?
A: The unit comes equipped with combustible gas recovery system and flue gas dust removal device. No black smoke occurs under normal operation. Non condensable pyrolysis gas is fully recycled for combustion. Waste water after oil water separation can be circulated for reuse, complying with environmental protection standards in most countries. If stricter local emission standards apply, desulfurization & denitrification modules are available as optional add ons.
Q5: What is the quality of recovered fuel oil? Can it be used directly?
A: The produced fuel oil can be directly applied for industrial boilers, burners, marine engines and similar equipment. To obtain higher grade diesel or gasoline, our distillation & refining unit can be connected for secondary processing.
Company Profile & Manufacturing
Shangqiu Aotewei Environmental Protection Equipment Co., Ltd. is located in Shangqiu City, Henan Province. We are an environmental-protection enterprise focusing on R&D, manufacturing and export of pyrolysis recycling equipment for waste tyres, waste plastics and scrap rubber.
Our facility features standardized industrial workshops fully equipped with heavy-duty plate-rolling machines, automatic submerged-arc welders, CNC cutting machines, non-destructive-testing devices and other complete sets of pressure-vessel-manufacturing hardware. Annual output exceeds 100 units of various pyrolysis plants.
Our core team accumulates more than 20 years of experience in foreign-trade sales and equipment manufacturing. Our products have been exported to dozens of countries and regions including Russia, Nigeria, United States, Haiti, Burkina Faso, Guinea, Myanmar, Iraq, Mongolia, Oman, South Africa, Philippines, Benin and Botswana, earning positive international reputation. Beyond equipment supply, we deliver one-stop solutions covering project feasibility assessment, process design, installation-commissioning and operational training.
For production-quality management, Aotewei strictly implements formal quality-management-system protocols. Every reactor undergoes hydrostatic pressure testing and non-destructive flaw detection to guarantee welding integrity and structural safety. Holding independent import-&-export qualifications, our company can independently execute customs declaration, commodity inspection, freight booking and all other export-related procedures, providing overseas clients with efficient and reliable delivery services.
