Shangqiu Aotewei Environmental Protection Equipment Co., Ltd. is one of the leading manufacturers and suppliers of mini pyrolysis plant in China. We are committed to providing high quality customized products with competitive price. If you're going to buy ISO certified mini pyrolysis plant, welcome to get quotation from our factory.
| Technical Parameter of the Pyrolysis plant | |||
| 1 | Suitable Raw Materials | Rubber/Plastic Products etc | Rubber/Plastic Products etc |
| 2 | Structure | Horizontal Rotation Type | Horizontal Rotation Type |
| 3 | Reactor Size | φ2600×6600mm φ2800×8000mm φ3000×8800mm |
φ1500×2000mm φ1800×4000mm φ2000×600mm |
| 4 | Capacity for One Batch | 8-10Mt; 12-15Mt; 18-20Mt | 1Mt; 3Mt; 5Mt |
| 5 | Oil Yield from Tyres | 38%~45% | 38%~45% |
| 6 | Work Pressure | Normal Pressure | Normal Pressure |
| 7 | Reactor Rotation Speed | 0.4R/M | 0.4R/M |
| 8 | Fuels Choice | Coal, Wood, Gas, Oil | Coal, Wood, Gas, Oil |
| 9 | Power | 15~22kw/h | 8~15kw/h |
| 10 | Cooling Method | Cycling Water | Cycling Water |
| 11 | Type of Drive | External Annular Gear | External Annular Gear |
| 12 | Heating Method | Direct Heating | Direct Heating |
| 13 | Type of Installation | Without Foundation | With Foundation / Integrated Base |
| 14 | Noise dB (A) | ≤ 85 | ≤ 85 |
| 15 | Operating Mode | Intermittent Operation | Intermittent Operation |
| 16 | Total Weight (MT) | 25~50 | 10~25 |
Features
Compact Layout with Small Footprint:
Designed for sites with space constraints, the mini pyrolysis plant occupies limited floor-area, greatly cutting costs for plant construction and land rental. It is well-suited for laboratories and small processing factories.
Skid-mounted Integrated Structure:
The whole unit is assembled on a shared base frame. Core components are pre-assembled in-factory. No complicated civil-construction work is required, and quick installation & commissioning can be carried out after on-site delivery.
High-precision Temperature-control System:
Equipped with high-sensitivity temperature sensors and monitoring modules. It accurately regulates the pyrolysis temperature curve inside the reactor to produce stable-quality pyrolysis oil even under small-capacity processing conditions.
Matched Energy-saving Combustion System:
Fitted with mini energy-saving burners sized to match the furnace chamber. It shortens pre-heating duration and reduces per-batch energy consumption for better operating-cost performance.
Multi-feedstock Compatibility:
Though compact in size, the mini pyrolysis plant can handle various solid wastes such as waste tyres, mixed waste plastics and oil sludge, delivering flexible resource-recovery solutions for customers.
Advantages
Low Investment Threshold & Reduced Project Risk:
This small-size pyrolysis equipment is ideal for start-ups and research institutions. Before full-scale mass production, users can verify processes and test real-world oil yields at low cost to avoid huge-investment risks.
Plug-and-play for Short Commissioning Cycle:
Most pipelines and instruments are pre-installed. Customers only need to connect water and power supplies on-site to start feeding materials, shortening the lead-time from equipment purchase to formal production.
Flexible Relocation for Decentralized Raw-material Sites:
The complete unit can be transported as a whole and relocated close to raw-material sources. It can be deployed on islands, industrial parks and mining zones, following the "equipment moves to raw materials" operation mode.
Uncompromised Industrial-grade Safety:
Miniaturized design does not lower safety standards. It is equipped with pressure-relief safety valves, explosion-proof variable-frequency motors and water-seal anti-flashback protection to ensure stable and safe operation.
Efficient Thermal Insulation for Better Working Conditions: The furnace chamber is lined with high-purity ceramic needle-punched blankets and lightweight insulation modules for high heat-utilization efficiency. Outer-shell temperature stays within safe limits to improve on-site working environments.
Application Scenarios
- University & Research Laboratories: For research on solid-waste pyrolysis mechanisms, process-parameter adjustment and new-catalyst testing.
- Industrial Pilot-scale Test Line: Acts as a pre-project prototype for large-scale plants. It tests oil yield and carbon-black quality of local raw materials and provides practical data for selecting large complete sets of equipment.
- Solid-waste Disposal in Remote Areas: Treat accumulated waste plastics and waste tyres in hard-to-access locations such as islands, mining sites and mountain tourist zones.
- Auxiliary Disposal for Industrial Parks: Provides on-site volume-reduction and resource-recovery services for chemical and processing factories that continuously generate small-volume solid waste.

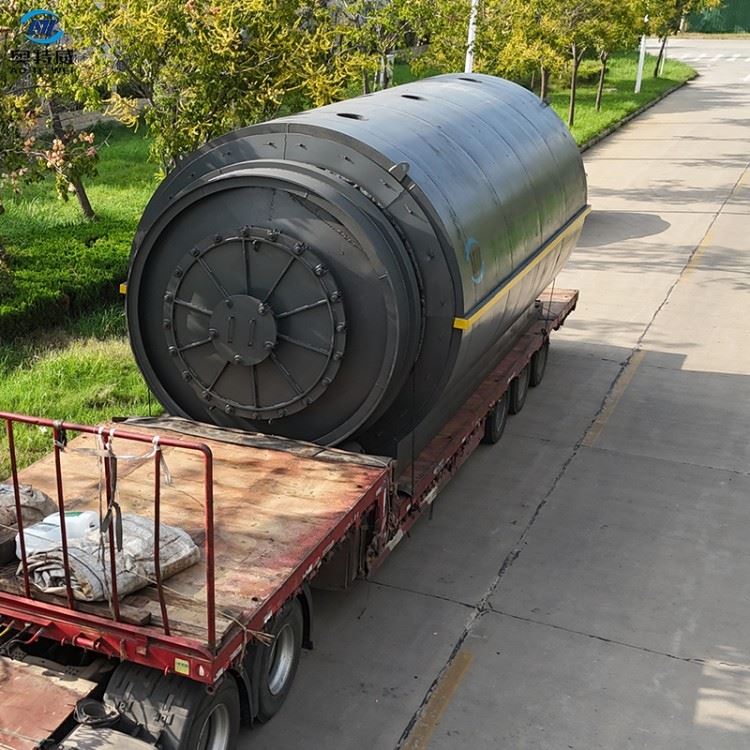

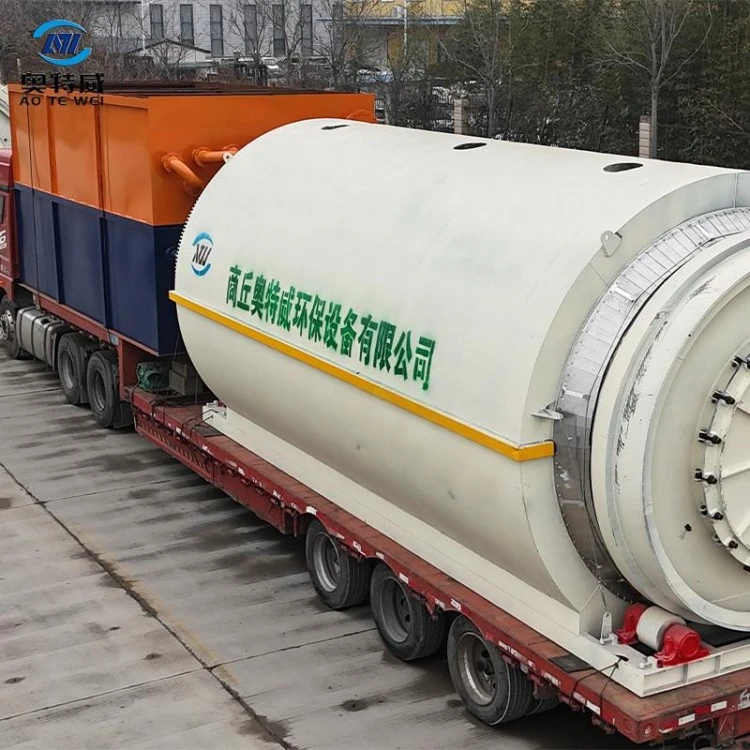

Packing & Shipping
Flexible Logistics Options:
Depending on equipment specifications, 40GP full-container sea shipment is available to effectively control ocean-freight costs.
Steel-frame Reinforced Protection:
The main unit and key accessories are packed with reinforced steel frames to prevent component damage caused by vibration and tilting during long-distance ocean transit.
Moisture-proof Protection for Electric Components:
Electric-control cabinets and precision instruments receive vacuum moisture-proof treatment against salt-spray-induced corrosion during sea transport.
Complete Customs-clearance Documentation:
Packing lists, installation manuals and real-product shipping photos are supplied to help customers finish destination-port customs clearance rapidly.
FAQ
Q: How much installation space does this mini pyrolysis plant require?
A: A flat hardened site of 40 100 ㎡ is sufficient for the main unit and basic auxiliaries. Extra space for raw material stacking is recommended.
Q: Does operation require multiple workers?
A: Multi person attendance is not needed. After simple training, one single operator can finish the whole workflow including feeding, pyrolysis and slag discharge.
Q: What about the profit performance of this mini size unit?
A: Single batch throughput is limited, yet costs for civil works, labour and energy consumption are very low. Considerable profits can still be achieved for feedstocks with high oil content or projects with environmental protection subsidies.
Q: What are the power supply requirements?
A: The electric control system can be customized for local voltages (220V / 380V or other industrial voltages). Standard models can run with ordinary industrial power supply.
Production Process Flow
- Raw-material Preparation & Feeding: Load waste-tyre chunks or waste plastics into the reactor, fit sealing gaskets and fasten the quick-open furnace door.
- Temperature-rising Pyrolysis: Start the burner for heating. When furnace temperature reaches 200-350 °C, macromolecular materials crack and generate oil-gas mixtures.
- Condensation & Oil Collection: Oil-gas flows into high-efficiency condensers. Heavy-weight fractions liquefy and flow into oil-storage tanks, while light-weight oil-gas proceeds to the circulating cooling system.
- Combustible-gas Recycling: Non-condensable combustible gas is purified via water-seal treatment and fed back to the burner for heating to recycle thermal energy.
- Cooling & Slag Discharge: Stop heating upon reaction completion. Release residual pressure after furnace cooling, then discharge solid by-products such as carbon black and steel wire.
- Flue-gas Discharge up to Standard: Combustion flue-gas passes through the spray-type desulfurization & dust-removal system and is discharged after meeting environmental-protection emission standards.
