Shangqiu Aotewei Environmental Protection Equipment Co., Ltd. is one of the leading manufacturers and suppliers of pyrolysis oil refining plant in China. We are committed to providing high quality customized products with competitive price. If you're going to buy ISO certified pyrolysis oil refining plant, welcome to get quotation from our factory.
Product Name

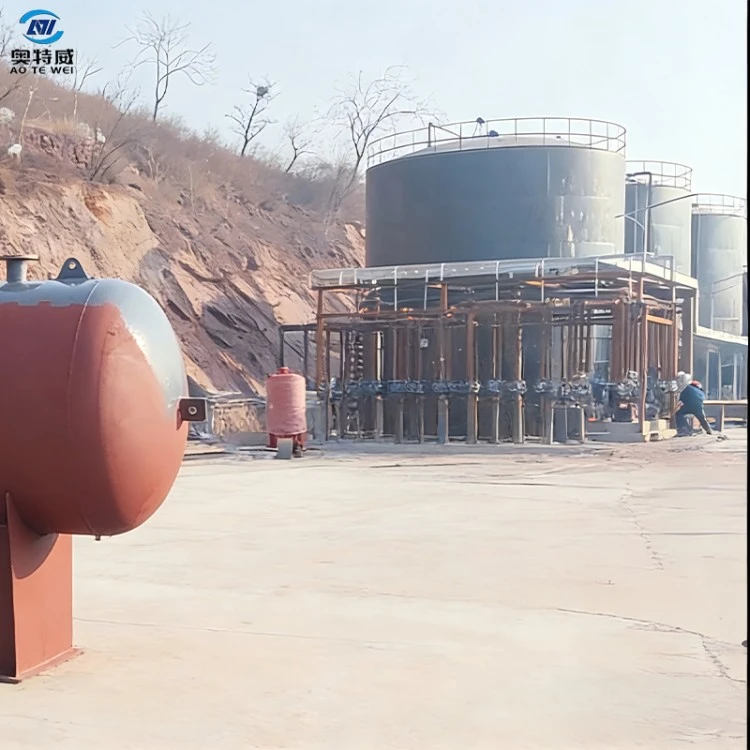

Complete-set Deep-Purification Refining Plant for Pyrolysis Oil (Pyrolysis Oil Refining Plant). It is an integrated pre-treatment-rectification refining equipment specially developed for crude-oil from tire and plastic pyrolysis. Integrated with pre-treatment degumming, slag-removal, rectification separation and tail-gas-treatment modules, it carries out graded purification on complex crude pyrolysis oil, removes sulfur-nitrogen impurities and colloids, and produces clear fuel-oil and diesel fractions. It is suitable for supporting and co-construction projects with upstream pyrolysis production lines.
| Key attributes - Vertical Distillation Equipment | ||
| 1 | Attribute | Value |
| 2 | Oil Type | Diesel |
| 3 | Phase | Three Phase |
| 4 | Voltage | Customized |
| 5 | Condition | New |
| 6 | Warranty | 1 Year |
| 7 | Raw Material) | Crude Oil, Used Ship Oil |
| 8 | Place of Origin | Henan, China |
| 9 | Brand Name | AOTEWEI |
| 10 | Name | Distillation Equipment |
| 11 | Advantages | Energy Saving, High Efficiency and Environmental Protection |
| 12 | Color | Customized |
| 13 | Function | Refined waste oil, tire‑derived oil, plastic‑derived oil, kitchen waste oil, etc. |
| 14 | Product Name | Refine equipment |
| 15 | After-sales Service Provided | Online Support |
| 16 | Type | Vacuum Filtration |
Features
Front-end integrated pre-treatment unit:
The Pyrolysis Oil Refining Plant integrates sedimentation, filtration and degumming pre-treatment modules to remove carbon-black residues and colloidal impurities inside pyrolysis oil in advance. It reduces scaling risk of subsequent rectification columns and extends the operation cycle of the rectification system.
Rectification-stripping coupling process:
The combined process of rectification column matched with stripping column can remove light components, sulfides and nitrides in oil products, improve oil odor and chroma, deliver high-precision fraction cutting, and ensure stable and controllable composition of each finished product.
Independent tail-gas incineration treatment unit:
The Pyrolysis Oil Refining Plant is equipped with a dedicated tail-gas incineration system. Non-condensable combustible tail gas generated from rectification is directly incinerated for heat supply without tail-gas discharge. Meanwhile, combustion heat is recovered for production to realize energy recycling.
Modular combined design:
Pre-treatment, rectification, heat-exchange and tail-gas-treatment units are independently modularized. Modules can be flexibly added or reduced according to customers' actual capacity. It can either connect with existing pyrolysis equipment or run as an independent complete set.
Multi-point safety interlock protection system:
The Pyrolysis Oil Refining Plant is equipped with multi-detection for liquid level, pressure, temperature and combustible gas. Automatic alarm and linkage actions will be triggered under over-temperature and over-pressure conditions to cut off feedstock, ensuring production safety for high-risk oil-processing working conditions.
Advantage
Front-end pre-treatment protects main rectification equipment:
Carbon black and colloids are removed in advance, which greatly reduces blocking and coking of columns and heat exchangers, lowers equipment maintenance frequency and cuts downtime for maintenance.
Simultaneous tail-gas treatment with low environmental-protection pressure:
Non-condensable gas generated from pyrolysis and rectification is incinerated on-site for heat supply. No complex extra tail-gas-treatment equipment is required. Exhaust gas meets emission standards and facilitates local environmental-protection acceptance.
Improved comprehensive oil quality:
It not only separates light and heavy fractions, but also improves oil odor and color and reduces sulfur content. Finished products can be directly used as industrial fuel, lowering investment for subsequent refining procedures.
Adaptable to new-project construction and old-project retrofitting: It can serve as supporting section for new-built pyrolysis projects or conduct technical-renovation upgrading for existing pyrolysis plants. It connects to customers' existing pyrolysis equipment without full production-line replacement.
High energy self-sufficiency:
Heat recovered from tail-gas incineration cuts external fuel consumption, reduces long-term fuel-operating cost of projects and improves overall project returns.
Application Scenarios
- Supporting refining for waste-tire pyrolysis projects: Remove carbon black and colloids from crude tire-pyrolysis oil, separate diesel and fuel-oil fractions, and improve oil appearance and combustion performance.
- Purification of mixed waste-plastic pyrolysis oil: Process mixed crude oil from various plastic pyrolysis, remove impurities and undesirable components to produce qualified industrial fuel oil.
- Technical-renovation & upgrading for old pyrolysis production lines: Add refining sections to existing batch-type pyrolysis plants to solve pain points of poor crude-oil quality and low selling price, and increase added-value of products.
- Processing of waste-rubber pyrolysis oil: Deeply purify crude oil produced from rubber-waste pyrolysis, eliminate pungent odor and produce commercial fuel oil for external sales.
Packing & Shipping
- Precision electrical components including instrument control cabinets, combustible-gas detectors, transmitters, regulating valves and pumps are individually packed in shock-proof and moisture-proof solid-wood cases filled with cushioning materials. International common shipping marks such as "This Side Up" and "Keep Dry" are printed on cases.
- Scattered spare parts including column internals, sealing gaskets, filter cartridges, valves and special disassembly-assembly tools are packed by category. Each package is attached with a clear material list for checking and acceptance upon port arrival.
- All equipment components are split and designed to fit the dimension standards of 40HQ containers.
FAQ
Q1: Can this refining plant connect directly with old pyrolysis equipment?
A: Yes. Adopting modular design, the equipment is compatible with most mainstream pyrolysis units. We can provide interface adaptation and modification solutions according to the working conditions of customers' existing equipment.
Q2: What standards can oil products reach after being processed by this plant?
A: After pre treatment plus rectification stripping, oil color is significantly lightened and odor is greatly improved, which can be used as high quality industrial fuel. To meet standards for vehicle use diesel, an additional hydro refining unit shall be installed.
Q3: Does the tail gas incineration unit consume extra fuel?
A: Under normal working conditions, combustible tail gas generated from rectification acts as the main fuel. Only a small amount of auxiliary fuel is required in startup phase. Self sustained tail gas combustion can be basically realized during normal production.
Q4: What is the daily processing capacity for crude pyrolysis oil of this plant?
A: The daily processing range of standard models is 10 60 tons. Non standard customization is supported, and specifications can be matched according to the capacity of customers' upstream pyrolysis furnaces.
Q5: Will the equipment get clogged easily when feedstock contains high impurities?
A: A dedicated pre treatment section for carbon black and colloid removal is equipped in the front end to remove most solid impurities before feedstock enters the rectification system, greatly reducing clogging risk. Nevertheless, large size solids shall be prevented from direct feeding.
Company Profile & Production Capacity
Shangqiu Aotewei Environmental Protection Equipment Co., Ltd. holds pressure-vessel manufacturing qualifications. Deeply engaged in solid-waste pyrolysis and oil-resource-utilization equipment, we possess complete capabilities of process R&D, mechanical processing, complete-set assembly and pre-delivery commissioning.
Our company can realize full-cycle implementation of pyrolysis-oil refining plants, including feed-stock-condition analysis, process-scheme design, equipment manufacturing, factory pressure test and technical-document delivery. Both standard complete-set models and non-standard customization for feed-stock characteristics of customers from different countries are available.
The factory owns standardized production workshops and professional engineering teams. All core pressure vessels undergo factory pressure-testing and inspection. Our products are exported to many overseas countries. We provide full-chain services including process schemes, equipment delivery, operation training and remote after-sales support, helping solid-waste-pyrolysis resource-utilization projects achieve stable commissioning and profitable production.
