Shangqiu Aotewei Environmental Protection Equipment Co., Ltd. is one of the leading manufacturers and suppliers of pyrolysis oil distillation plant in China. We are committed to providing high quality customized products with competitive price. If you're going to buy ISO certified pyrolysis oil distillation plant, welcome to get quotation from our factory.
Product Name

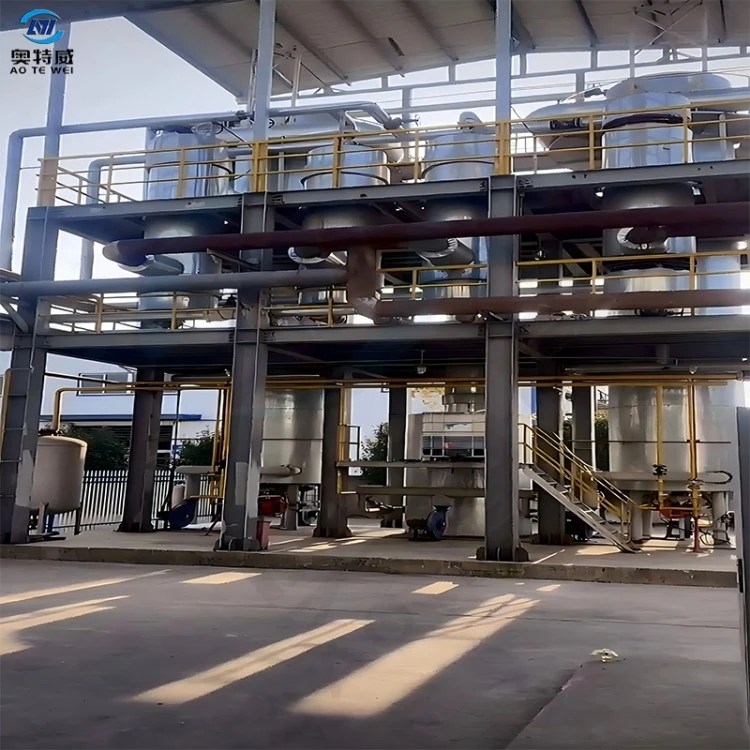

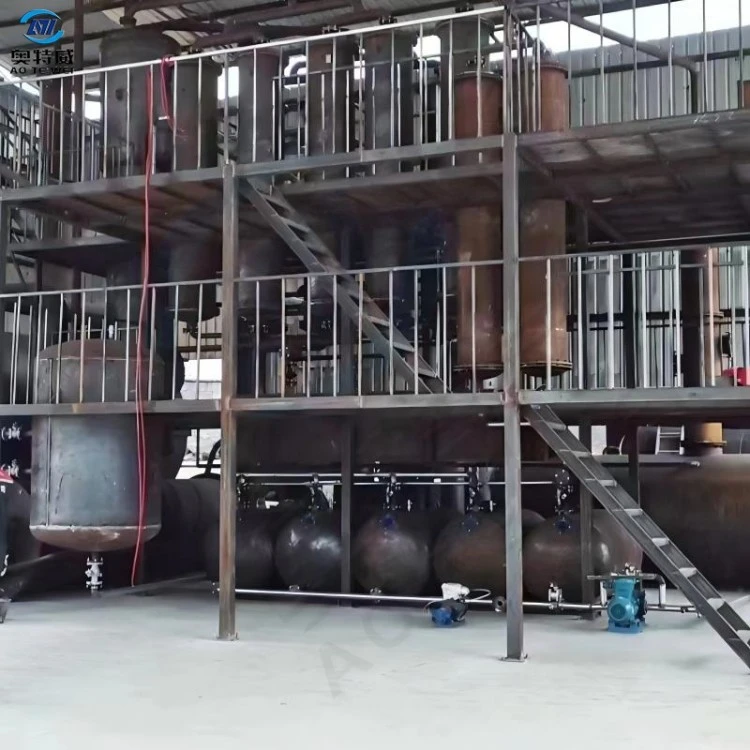

High-Efficiency Waste Oil Refining & Distillation Plant (Pyrolysis Oil Distillation Plant) – Circular-Economy Solution for Converting Feedstock into High-Quality Non-Standard Diesel.
| Technical Parameter of the Pyrolysis plant | |||
| 1 | Suitable Raw Materials | Waste Engine Oil, Fuel Oil, Crude Oil | Waste Engine Oil, Fuel Oil, Crude Oil |
| 2 | Structure | Horizontal Rotation Type | Horizontal Rotation Type |
| 3 | Reactor Size | φ2600×6600mm φ2800×8000mm φ3000×8800mm |
φ1500×2000mm φ1800×4000mm φ2000×600mm |
| 4 | Work Pressure | Normal Pressure | Normal Pressure |
| 5 | Oil Yield | 85%~95% | 85%~95% |
| 6 | Work Pressure | Normal Pressure | Normal Pressure |
| 7 | Power | 15-25kw/H | 15-25kw/H |
| 8 | Heating Method | Indirect Heating | Indirect Heating |
| 9 | Type of Installation | Without Foundation | Without Foundation |
| 10 | Cooling Method | Cycling Water | Cycling Water |
| 11 | Noise dB (A) | ≤ 85 | ≤ 85 |
| 12 | Cooling Method | Cycling Water | Cycling Water |
| 13 | End Product | Non-standard Diesel Oil | Non-standard Diesel Oil |
| 14 | Manpower | 4-6/shift | 2-4/shift |
Features
● Versatile Feedstock Refining Capacity:
This Pyrolysis Oil Distillation Plant features excellent material compatibility. It can efficiently process waste engine oil, crude pyrolysis oil from tyres/plastics, and various types of waste mineral oil.
● Horizontal Rotary Distillation Process:
Adopting a unique horizontal rotary design, it delivers more uniform heating compared with vertical reactors. It effectively prevents material coking, greatly extends the service life of the distillation reactor and shortens production cycles.
● Advanced Vacuum Distillation Technology:
Integrated with precision vacuum assemblies, the system enables flexible switching between atmospheric-pressure and negative-pressure working modes. Efficient fractionation is achieved at relatively low temperature ranges to improve oil clarity.
● Closed-Loop Circulating Cooling System:
Equipped with large-area circulating water-cooling devices. The condensing temperature is precisely regulated by the temperature-control system to guarantee thorough liquefaction of oil-gas and maximize oil recovery rate.
Advantage
● Outstanding Oil Yield Performance:
According to practical test data, the finished-oil recovery rate of this equipment reaches 85%~95%. It greatly reduces residue output and directly improves customers' profit margin per ton of feedstock.
● Low Energy Consumption & High Environmental Performance:
Indirect heating is applied together with waste-heat recovery logic, complying with industrial environmental standards of multiple countries.
● Remarkably Upgraded Product Quality:
The refined end product is light-yellow or amber transparent liquid (non-standard diesel). It boasts high flash point and ultra-low impurities, and can be directly used as fuel for industrial boilers, burners and generators.
● Flexible Modular Design:
Two installation options are available: fixed-foundation type and skid-mounted (foundation-free) type. It occupies compact floor space and supports fast on-site assembly and later-stage relocation.
Application Scenarios
This plant mainly serves waste-oil recycling & refinery factories, downstream deep-processing projects of pyrolysis lines and industrial fuel supply centres. It re-refines dark crude oil generated during resource regeneration into high-value clean fuel for multiple manufacturing sectors including steel and cement industries.
Packing & Shipping
Marine-grade fixing solution for heavy-duty machinery is adopted. Distillation reactors go through rust removal and anti-corrosive coating treatment. Precision control cabinets are packed with vacuum waterproof packaging. Global safe shipment is available via 40HQ / FR containers.
FAQ
For oil colour performance, our system is equipped with dedicated decolorization process to guarantee amber-hued transparency. Only 2-4 operators per shift are required for operation. Distillation reactor specifications support full-range customization from φ1500 to φ3000.
Company Introduction & Production
As a leading environmental-protection equipment manufacturer with over 20-year expertise in solid-waste recycling industry, we commit ourselves to delivering one-stop pyrolysis & distillation solutions for global clients, covering technical R&D, machinery manufacturing, installation and after-sales service. Our intelligent manufacturing base is equipped with advanced automatic plate-rolling machines, submerged-arc welding machines and non-destructive testing facilities, ensuring every pressure vessel meets strict international manufacturing standards. Backed by an experienced engineering team, our Pyrolysis Oil Distillation Plant has been successfully exported to Southeast Asia, Eastern Europe, the Middle East and many other regions. It has won wide-spread customer recognition for reliable performance and attractive return-on-investment. We keep innovating resource-recovery technologies to help enterprises create greater value within green circular economy. Pyrolysis Oil Distillation Plant is your preferred equipment to upgrade resource-regeneration value and achieve high-efficiency profitability.
