Shangqiu Aotewei Environmental Protection Equipment Co., Ltd. is one of the leading manufacturers and suppliers of pilot distillation column in China. We are committed to providing high quality customized products with competitive price. If you're going to buy ISO certified pilot distillation column, welcome to get quotation from our factory.
Product Name

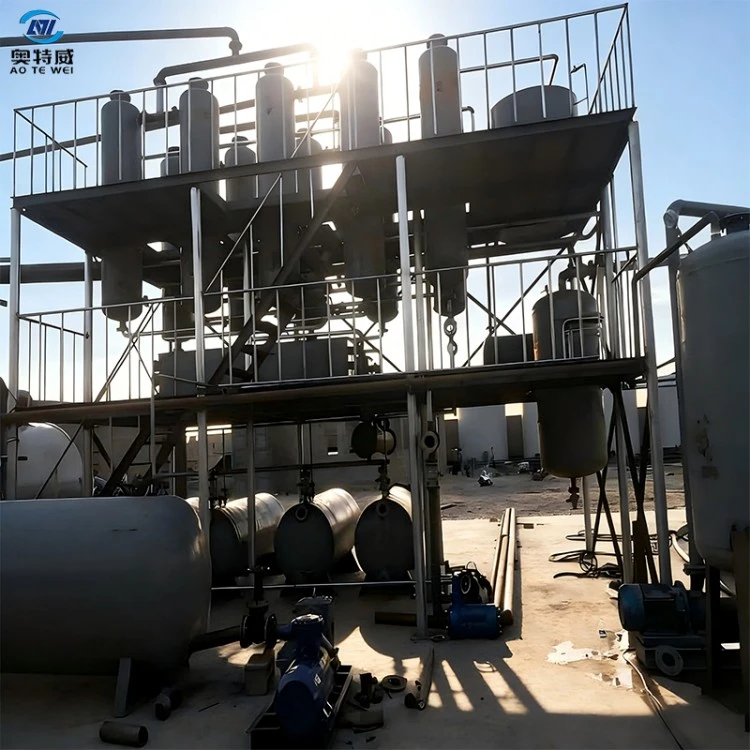

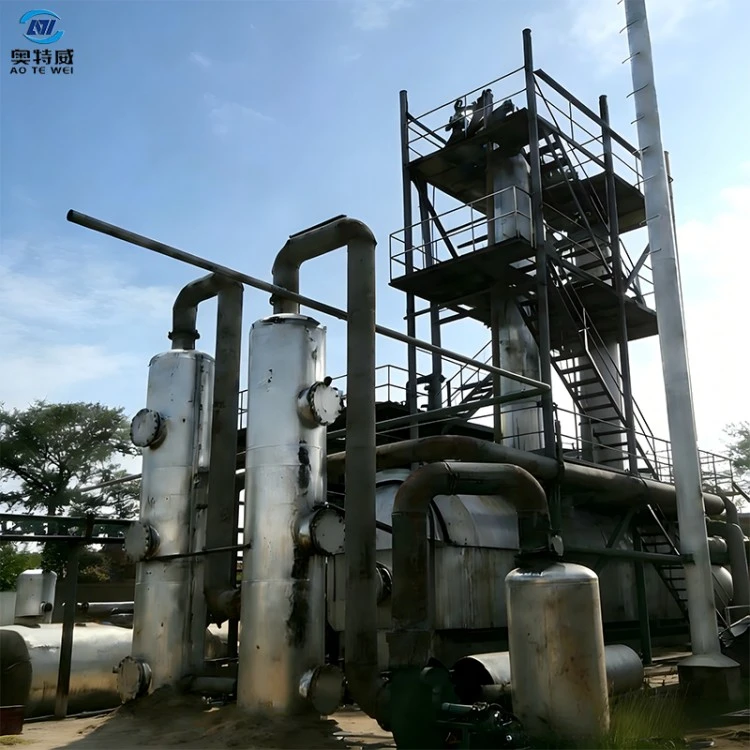

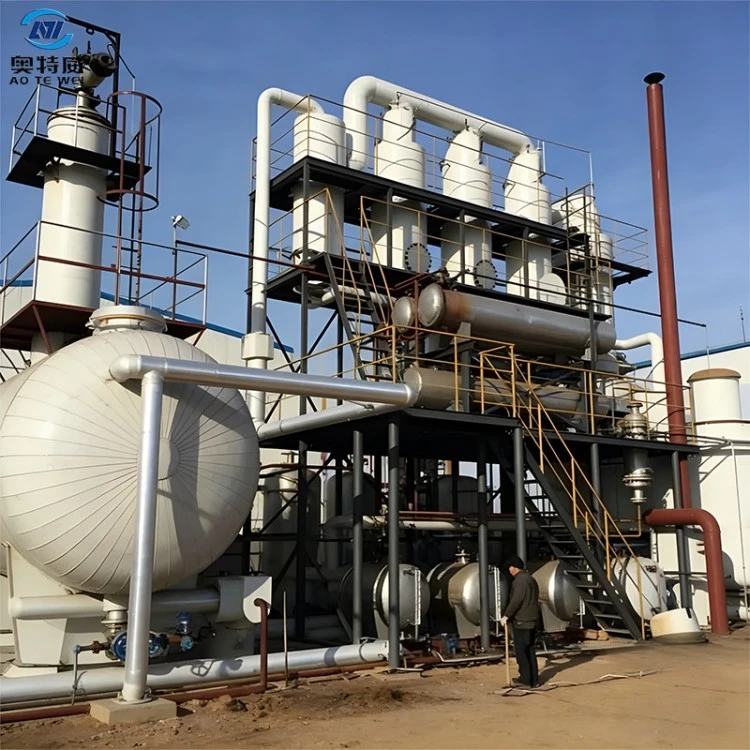

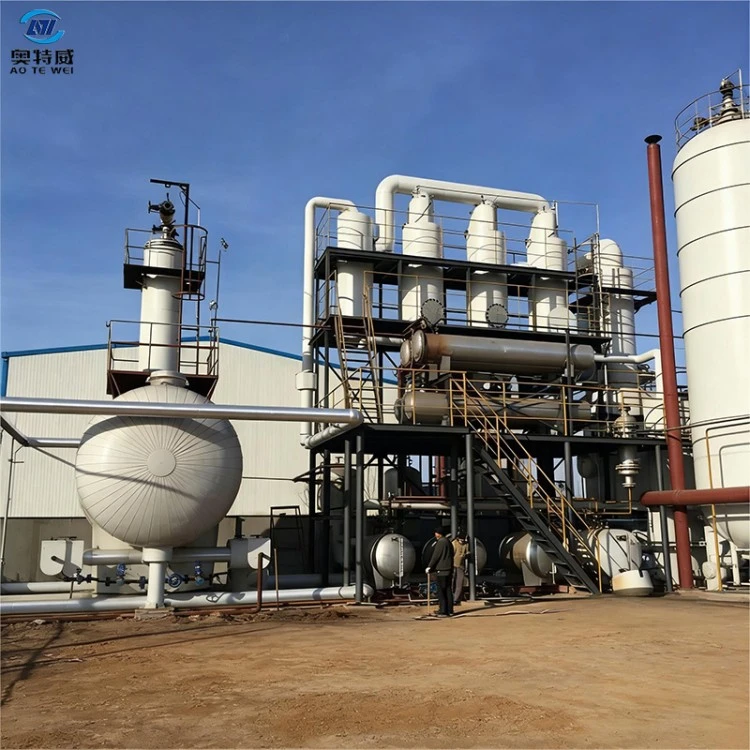

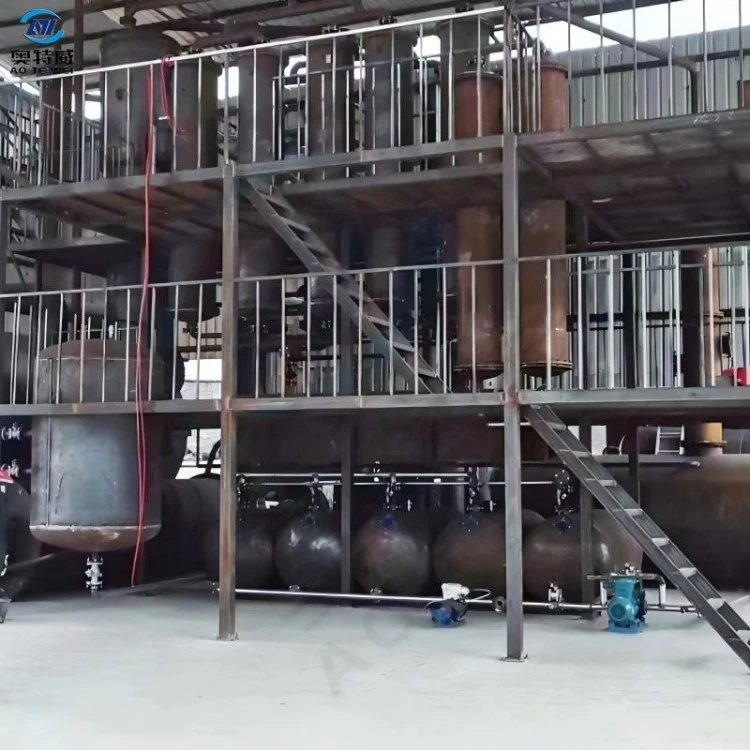

Modular Complete-set Pilot Distillation Column. It is a medium-scale rectification equipment oriented to process R&D and small-batch pilot-scale verification. It realizes continuous vacuum rectification separation to carry out component cutting and purification tests for materials, obtain real operating process parameters, provide reliable data support for subsequent industrial scale-up production, and also support small-batch product manufacturing. Reference investment: Starting from USD 220,000.
| Technical Parameter of the Pyrolysis plant | |||
| 1 | Suitable Raw Materials | Waste Engine Oil, Fuel Oil, Crude Oil | Waste Engine Oil, Fuel Oil, Crude Oil |
| 2 | Structure | Horizontal Rotation Type | Horizontal Rotation Type |
| 3 | Reactor Size | φ2600×6600mm φ2800×8000mm φ3000×8800mm |
φ1500×2000mm φ1800×4000mm φ2000×600mm |
| 4 | Work Pressure | Normal Pressure | Normal Pressure |
| 5 | Oil Yield | 85%~95% | 85%~95% |
| 6 | Work Pressure | Normal Pressure | Normal Pressure |
| 7 | Power | 15-25kw/H | 15-25kw/H |
| 8 | Heating Method | Indirect Heating | Indirect Heating |
| 9 | Type of Installation | Without Foundation | Without Foundation |
| 10 | Cooling Method | Cycling Water | Cycling Water |
| 11 | Noise dB (A) | ≤ 85 | ≤ 85 |
| 12 | Cooling Method | Cycling Water | Cycling Water |
| 13 | End Product | Non-standard Diesel Oil | Non-standard Diesel Oil |
| 14 | Manpower | 4-6/shift | 2-4/shift |
Features
Segmented modular distillation-column structure:
The Pilot Distillation Column adopts segmented assembly design with flexibly replaceable column internals. Different internals such as corrugated packing, pall rings and sieve trays can be loaded. Customers can adjust internal column structure according to material separation requirements to meet diverse separation-accuracy demands.
High-precision multi-loop measurement & control system:
Equipped with multi-point on-line acquisition positions for temperature, pressure and liquid level, it conducts real-time monitoring in multiple zones including column top, column middle and column kettle. The reflux ratio of the Pilot Distillation Column can be precisely adjusted. The whole system supports data recording and storage to fully preserve process data during tests.
Continuous negative-pressure rectification operation system:
Matched with a high-stability vacuum system, it enables long-term continuous negative-pressure rectification. It adapts to heat-sensitive materials by lowering operating temperature and reducing thermal cracking of materials. Switching between batch and continuous operation modes is available flexibly.
Safety interlock & sampling-port design:
The Pilot Distillation Column is fitted with multi-point safety pressure relief and over-temperature & over-pressure interlock protection. Multiple sampling ports are reserved on the column body and pipelines. Samples from column-top, column-kettle and side-draw materials can be collected anytime during tests for component-purity detection.
Advantage
Provides reliable basis directly for industrial scale-up:
Different from lab-scale test equipment, this unit simulates real industrial rectification working conditions. Process parameters including temperature, vacuum degree and reflux ratio can be directly adopted for process design of subsequent large-scale production lines and cut trial-and-error costs for industrialization.
Flexibly adjustable column internals for multiple separation conditions:
Column segments are easy to assemble and disassemble. Packing and trays can be replaced rapidly. One single set of equipment completes separation tests for multiple materials without purchasing several sets of test equipment repeatedly.
Application Scenarios
- R&D of new-material and fine-chemical processes: Universities, chemical research institutes and enterprise R&D centers conduct rectification-separation tests for solvents and fine chemicals to screen optimal process conditions.
- Pilot-scale verification for solid-waste-resource-utilization processes: Carry out component-separation tests for waste-plastic and waste-tire pyrolysis oil, verify pyrolysis-oil rectification-cutting processes and complete pre-process verification for industrial pyrolysis-refining projects.
- R&D and small-batch production in the bio-energy sector: Separate and purify crude glycerine, bio-based oil and biodiesel components, verify rectification processes for bio-oil and produce high-purity target products in small batches.
- Petrochemical bench-scale tests: Perform component-cutting tests for slop oil and waste mineral oil, evaluate rectification feasibility of oil products and acquire actual working-condition parameters.
Packing & Shipping
- Segmented column sections of the distillation column are treated for rust prevention, and both-end flanges are sealed and protected by cover plates. Large-size column sections are bare-packed and fixed on transport bases with reinforced protection to avoid deformation caused by collision during transportation.
- Precision components such as instrument control cabinets, temperature-pressure sensors and regulating valves are individually packed in shock-proof and moisture-proof solid-wood cases filled with cushioning materials, with transport warning marks printed on case surfaces.
- Scattered parts including column internals, trays, sealing gaskets, valves and pipe fittings are packed by category. Each package is attached with a parts-number list for checking and counting upon arrival.
- Complete sets of technical documents are delivered with goods: column assembly drawings, process flow diagrams, electrical control schematic diagrams, operation manuals, hydrostatic & air-tight test reports for the column, material certificates, spare-parts lists and full-set customs-declaration & clearance documents.
- Segmented column sections and skid-mounted units are sized for standard containers. They are disassembled and packed for 40HQ sea freight to reduce logistics difficulties for over-size equipment.
FAQ
Q1: What is the processing capacity range of this pilot distillation column?
A: The standard pilot scale model has a feed capacity of 1 3 tons per day. Column height and diameter can be customized. Equipment specifications can be adjusted according to material separation difficulty. Both batch and continuous operation modes are supported.
Q2: Can column internals be replaced at a later stage?
A: Yes. The column body is detachable by segments. Packing and sieve trays can be replaced afterwards to change separation efficiency and adapt to different material separation requirements.
Q3: What utility conditions are required for equipment operation?
A: Power supply and circulating cooling water are required. Heat sources such as thermal oil furnace, steam and gas fired heating are optional. The vacuum system also requires cooling water. Adapted design can be offered according to customers' on site conditions.
Q4: Can parameters obtained from pilot tests be directly used for designing large scale industrial units?
A: This unit simulates real industrial working conditions, and the obtained process parameters serve as core references for industrial scale up. For materials with complex physical properties, we can also provide technical suggestions for process scale up.
Company Profile & Production Capacity
Shangqiu Aotewei Environmental Protection Equipment Co., Ltd. holds pressure-vessel manufacturing qualifications. It focuses on the R&D and manufacturing of complete sets of pyrolysis, distillation and rectification equipment, and owns complete production lines for R&D-design, machining, assembly and pre-delivery testing.
Our company can independently complete the whole workflow including process calculation for pilot distillation columns, column design, selection of column internals, segmented manufacturing, hydrostatic & air-tight tests and pre-delivery pre-commissioning. We supply both standard pilot-scale rectification equipment and customized development according to customers' material-separation targets.
Our products serve scientific-research institutions, new-material chemical enterprises and resource-utilization factories at home and overseas. Apart from hardware equipment, we also deliver supporting services including material evaluation, process-scheme suggestions, operation training and remote technical support. We help customers finish pilot-scale tests smoothly and provide technical support for the implementation of subsequent industrial projects.
