Shangqiu Aotewei Environmental Protection Equipment Co., Ltd. is one of the leading manufacturers and suppliers of petroleum refinery plant in China. We are committed to providing high quality customized products with competitive price. If you're going to buy ISO certified petroleum refinery plant, welcome to get quotation from our factory.
Product Name

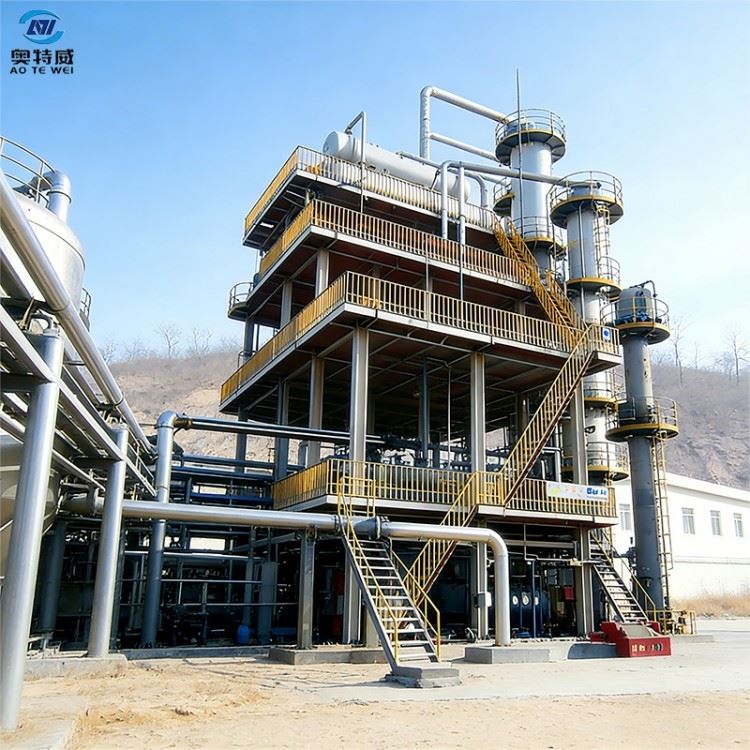

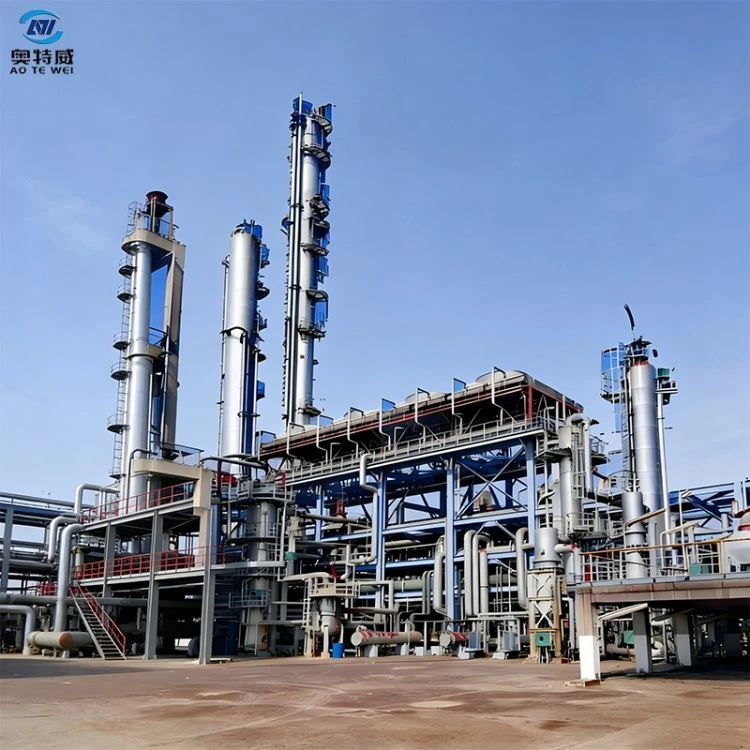

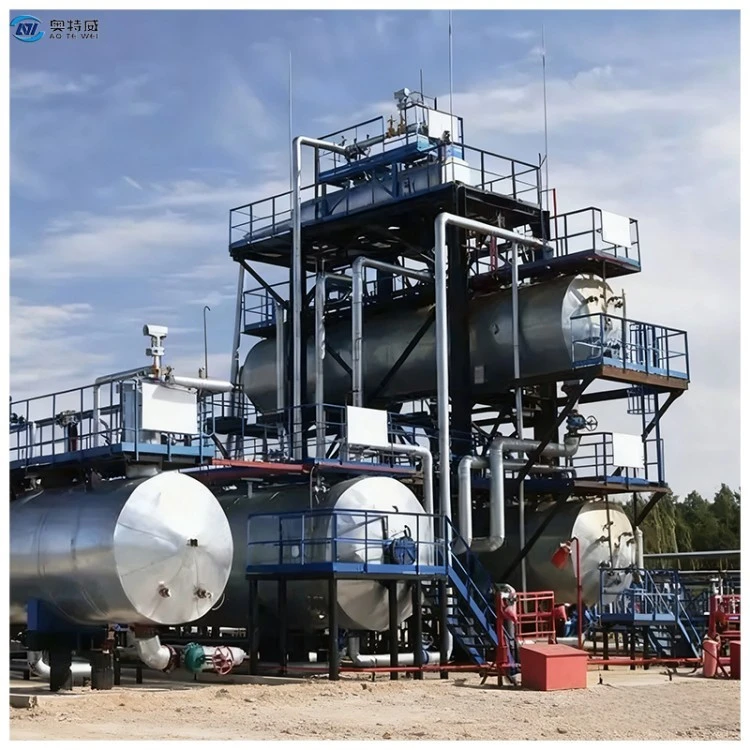

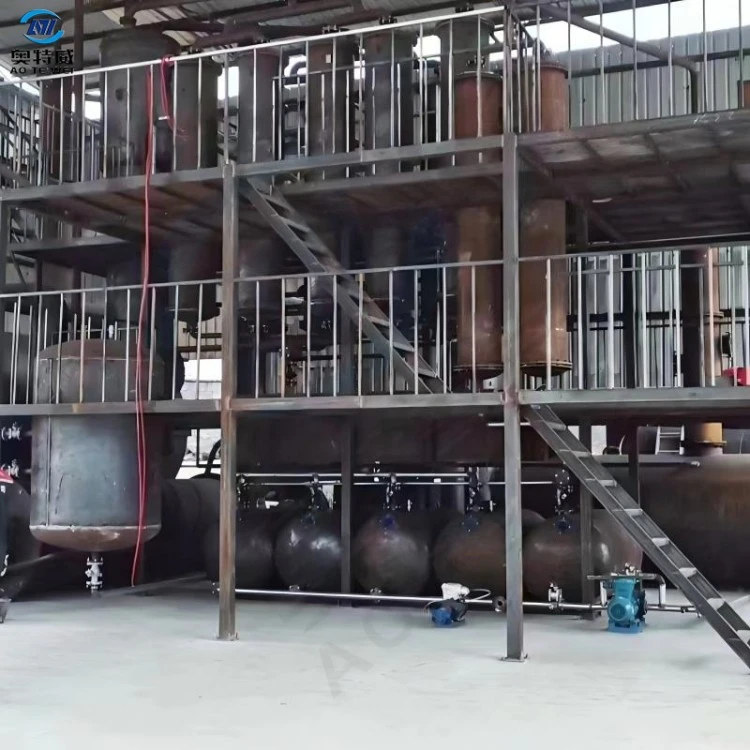

Complete-Set Full-Process Clean Petroleum Refinery Plant. Taking conventional crude oil as raw material, it adopts the combined process of crude-oil pretreatment-atmospheric-vacuum distillation-deep hydrotreating-hydrogen production-sulphur recovery. It produces multiple products including ultra-low-sulfur gasoline, ultra-low-sulfur diesel, liquefied petroleum gas, wax oil, residual oil and industrial sulphur. It is suitable for full-process construction projects of medium-and-small-scale refineries.
| Key attributes - Vertical Distillation Equipment | ||
| 1 | Attribute | Value |
| 2 | Oil Type | Diesel |
| 3 | Phase | Three Phase |
| 4 | Voltage | Customized |
| 5 | Condition | New |
| 6 | Warranty | 1 Year |
| 7 | Raw Material) | Crude Oil, Used Ship Oil |
| 8 | Place of Origin | Henan, China |
| 9 | Brand Name | AOTEWEI |
| 10 | Name | Distillation Equipment |
| 11 | Advantages | Energy Saving, High Efficiency and Environmental Protection |
| 12 | Color | Customized |
| 13 | Function | Refined waste oil, tire‑derived oil, plastic‑derived oil, kitchen waste oil, etc. |
| 14 | Product Name | Refine equipment |
| 15 | After-sales Service Provided | Online Support |
| 16 | Type | Vacuum Filtration |
Features
Crude-oil desalting-dehydration pretreatment unit:
The petroleum refinery plant is equipped with a two-stage electric desalting and dehydration system. Under conditions of 110-130 ℃ and high-voltage electric field, salts, moisture and mechanical impurities in crude oil are removed. The water-removal rate and salt content of crude oil are controlled at extremely low levels, which effectively protects heating furnaces and hydrotreating reactors and extends the long-term service life of the plant.
Atmospheric-vacuum distillation and fractionation unit:

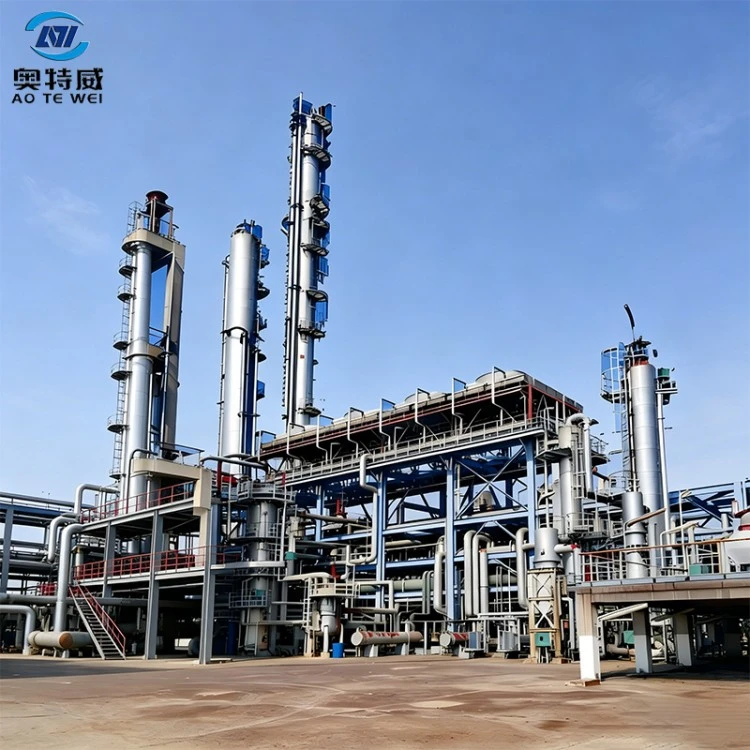

Desalted crude oil recovers waste heat from diesel and residual oil via a heat-exchange network before entering the atmospheric heating furnace and atmospheric fractionation tower. Naphtha is obtained at the tower top and straight-run diesel is drawn from side-draw outlets. Atmospheric residual oil flows into the vacuum furnace and vacuum fractionation tower to produce wax oil from side draws and heavy residual oil at the tower bottom, realizing accurate cutting of multi-component fractions.
Deep diesel hydrofining unit:
Straight-run diesel of the petroleum refinery plant undergoes high-pressure hydrodesulfurization under hydrogen partial pressure of 6.0-8.0 MPa and reaction temperature of 320-360 ℃. Sulfur and nitrogen impurities are deeply removed. The sulfur content of finished diesel is controlled below 8 ppm, exceeding Euro-V standards, with high cetane number and low polycyclic-aromatic-hydrocarbon content to satisfy operating requirements under low-temperature conditions.
Dry-gas hydrogen production + naphtha hydrotreating unit:
Self-produced C1~C4 dry gas is used to produce high-purity hydrogen through steam reforming, shift reaction and PSA pressure-swing adsorption for all hydrotreating units of the whole plant. Naphtha undergoes medium-low-pressure hydrotreating to remove sulfur, olefins and heavy metals. After refining and blending, it meets Euro-V gasoline standards with complete self-production and self-consumption of hydrogen.
Environmental-protection recovery system:
The petroleum refinery plant is equipped with MDEA amine-liquid desulfurization plus two-stage Claus sulphur-recovery unit. Hydrogen-sulfide by-product from hydrotreating is recovered into solid industrial sulphur, and tail gas reaches discharge standards after hydro-absorption treatment. A light-hydrocarbon-recovery unit separates liquefied petroleum gas and fuel dry gas; dry gas is recycled for hydrogen production and boilers to realize resource-based utilization of by-products.
Advantage
Full-process clean production:
A complete closed-loop covering primary distillation, dual hydrotreating, hydrogen production and sulphur recovery realizes deep desulfurization and denitrification. It produces Euro-V-grade ultra-low-sulfur oil products complying with stringent environmental-protection and oil-quality standards.
High energy self-sufficiency:
Self-produced dry gas and vacuum residual oil of the whole plant are used as fuel. Self-built utilities including boilers, power supply, hydrogen-production, air separation and flare systems greatly reduce consumption of purchased fuel and media and cut production and operation costs.
Internal recycling of hydrogen resources:
The dry-gas hydrogen-production unit supplies high-purity hydrogen for two hydrotreating units, achieving hydrogen self-sufficiency, lowering purchased-hydrogen cost and improving overall plant economic benefits.
High-value recovery of by-products:
By-products such as liquefied petroleum gas, wax oil and industrial sulphur are recovered for external sales; dry gas is recycled as fuel to realize full resource utilization and expand profit sources for projects.
Manufacturing assurance to ASME standards: Core pressure vessels are designed and manufactured in accordance with ASME specifications with U-stamp certification. Process piping complies with ASME B31.3, delivering high equipment quality and safety reliability suitable for overseas engineering-project construction requirements.
Application Scenarios
- Full-process construction project for medium-and-small-sized refineries: Build a complete refinery production line covering pretreatment, distillation, hydrotreating, hydrogen production and sulphur-recovery with crude oil as feedstock to produce Euro-V-grade finished oil products.
- High-sulfur crude-oil deep-processing project: For crude oil with relatively high sulfur content, deep hydrodesulfurization and sulphur-recovery are adopted to produce low-sulfur clean fuels and realize resource-based utilization of high-sulfur crude oil.
- Regional finished-oil supply project: Ultra-low-sulfur gasoline and diesel are produced locally to meet regional fuel-supply demands and shorten logistics-distribution distance for finished oil products.

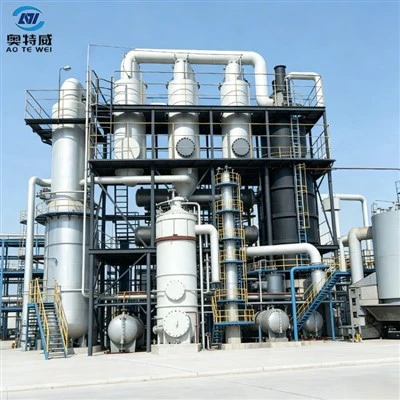

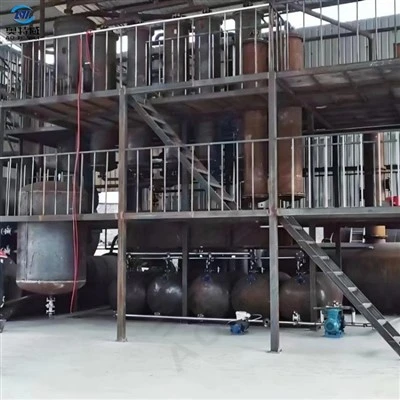

- Waste-oil and pyrolysis-oil refining project: Process waste engine oil, tire pyrolysis oil and other oil feedstocks, and produce qualified oil products via hydrofining to extend the waste-oil resource-recovery industrial chain.
- Petrochemical-feedstock supporting-processing project: Produced naphtha, liquefied petroleum gas and wax oil can serve as feedstock for petrochemical units, providing basic raw-material sources for downstream chemical production.
Packing & Shipping
- Main equipment modules are split to fit 40HQ container dimensions. Extra-long and extra-large components are shipped by bulk ro-ro vessel. Complete packing lists are provided and customers' on-site loading supervision is supported.
- Full-set technical documents are delivered together with goods: PID process flow diagrams, equipment assembly drawings, ASME pressure-vessel inspection reports, operation & maintenance manuals, catalyst loading schemes, wearing-part lists and full-set customs-declaration documents.
FAQ
Q1: What kinds of crude oil can this petroleum refinery plant process?
A: It can process conventional crude oil and sulfur bearing crude oil. Equipped with two stage electric desalting dehydration pretreatment, it can handle salt and water containing crude oil. Crude oil with high sulfur content can be processed into low sulfur clean oil products through deep hydrodesulfurization and sulphur recovery.
Q2: What products can the plant produce?
A: It can produce various products including ultra low sulfur gasoline, ultra low sulfur diesel, liquefied petroleum gas, wax oil, heavy residual oil and industrial sulphur, featuring diversified product mix and high added value.
Q3: What standards can diesel quality reach?
A: After high pressure deep hydrodesulfurization, diesel sulfur content is controlled below 8 ppm, exceeding Euro V standards. It has high cetane number and low polycyclic aromatic hydrocarbon content, and meets application requirements under low temperature conditions.
Q4: What is the hydrogen source for the plant?
A: An on site dry gas hydrogen production unit adopts self produced C1~C4 dry gas for high purity hydrogen production via steam reforming and PSA pressure swing adsorption, realizing hydrogen self sufficiency without external hydrogen purchase.
Q5: What about the construction cycle and investment scale of the plant?
A: Adopting modular skid mounted construction, core pressure vessels are pre fabricated off site according to ASME standards, which greatly reduces on site assembly work and shortens the construction cycle. Specific investment shall be defined at the budgeting phase according to project scale.
Client References
Our complete-set petroleum-refining and waste-oil-refining equipment has served a large number of domestic and overseas clients, covering waste-oil recycling enterprises, owners of small-scale refineries, oil-product traders and operators of waste-tire & waste-plastic pyrolysis projects. Rich experience in project delivery and on-site service has been accumulated. In numerous cooperation projects, we provide full-range services from process design, equipment manufacturing and installation guidance to personnel training, helping clients complete equipment commissioning and achieve stable production. Hydrofining and deep-desulfurization technologies help clients produce clean oil products meeting high standards and improve product added value and market competitiveness. Designs of dry-gas hydrogen-production and waste-heat recovery significantly reduce clients' fuel and operating costs and have won wide-spread recognition and positive feedback. We have established complete client files and after-sales-return-visit mechanisms to regularly track equipment operating conditions and provide process-optimization suggestions according to changes in clients' raw-material properties. With reliable equipment quality, timely spare-parts supply and professional technical support, we have built long-term stable partnerships with many clients and received repeat orders and referrals, continuously improving product reputation.
