Shangqiu Aotewei Environmental Protection Equipment Co., Ltd. is one of the leading manufacturers and suppliers of continuous rubber pyrolysis plant in China. We are committed to providing high quality customized products with competitive price. If you're going to buy ISO certified continuous rubber pyrolysis plant, welcome to get quotation from our factory.
Feature
● Fully-automated industrial process: This Continuous Rubber Pyrolysis Plant adopts a PLC intelligent control system to realize non-stop full-process operation from automatic feeding and high-temperature pyrolysis to automatic carbon-black discharging, greatly reducing manual-intervention requirements.

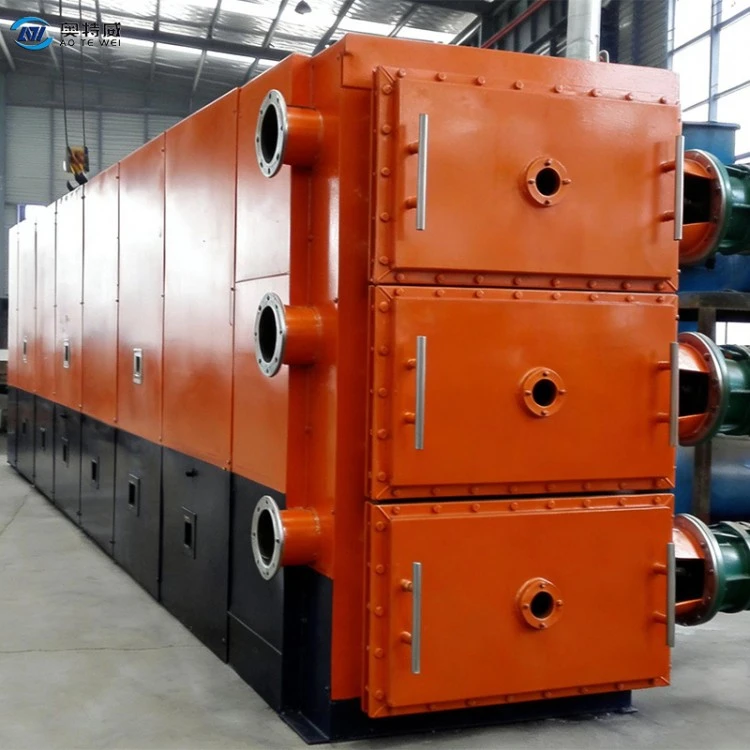

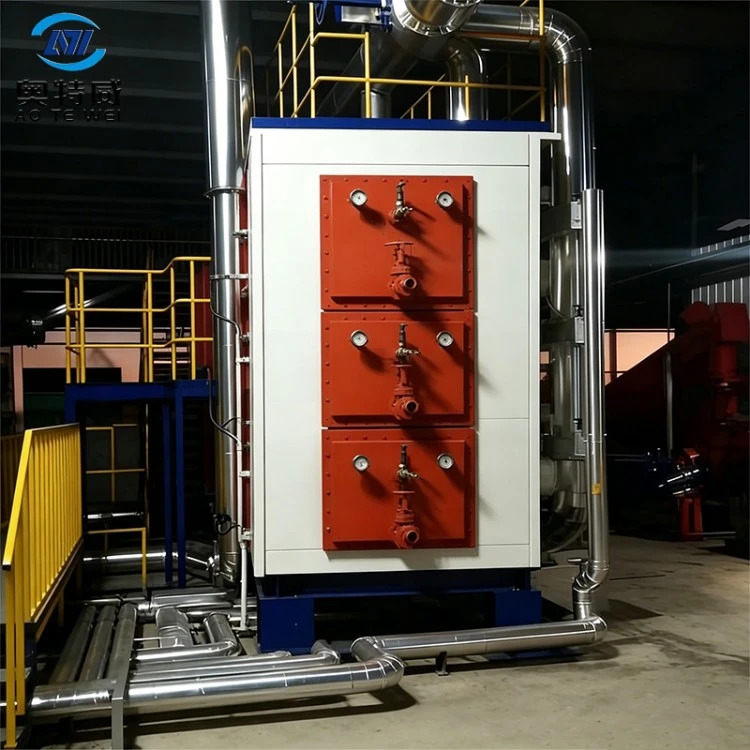

● High-efficiency horizontal rotary reactor: The core reactor of Continuous Rubber Pyrolysis Plant is made of special Q345R boiler steel with outstanding high-temperature resistance and pressure-bearing performance, ensuring long-term stable operation within the pyrolysis temperature range of 450~540 °C.

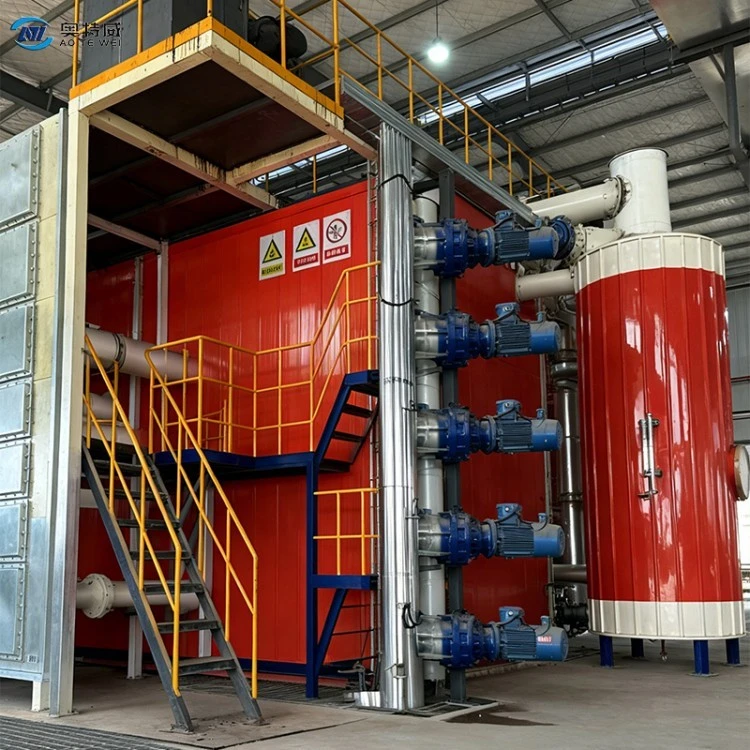

● Multi-stage condensation and dust-removal system: Equipped with advanced industrial-grade condensers featuring large condensation area and high heat-exchange efficiency, it remarkably improves the recovery quality and speed of pyrolysis oil.
● Synchronous gas recovery & utilization: A non-condensable-gas purification device is built into the system. Combustible gas generated from pyrolysis is recovered and directly reused for reactor heating, realizing energy self-sufficiency and cutting operating costs.
| Continuous cracking equipment - key parameters | |
| Property name | Attribute content |
| Equipment capacity | 10~20 t/d,30~40 t/d,20~30 t/d,40~50 t/d,100 TPD |
| Mechanical test report | provided |
| Temperature range(°C) | 450~500 °C,500~540 °C |
| Processing technology | continuous process |
| Residence time | 60~80 min,40~60 min |
| Core selling point | high security level |
| Core components | Pressure vessels, pumps |
| Factory video inspection | provided |
| Warranty period | 1 year |
| Country of origin | Henan, China |
| Brand name | Otway |
| Raw materials | Cracking equipment |
| Raw materials | Waste tires, rubber, plastics |
| Final product | Tire plastic rubber cracking plant |
| Application areas | Converting waste plastic tires |
| Function | Tire plastic rubber cracking plant |
| After-sales service | Online support |
| Advantages | High efficiency |
| Machine type | Fully continuous |
| Marketing type | Product |
| Use | Domestic waste recycling machinery |
Advantage
● Ultimate production efficiency: Compared with traditional batch-type equipment, this continuous-system Continuous Rubber Pyrolysis Plant supports 24/7 non-stop operation, with a maximum daily throughput of 100 tons and material residence time controlled within 40-80 minutes. Its production efficiency increases by over 300%.
● Energy-saving & eco-friendly design: It adopts fully-enclosed slag-discharge and tail-gas-purification processes, with smoke-dust emissions complying with international environmental-protection standards. The exclusive energy-circulation system fully recycles waste heat and greatly reduces external fuel-oil or power consumption.
● High-standard safety guarantee: The unit is fitted with multi-point pressure sensing and temperature-monitoring alarm systems. Core components such as pressure vessels pass strict factory video inspection and pressure tests to guarantee on-site operational safety.
● Low-maintenance & long service life: The reactor is equipped with external stiffeners and double internal spiral guide plates for even heat distribution and anti-deformation performance. The whole equipment enjoys a long warranty period, and key components can serve for 8-10 years.
Application Scenarios

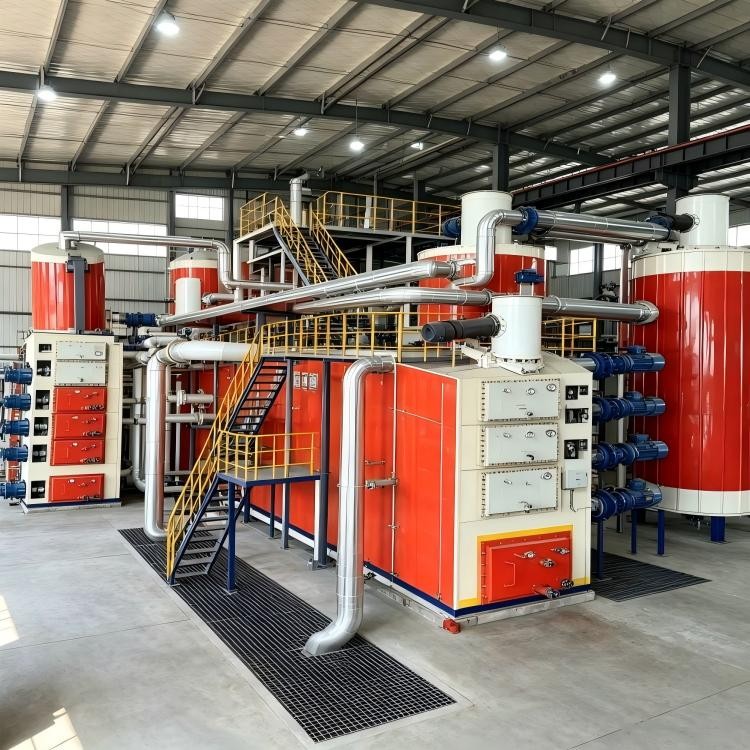

Continuous Rubber Pyrolysis Plant is widely deployed in large-scale solid-waste treatment plants, energy-recovery centers and municipal waste-management systems. It realizes resource conversion of waste tyres, conveyor belts and other rubber products, supplying low-cost fuel oil and high-value carbon black for cement plants and steel mills.
Packing & Shipping
The equipment adopts modular packaging. The core reactor is fixed with steel frames and covered with waterproof and anti-corrosion layers. Global sea shipment via 40HQ / FR / OT containers is supported to ensure safe arrival.
FAQ
We provide multiple customized configurations ranging from 10T to 100T capacity. The density of pyrolysis oil stays stable within 0.82-0.85. To secure continuous production, raw materials are suggested to be crushed into 3-5 cm particles.
Product Certifications
This equipment holds CE certification, ISO 9001 quality certification and pressure-vessel manufacturing license for reliable quality. Continuous Rubber Pyrolysis Plant is your ideal investment choice for circular economy and high returns.
