Shangqiu Aotewei Environmental Protection Equipment Co., Ltd. is one of the leading manufacturers and suppliers of waste oil distillation plant in China. We are committed to providing high quality customized products with competitive price. If you're going to buy ISO certified waste oil distillation plant, welcome to get quotation from our factory.
Product Name

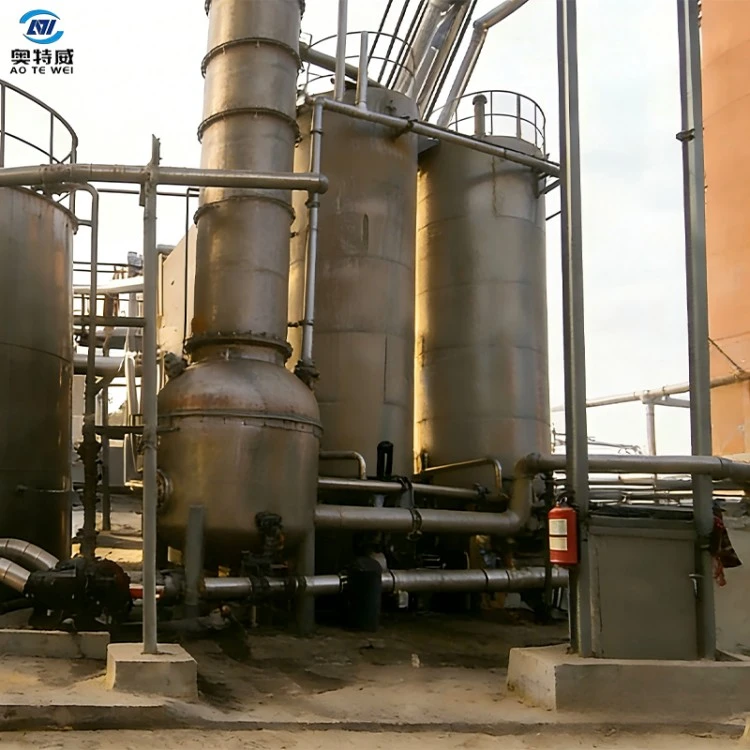

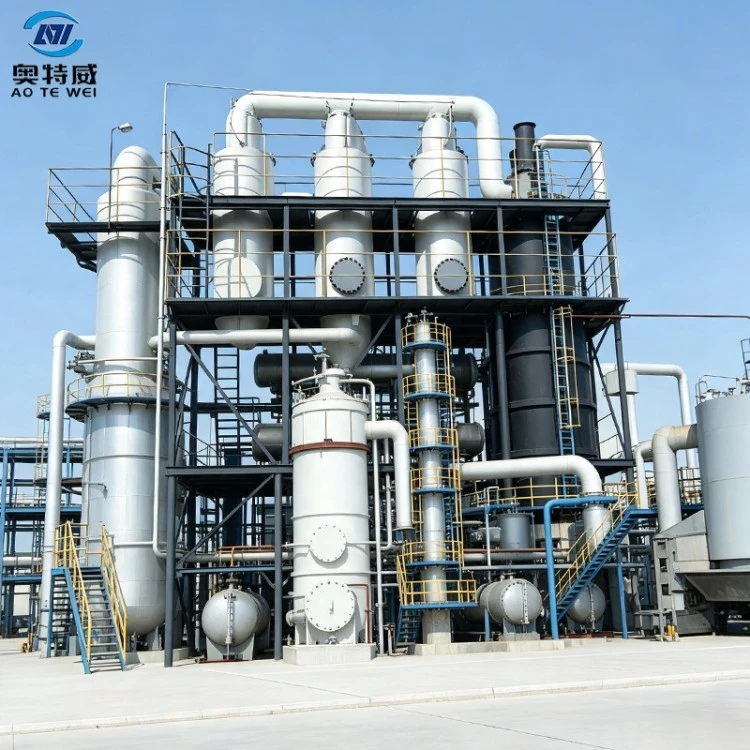

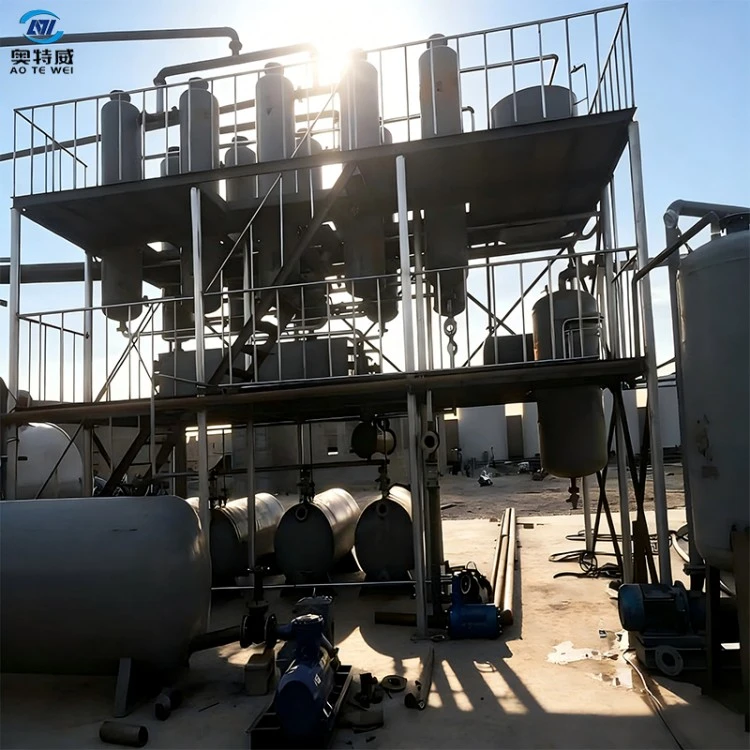

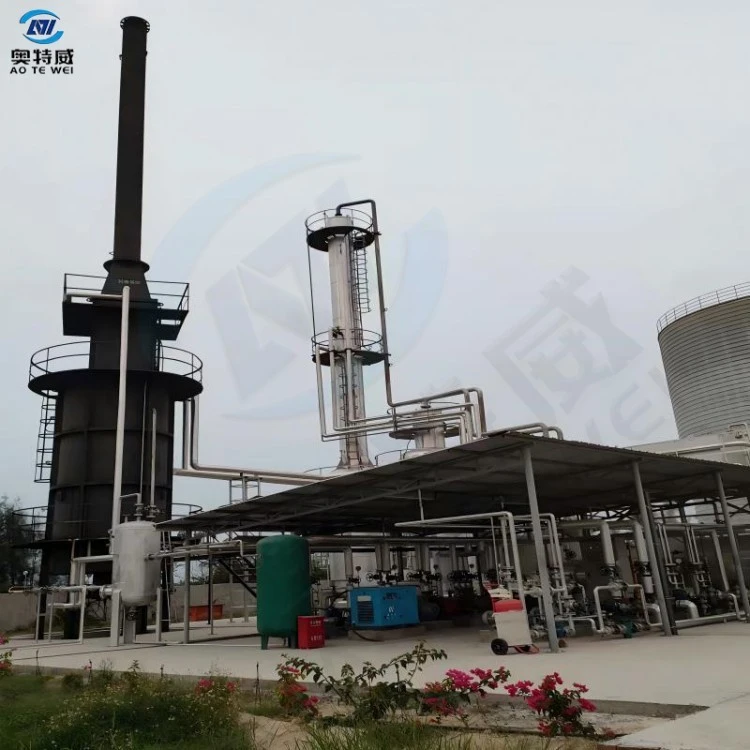

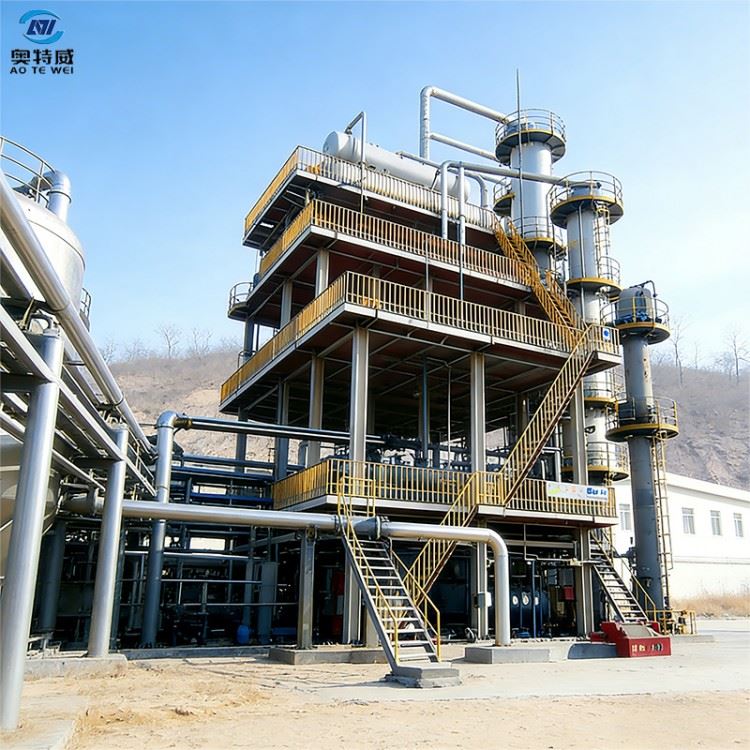

Waste Oil Distillation Plant Complete distillation and refining unit that processes waste oil such as waste engine oil, waste lubricating oil and pyrolysis cracked oil via atmospheric-vacuum distillation and refining, to separate them into multiple high-value products including high-quality fuel oil and non-standard diesel. Investment reference: 500,000 USD
| Technical Parameter of the Pyrolysis plant | |||
| 1 | Suitable Raw Materials | Waste Engine Oil, Fuel Oil, Crude Oil | Waste Engine Oil, Fuel Oil, Crude Oil |
| 2 | Structure | Horizontal Rotation Type | Horizontal Rotation Type |
| 3 | Reactor Size | φ2600×6600mm φ2800×8000mm φ3000×8800mm |
φ1500×2000mm φ1800×4000mm φ2000×600mm |
| 4 | Work Pressure | Normal Pressure | Normal Pressure |
| 5 | Oil Yield | 85%~95% | 85%~95% |
| 6 | Work Pressure | Normal Pressure | Normal Pressure |
| 7 | Power | 15-25kw/H | 15-25kw/H |
| 8 | Heating Method | Indirect Heating | Indirect Heating |
| 9 | Type of Installation | Without Foundation | Without Foundation |
| 10 | Cooling Method | Cycling Water | Cycling Water |
| 11 | Noise dB (A) | ≤ 85 | ≤ 85 |
| 12 | Cooling Method | Cycling Water | Cycling Water |
| 13 | End Product | Non-standard Diesel Oil | Non-standard Diesel Oil |
| 14 | Manpower | 4-6/shift | 2-4/shift |
Features
Atmospheric-Vacuum Tower-Type Fractionation System:
The main distillation tower adopts multi-stage tray and high-efficiency packing structure to realize precise separation of fractions with different boiling ranges. It can produce multiple products such as light fuel oil, non-standard diesel and base oil simultaneously to meet diversified sales demands.
Tube Furnace Indirect Heating Process:
The tubular heating furnace delivers uniform indirect heating for feed oil. Stable heating avoids local overheating and coking. It protects oil quality and greatly extends the overall service life of equipment.
Bleaching Earth Adsorption & Decolorization Refining Unit:
Equipped with dedicated bleaching-earth decolorization tower. It efficiently adsorbs and removes colloids, pigments and impurities inside oil, greatly improving chroma and purity of finished oil. Stable-quality end products are ready for direct sales.
Self-Balancing Gas-fired Heating System:
Non-condensable combustible gas generated during distillation is recovered as heating heat source for energy self-sufficiency. It reduces reliance on external fuel and effectively cuts unit energy consumption and operating cost.
Advantage
Precise Fractionation with Diversified Products:
Tower-type atmospheric-vacuum fractionation yields multiple products including fuel oil and non-standard diesel at the same time. It expands customers' sales channels and improves overall profitability.
Self-supplied Gas with Low Energy Cost:
Self-produced non-condensable gas supplies heat to reduce external fuel procurement. It delivers outstanding long-term operating economy with lower unit production cost.
Significantly Improved Oil Quality:
Treated by tube furnace refining and bleaching-earth decolorization, finished oil features clear & transparent appearance, high flash point and ultra-low impurities. With stable quality, it can be sold directly or used for industrial combustion.
Durable Material & Convenient Maintenance:
High-temperature contacting components adopt corrosion-resistant and high-temperature-resistant materials. Heat-exchange and distillation parts own robust structure with long maintenance cycle, lowering later-stage operating expenses.
Application Scenarios
- Centralized Waste Oil Storage & Regeneration Plant: Large-scale processing of stored waste oil such as waste engine oil and waste lubricating oil. Fractionated and refined non-standard diesel and fuel oil can be sold on the market.
- Pyrolysis Oil Fractionation & Refining Project: Matched with pyrolysis equipment for further fractionation and purification of pyrolysis oil from waste tyres and waste plastics, improving product added-value and marketability.
- Industrial Fuel Oil Blending Center: Waste oil from various sources is uniformly distilled and refined, then blended into industrial fuel oil with stable calorific value and qualified quality.
- Auxiliary Unit for Hazardous Waste Disposal Center: Serves as oil recovery section inside hazardous waste disposal plants. It distills and recycles oil-containing waste liquid to complete the solid-waste treatment chain of the plant.
Packing & Shipping
The plant is transported in modular split-delivery mode. Functional units including main distillation tower, heat exchangers and control cabinets are shipped separately. After rust removal and anti-corrosion treatment, large tower bodies and main components are firmly secured inside 40HQ, FR (flat-rack) or OT (open-top) containers. Precision control cabinets and sensors are packed within vacuum waterproof wooden cases. We provide packing list, equipment dimension & weight sheet, general layout drawing and full set of customs-clearance documents. Trade terms of EXW, FOB, CIF are supported to ensure safe and intact global ocean transportation.
FAQ
Q1: What feedstock oil can this plant process?
A: It can handle waste engine oil, waste lubricating oil, pyrolysis cracked oil and various waste mineral oil. Process parameters can be adjusted according to properties of different feedstock, and customized solutions are available.
Q2: What products can be obtained after distillation?
A: Light fuel oil, non standard diesel and other products can be produced via tower type atmospheric vacuum fractionation. With bleaching earth refining configuration, oil becomes clear and transparent, which can be used as industrial fuel or sold directly.
Q3: How many operators are needed for the complete plant?
A: Supported by centralized intelligent control system, about 2 4 operators per shift are enough for central control monitoring and on site inspection during normal production with simple operation.
Q4: Does the plant consume large energy during operation?
A: Self balancing gas fired heating together with waste heat recovery realizes energy self sufficiency. External fuel consumption is greatly reduced for favorable long term economy.
Q5: How about tail gas treatment? Can it meet environmental requirements?
A: The system is equipped with waste gas purification unit. Flue gas after combustion meets emission standards and complies with industrial environmental protection regulations of multiple countries, suitable for industrial parks with strict environmental supervision.
Company Profile & Production
Shangqiu Aotewei Environmental Protection Equipment Co., Ltd. is located in Shangqiu, Henan Province. It is a comprehensive environmental-protection enterprise integrating R&D, design, production, installation, commissioning, sales and after-sales service.
Our main products include continuous-type and batch-type pyrolysis equipment for waste tyres, waste plastics, oil sludge and other waste resources, as well as waste oil distillation plant and waste oil recycling regeneration plant. Supporting systems such as desulfurization, dust removal, deodorization, denitrification and carbon black collection are also available.
We have 5 senior technicians, 8 engineers and over 70 professional technical personnel with strong scientific research and engineering capacity. We strictly comply with industrial manufacturing standards and quality-control systems. As an innovative enterprise, we take the lead in applying new technologies such as zirconium-aluminum insulation modules in the industry.
Our heavy-duty workshop is equipped with automatic plate-rolling, welding, heat-treatment and non-destructive testing equipment. Strict inspection is implemented for all pressure-vessel components. Up to now, we own more than 10,000 clients and our products are exported to 32 countries and regions worldwide. We have gained wide trust from domestic and overseas customers by reliable quality and complete after-sales service, and keep promoting the development of global green circular economy.
