Shangqiu Aotewei Environmental Protection Equipment Co., Ltd. is one of the leading manufacturers and suppliers of mini edible oil refinery plant in China. We are committed to providing high quality customized products with competitive price. If you're going to buy ISO certified mini edible oil refinery plant, welcome to get quotation from our factory.
Product Name

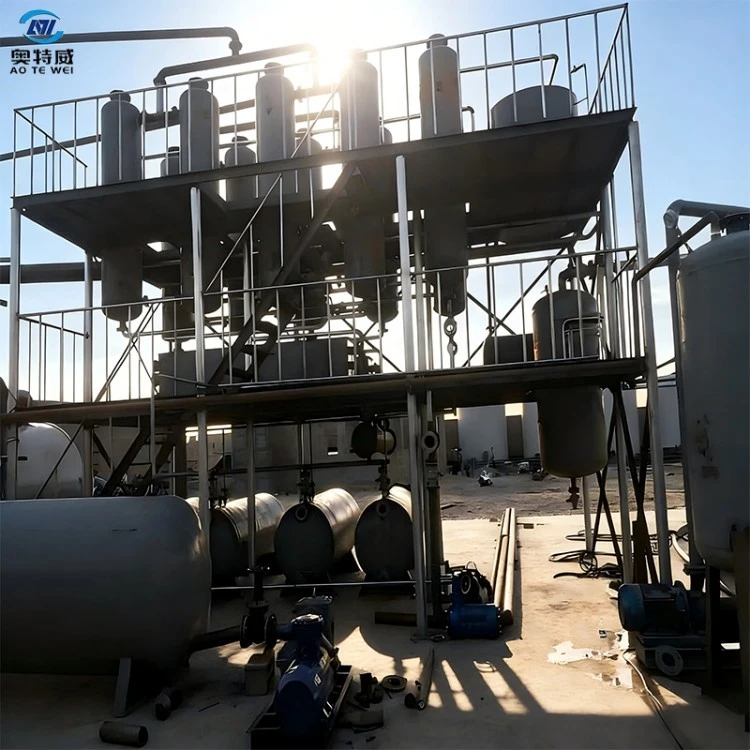

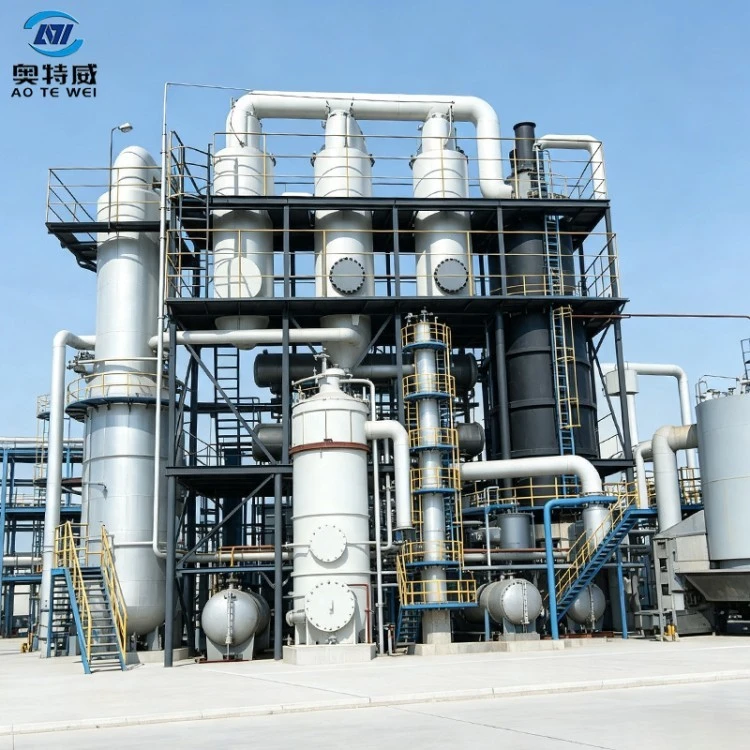

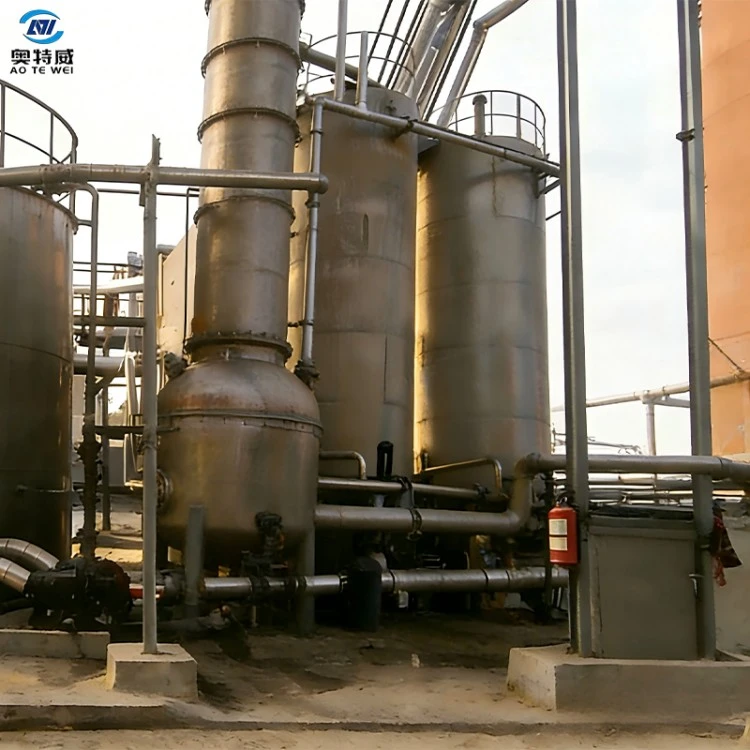

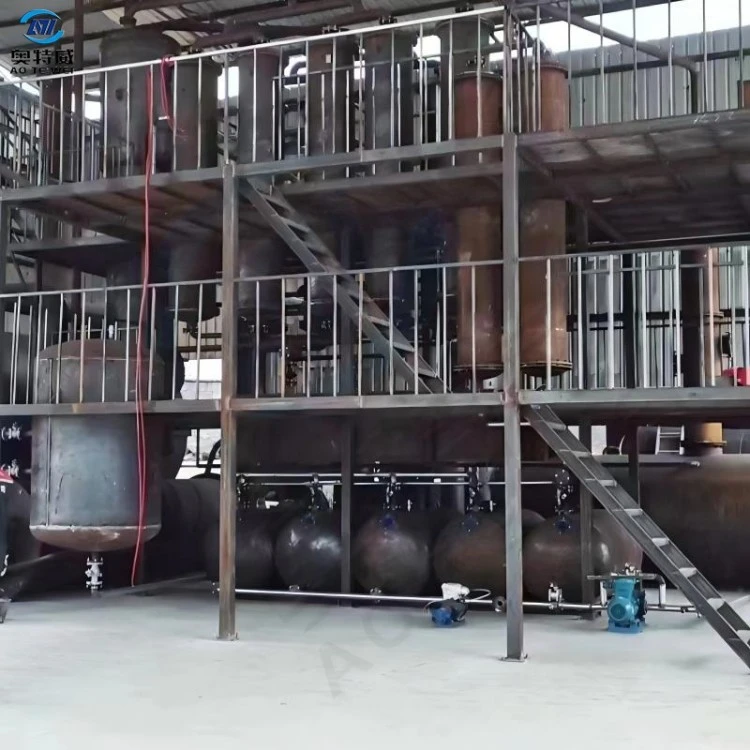

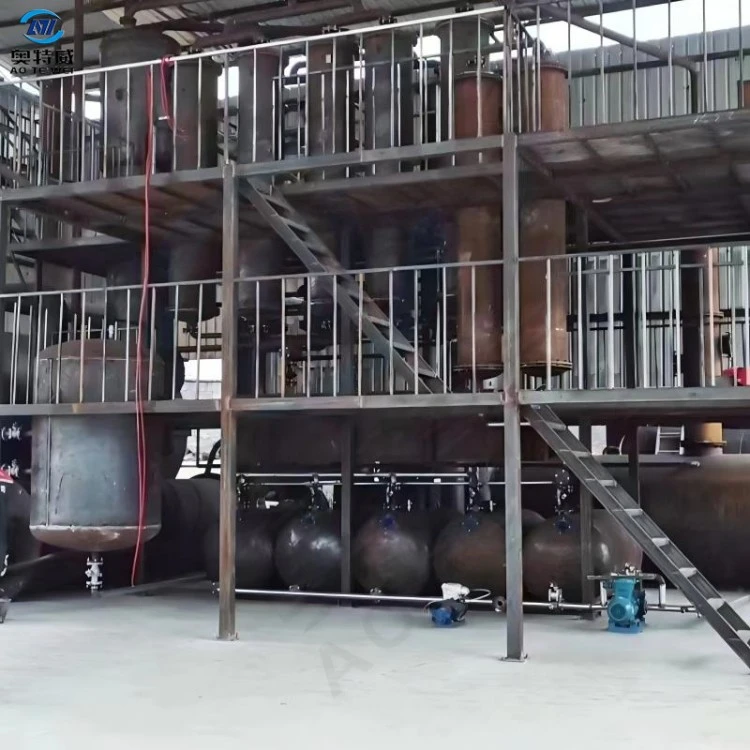

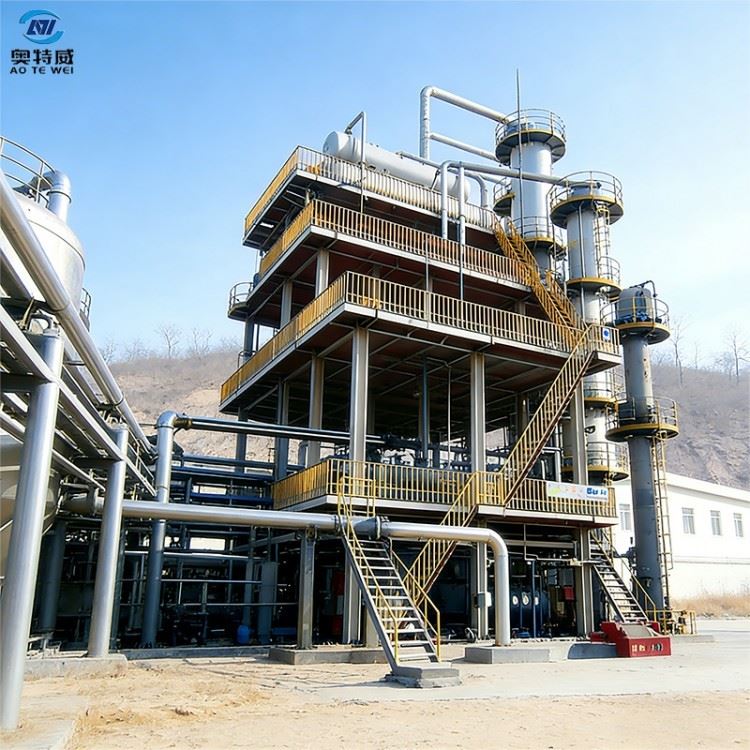

Skid-mounted Mini Edible Oil-to-Fuel Refining System. This full-set mini refining unit is designed to process multiple types of vegetable oil and waste catering oil. Adopting an integrated technical route of raw material purification, catalytic cracking and fractional refining, it restructures oil molecular chains to separate and prepare biofuel resources including biodiesel and gasoline distillates. It is perfectly suited for small and medium-sized oil-to-fuel conversion and resource regeneration projects.
| Key attributes - Vertical Distillation Equipment | ||
| 1 | Attribute | Value |
| 2 | Oil Type | Diesel |
| 3 | Phase | Three Phase |
| 4 | Voltage | Customized |
| 5 | Condition | New |
| 6 | Warranty | 1 Year |
| 7 | Raw Material) | Crude Oil, Used Ship Oil |
| 8 | Place of Origin | Henan, China |
| 9 | Brand Name | AOTEWEI |
| 10 | Name | Distillation Equipment |
| 11 | Advantages | Energy Saving, High Efficiency and Environmental Protection |
| 12 | Color | Customized |
| 13 | Function | Refined waste oil, tire‑derived oil, plastic‑derived oil, kitchen waste oil, etc. |
| 14 | Product Name | Refine equipment |
| 15 | After-sales Service Provided | Online Support |
| 16 | Type | Vacuum Filtration |
Features
1. Front-end Oil Purification System
This mini oil refining unit is equipped with integrated sedimentation, degumming and dehydration modules. It effectively removes colloidal substances, free moisture and residual contaminants from crude oil feedstock, preventing scaling and carbon deposition inside the cracking reactor. It ensures stable and continuous operation of the subsequent cracking and fractionation processes.
2. Low-temperature Catalytic Cracking Technology
Fitted with professional customized catalytic reactors, the equipment performs targeted molecular cracking under controllable temperature and pressure conditions. It breaks down long-chain edible oil molecules into short-chain hydrocarbon components, realizing efficient conversion of raw vegetable oil and waste catering oil into high-value biodiesel and gasoline fractions.
3. Multi-stage Gradient Fractionation & Condensation Recovery System
Equipped with multi-level gradient condensation towers, the system classifies and collects different oil fractions based on varying boiling points. It achieves independent condensation and collection of gasoline and biodiesel components, enabling precise separation and classified output of diverse fuel products.
4. Closed Tail Gas Recycling & Purification Unit
Non-condensable combustible tail gas generated during the cracking process is fully recycled as the internal heating heat source, greatly reducing external fuel consumption. Meanwhile, matched tail gas purification devices effectively control flue gas escape, meeting industrial environmental emission standards.
5. Compact Intelligent PLC Control System
The system realizes linkage monitoring of temperature, pressure and liquid level. Multiple sets of mature oil cracking process parameters are pre-stored in the controller. Operators can switch one-click program parameters according to different raw materials, simplifying operational procedures and adapting to the simple operation demands of small-scale projects.
Advantage
1. Versatile Raw Material Adaptability
The unit supports dual processing of fresh crude vegetable oil and waste catering oil. It can convert various oil materials into biodiesel and gasoline distillates, featuring flexible raw material selection and wide application scope.
2. Integrated Skid Design, Low Site Requirements
Adopting an all-in-one compact layout, the equipment does not require large-scale factory buildings or complex foundation works. It can be installed on ordinary hardened ground with minimal civil engineering investment, which is highly cost-effective for small and medium-sized investment projects.
3. High Energy Self-sufficiency, Low Operating Cost
Combustible tail gas produced by oil cracking is recycled for equipment heating, replacing purchased coal, natural gas and other external fuels. It significantly cuts daily production energy consumption and overall operational expenses.
4. Flexible Product Ratio Adjustment
By fine-tuning cracking temperature, catalyst dosage and fractionation parameters, the output proportion of biodiesel and gasoline fractions can be flexibly adjusted. It enables enterprises to adjust production structure according to market demand and maximize economic benefits.
5. Modular Assembly, Fast Project Implementation
The equipment adopts split modular design, convenient for container transportation and on-site assembly. It greatly shortens project construction and commissioning cycle, making it ideal for overseas small and medium-sized oil recycling investment projects.
Application Scenarios
1. Waste Catering Oil Recycling Projects
Recycle gutter oil, expired edible oil and kitchen waste oil, and process them into standard biodiesel and gasoline fractions to realize harmless treatment and resource utilization of catering waste oil.
2. Farm-side Vegetable Oil Fuel Conversion Projects
On-site processing of self-produced peanut oil, rapeseed oil, palm oil and other agricultural vegetable oils into fuel products for agricultural machinery, generators and on-site power supply.
3. Upgrading of Small and Medium Hazardous Waste Oil Enterprises
Add oil cracking and fuel conversion equipment to enrich waste oil processing business lines, improve waste oil treatment capacity and enhance the added value of terminal products.
4. Overseas Localized Oil Processing Projects
Provide modular complete-set equipment for oil-producing areas in Southeast Asia, Africa and other regions. Local conversion of vegetable oil into fuel avoids high costs of cross-border raw material transportation.
5. Scientific Research Pilot Test Platform
Suitable for research institutions to carry out oil-to-fuel cracking technology experiments, complete small-batch trial production, collect operational data and provide technical reference for large-scale industrial production lines.
Packing & Shipping
1. Core equipment including cracking reactors, fractionation towers and heat exchange condensation tanks are professionally treated with anti-rust and anti-corrosion coatings. All flanges and pipeline interfaces are covered with dust-proof protective caps. Large-volume tank bodies are split and manufactured separately with reinforced base structures for safe bare-container transportation.
2. High-precision electrical accessories such as PLC control cabinets, temperature and pressure sensors, catalyst feeding devices and oil delivery pumps are individually packed in shockproof and moisture-proof solid wooden cases, marked with standard ocean freight labels including This Side Up, Moisture Proof and Fragile.
3. Tower internal parts, sealing gaskets, professional maintenance tools, catalyst auxiliary accessories and wearable spare parts are classified and packaged independently. Each package is attached with a detailed packing list for port inspection and customer acceptance.
4. Main equipment components are optimally split to adapt to 40HQ container sizes. Super-long and special-shaped parts are transported by bulk ro-ro ships. Complete packing documents are provided to support customers' on-site loading supervision.
5. A full set of technical documents are delivered with the goods, including PID process flow charts, equipment assembly drawings, pressure vessel inspection certificates, operation and maintenance manuals, wearable parts lists and complete customs declaration materials.
FAQ
Q1: Can the unit process fresh edible vegetable oil directly?
A: Yes. Fresh vegetable oil can be put into production after simple pretreatment. Considering economic benefits, waste catering oil and expired edible oil are more recommended as the main processing raw materials.
Q2: What is the daily processing capacity of this equipment?
A: The standard model features a daily processing capacity of 1 to 15 tons of oil materials. We support personalized non-standard customization to match customers' actual production scale.
Q3: Can the produced biodiesel and gasoline fractions be used directly as vehicle fuel?
A: The fuel products obtained by cracking and fractionation are primary crude distillates, which require further deep refining to meet vehicle fuel standards. They can be directly used for industrial boiler combustion and generator power generation.
Q4: What are the main consumables during equipment operation?
A: The main consumables are special cracking catalysts and a small amount of auxiliary chemical agents. Most of the equipment heat supply comes from recycled cracking tail gas, and external heat sources are only required for equipment start-up and shutdown.
Q5: What risks will excessive impurities in raw materials cause?
A: Excessive impurities will aggravate reactor coking, block internal structures and shorten the continuous operation cycle. It is necessary to strictly implement front-end pretreatment and conduct regular slag cleaning and maintenance.
Company Profile & Production Capacity
Our enterprise is a professional manufacturer dedicated to the R&D and manufacturing of solid waste treatment, oil thermal cracking and fractional refining complete-set equipment. We hold formal pressure vessel manufacturing qualifications and own standardized production workshops, integrating process research and development, equipment structural design, welding processing, complete machine assembly and on-site commissioning services.
Equipped with full-process component processing production lines, we independently manufacture core equipment such as reactors, fractionation towers and heat exchange devices. We can design exclusive customized process solutions according to customers' raw material characteristics, site conditions and finished product index requirements.
Our product lineup covers pyrolysis equipment, various distillation and cracking units and oil-to-fuel conversion systems. Our equipment has been exported to dozens of countries and regions around the world. We provide one-stop comprehensive services for global customers, including professional process package design, equipment customized manufacturing and remote technical guidance.
