Shangqiu Aotewei Environmental Protection Equipment Co., Ltd. is one of the leading manufacturers and suppliers of grabbing loader in China. We are committed to providing high quality customized products with competitive price. If you're going to buy ISO certified grabbing loader, welcome to get quotation from our factory.
Product Name

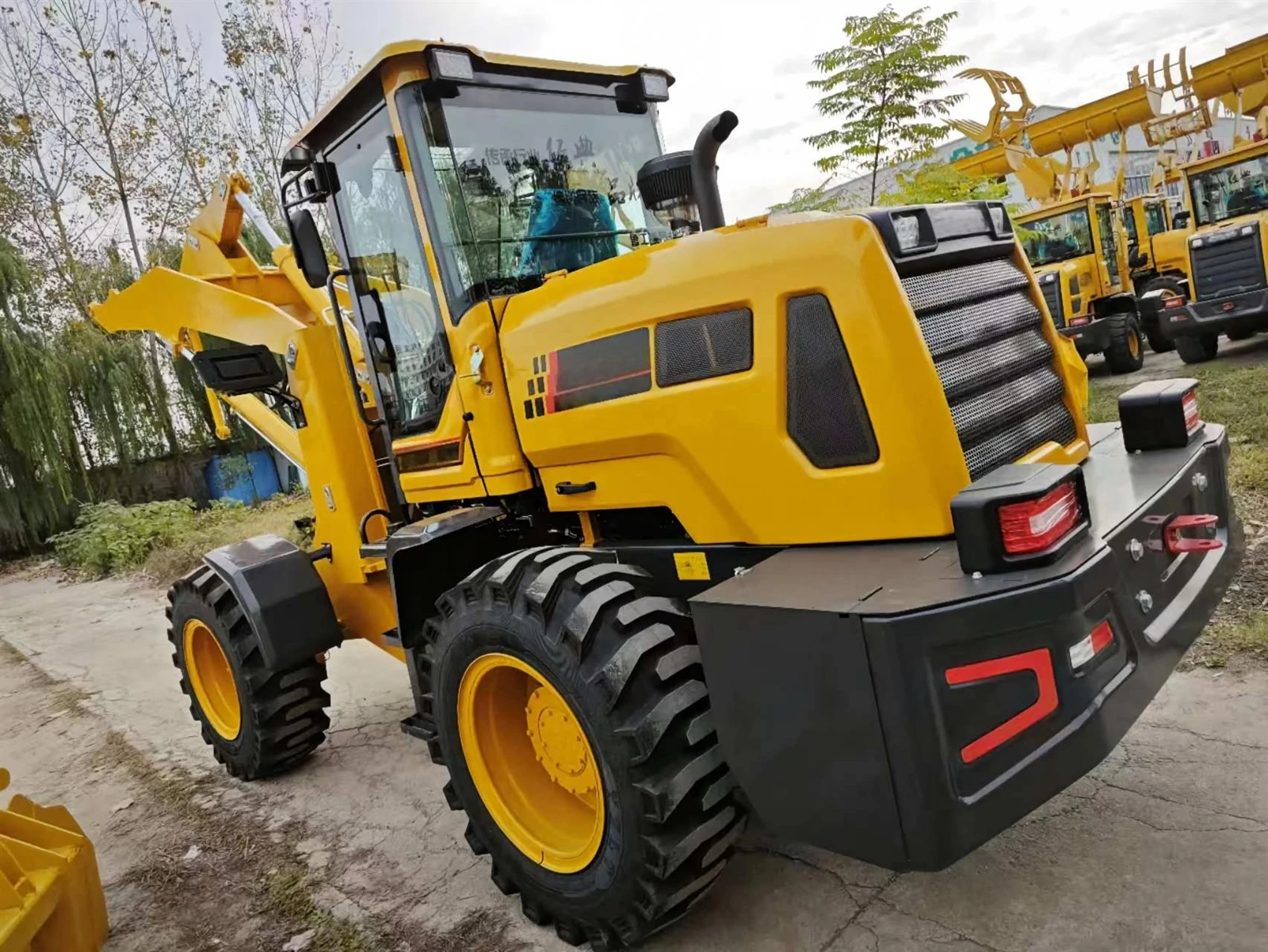

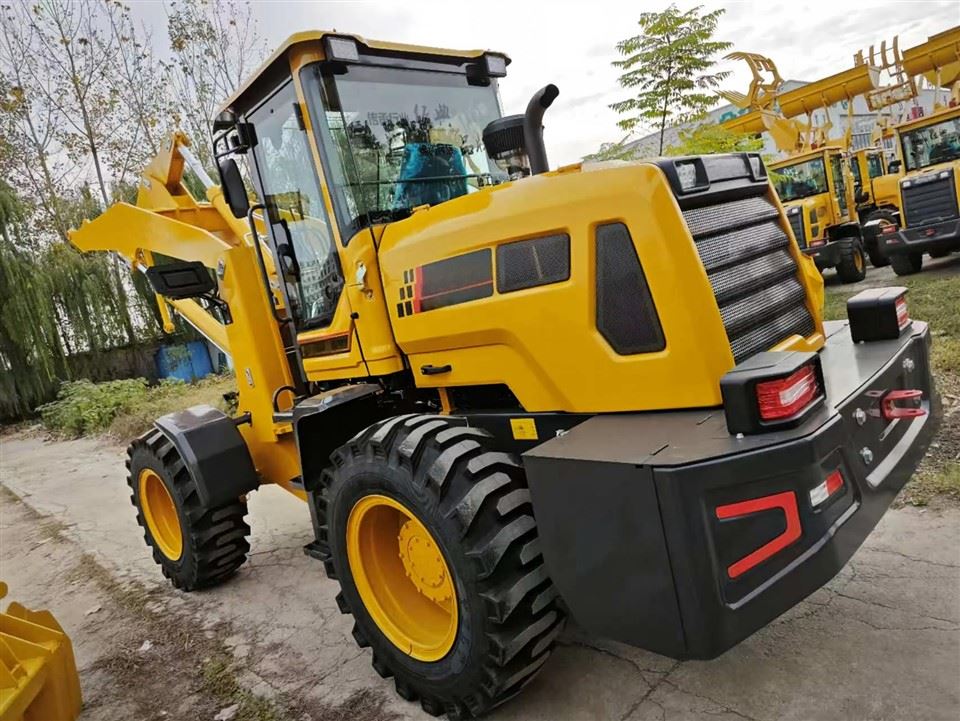

Grab Loader / High-efficiency Heavy-duty Solid Waste Grabbing Loader
| Product main technical parameters | |||
| Length X Width X Height | 7500X2250X2950 | Standard tires | 16/70-24 |
| Wheelbase | 2600mm | tire pressure | 0.35Mpa |
| Maximum discharge height | 1700mm | minimum ground clearance | 350mm |
| Hopper width | 4500mm | ||
| Corresponding discharge distance | 2200mm | Braking method | four wheel brakes |
| Length X Width X Height turning radius |
1550mm | service brake | Air cap oil clamp disc type |
|
Machine parameters |
Engine | ||
| Dou Rong | 1.8m³ | model | Yunnei 4102 Supercharger |
| Rated load | 2200kg | Emission standards | Country II (export only) |
| Overall machine weight | 6500kg | Rated power/speed | 76kw/2400r/min |
| Hydraulic system | Transmission system | ||
| System working pressure | 16.5Mpa | Torque converter form | B265 hydraulic torque converter |
| Boom lifting time | 8s | Gearbox form | Fixed shaft constant mesh type |
| Gear | Other | ||
| Forward/reverse one gear | 0～8/10 | Fuel tank capacity | 85L |
| Forward/reverse second gear | 0～13/30 | main gear pump | 2063 |
Features

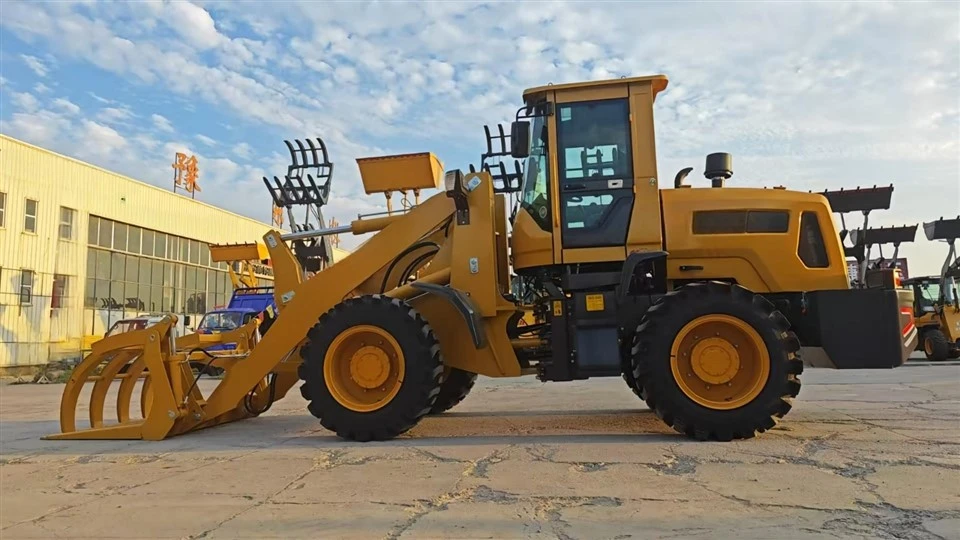

Powerful grabbing system:
Equipped with professional thickened grab bucket with 1.8 m³ bucket capacity and 2200 kg rated load. It is specially designed for bulk materials such as whole waste tires, shredded tire blocks and bulk waste plastics.
Powerful power unit:
Fitted with Yunnei 4102 turbo-charged engine with rated power of 76 kW. It delivers stable power output for high-efficiency operation while meeting export-grade emission standards.
Responsive hydraulic performance:
Adopting advanced hydraulic design, the boom lifting time is only 8 seconds. With fast movements and 4.5-meter maximum dumping height, it can perfectly match hoppers and feeding platforms of various sizes.
Excellent trafficability:
The machine weighs 6.5 tons. It is equipped with four-wheel braking and air-over-oil caliper disc service brake. Its small turning radius of 5 m enables flexible movement inside medium-and-small-size factory yards.
Advantage
Greatly improved automation level:
As an important supporting unit for pyrolysis lines, the Grab Loader realizes mechanized material transfer from stockpile area to feeding system, completely replacing inefficient traditional manual handling.
Reduced overall operating costs:
Thanks to high-efficiency grabbing and transferring performance, only one operator is required for feeding work, which significantly cuts labor expenses.
Robust structure & easy maintenance:
It adopts constant-mesh gearbox and large-capacity 85 L fuel tank. The machine features low failure rate and long-service-life wear-resistant parts, greatly lowering later-stage maintenance costs.
All-terrain working capability:
Optimized for complex site conditions in solid-waste industry. Its 350 mm minimum ground clearance ensures stable operation even on uneven recycling yards.
Application Scenarios
- Front-end processing for waste-tire pyrolysis plant: Unloading and stacking whole tires, and precisely feeding materials to cutting machines or reactor feeding systems.
- Industrial solid-waste recycling park: Transferring and pre-processing bulk waste plastics, paper-mill refuse and leather scraps.
- Stockyard of resource-recovery center: Sorting, stacking and material balancing of solid-waste raw materials on open sites.
- Large-scale linked feeding system: Seamlessly cooperating with Aotewei main pyrolysis equipment to guarantee continuous and stable feeding for fully-automatic production lines.
Packing & Shipping
- Professional nude packing with partial reinforcement: As heavy-duty industrial vehicle, the whole machine is covered with protective film. Key hydraulic cylinders and engine compartment are wrapped with multi-layer shock-proof and moisture-proof materials.
- Split sea-freight solution: For over-dimension units, grab bucket and operator cabin can be disassembled to optimize container space and reduce cross-border logistics cost.
- Standard foreign-trade reinforcement: Steel wire ropes and wooden blocks are applied for securing inside containers, complying with international maritime safety lashing standards.
FAQ
Q: Can this grab loader handle un shredded whole tires?
A: Yes. We have specially reinforced the bearing capacity and clamping force of grab bucket. It delivers excellent grabbing stability for whole tires, especially heavy truck tires.
Q: Does it take long time to learn to operate this machine?

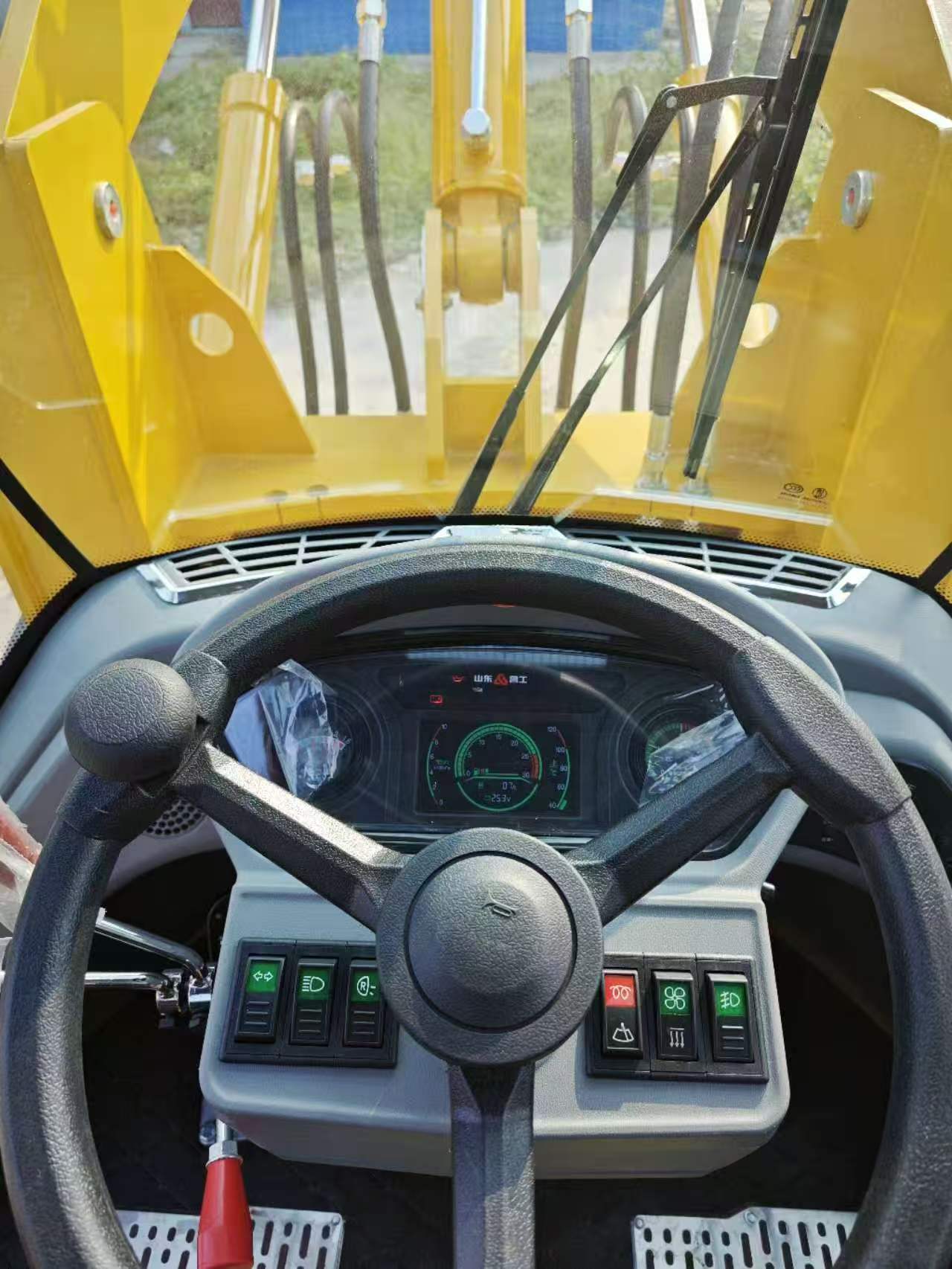

A: No. It adopts user friendly control system with intuitive driving logic. New operators can get familiar with it quickly and perform routine factory work.
Q: Can the grab loader link with existing pyrolysis hydraulic feeder?
A: Absolutely yes. Our technical team will make adaptation according to the hopper height of your pyrolysis line (max dumping height: 4.5 m), to ensure materials fall smoothly into feeding chute without spilling.
Q: Is overseas maintenance convenient?
A: Very convenient. Core power and hydraulic parts adopt widely available brand components. Complete wearing part list and detailed maintenance manual are supplied together with machine to support long term stable operation.
Company Profile & Production Capacity
Shangqiu Aotewei Environmental Protection Equipment Co., Ltd. is one of China's earliest enterprises achieving independent R&D for the whole solid-waste pyrolysis industrial chain. Apart from pyrolysis reactor and distillation technology, we focus on automation upgrade for full-process production lines.
Our modern manufacturing base in Shangqiu, Henan, has a dedicated assembly workshop for auxiliary equipment. Every Grab Loader delivered from our factory has passed load test and high-temperature working simulation test, to satisfy heavy-duty working conditions in pyrolysis workshops. Upholding "industrial-grade quality" for global customers, Aotewei's projects have covered 32 countries and regions including Nigeria, Thailand and Vietnam. We provide one-stop environmental-equipment solutions for worldwide clients with solid research-and-manufacturing strength.
