Shangqiu Aotewei Environmental Protection Equipment Co., Ltd. is one of the leading manufacturers and suppliers of steel wire bundling machine in China. We are committed to providing high quality customized products with competitive price. If you're going to buy ISO certified steel wire bundling machine, welcome to get quotation from our factory.
Product Name

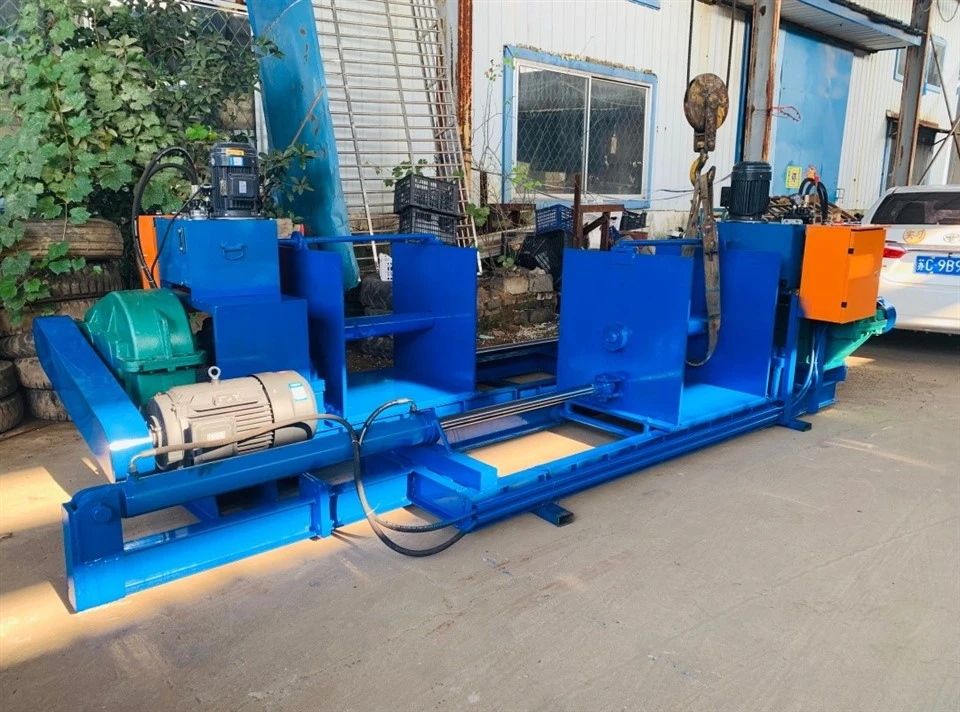

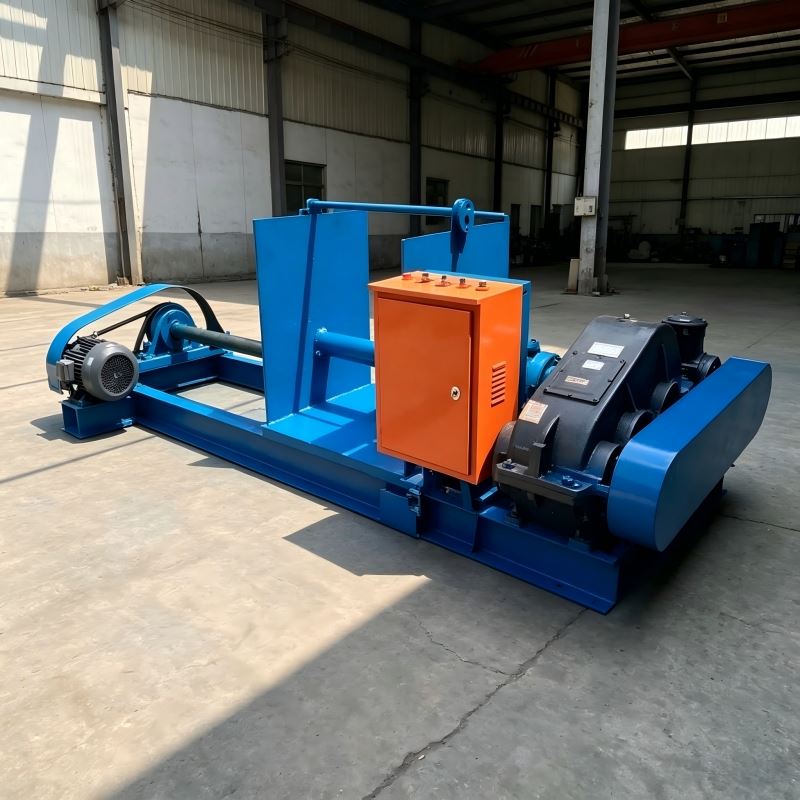

Steel Wire Bundling Machine / Heavy-duty Hydraulic Steel Wire Baler
Related Keywords: waste-tire steel wire compressing machine, post-pyrolysis steel-wire baling equipment, high-pressure metal baler, solid-waste resource-recovery baling system
| Model | Product name | Parameter |
| ZD130 |
|
(1) Motor power (KW): 5.5kw 6 poles Motor Power (KW):5.5kw, 6‑pole (2) Voltage (V): 380 Voltage (V):380 (3) Frequency (Hz): 50 Frequency (Hz):50 (4) Reducer model: 350 Reducer Model:350 (5) Equipment weight: 380kg Equipment Weight:380kg (6) Overall dimensions (length × width × height) (mm): 1700 *700*500 Overall Dimension(L×W×H)(mm):1700*700*500 |
Features
- Super-powerful hydraulic driving system:
Equipped with 15 kW-22 kW 6-pole industrial-grade motor together with Type-500 to 650 heavy-duty reducer. It generates enormous compressing pressure and is specially designed for tangled, fluffy waste steel-wool from pyrolysis process.
- Multiple baling size options:

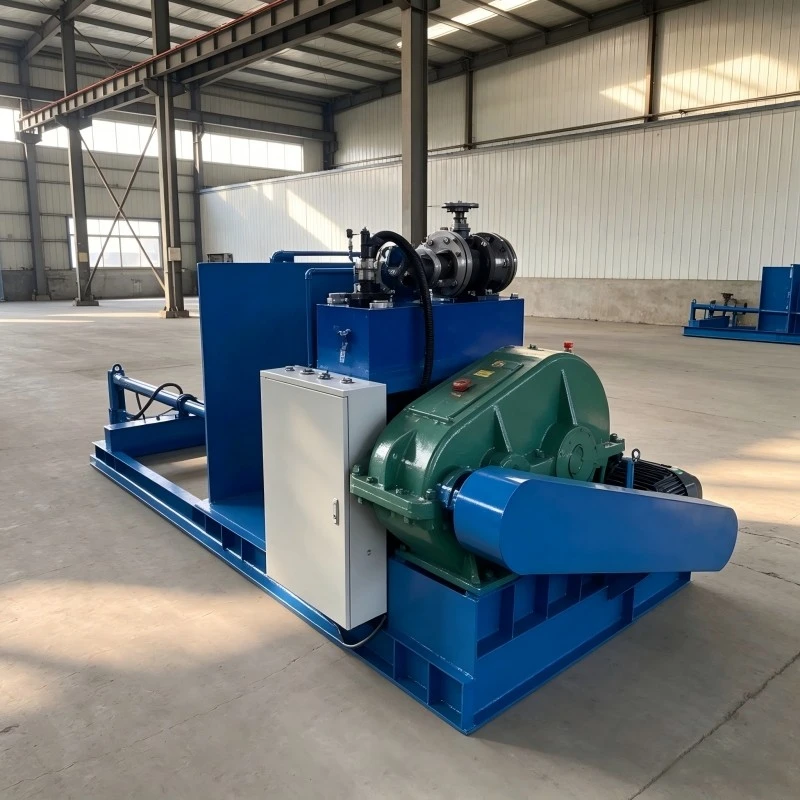

Various baling dimensions ranging from 40-50 cm up to 100 cm × 100 cm are available (e.g. ATW-ZD230), satisfying customers' warehouse storage and transportation requirements for finished blocks.
- Robust mechanical construction:
The total machine weight reaches up to 3600 kg. Its frame is welded with reinforced steel plates. The high-strength compressing chamber withstands continuous high-pressure impact from metal materials and guarantees long-term stable operation.
- Intelligent control panel:
Integrated electric control cabinet supports one-touch compression and automatic material-ejecting functions. The control logic is intuitive, so even novice operators can finish efficient baling work quickly.
Advantage
- Optimized warehouse storage space:
The Steel Wire Bundling Machine compresses fluffy waste steel wires into solid compact blocks, multiplying material density and greatly saving factory floor storage space.
- Substantially reduced logistics costs:
Baled steel-wire blocks are forklift-friendly and easy for truck loading. It significantly improves transportation efficiency and cuts domestic or cross-border freight cost per ton of waste steel wire.
- Higher resale value for scrap materials:
Neat and compact steel-wire bales are more welcomed by steel mills and scrap recyclers. They normally command higher market purchase prices compared with loose steel wires, directly improving the ROI of pyrolysis projects.
- Fully-automatic workflow:
When matched with Aotewei steel-wire winch system, it realizes full-process mechanization from reactor residue cleaning to final baling, greatly lowering manual labor intensity and safety risks.
Application Scenarios
- Back-end treatment for waste-tire pyrolysis projects: Process steel-wire residues taken out from pyrolysis reactors to achieve standardized product management.
- Metal recycling & sorting center: Concentrated compression and baling for various waste cables, fine metal wires and steel ropes.
- Steel-smelting plant raw-material preparation: Baling waste steel wires into standard-size blocks which can be directly fed into electric furnaces for remelting.
- Recycling-resource import & export trade: Delivers standard baling solutions for waste metal requiring long-distance ocean shipment and complies with container loading specifications.

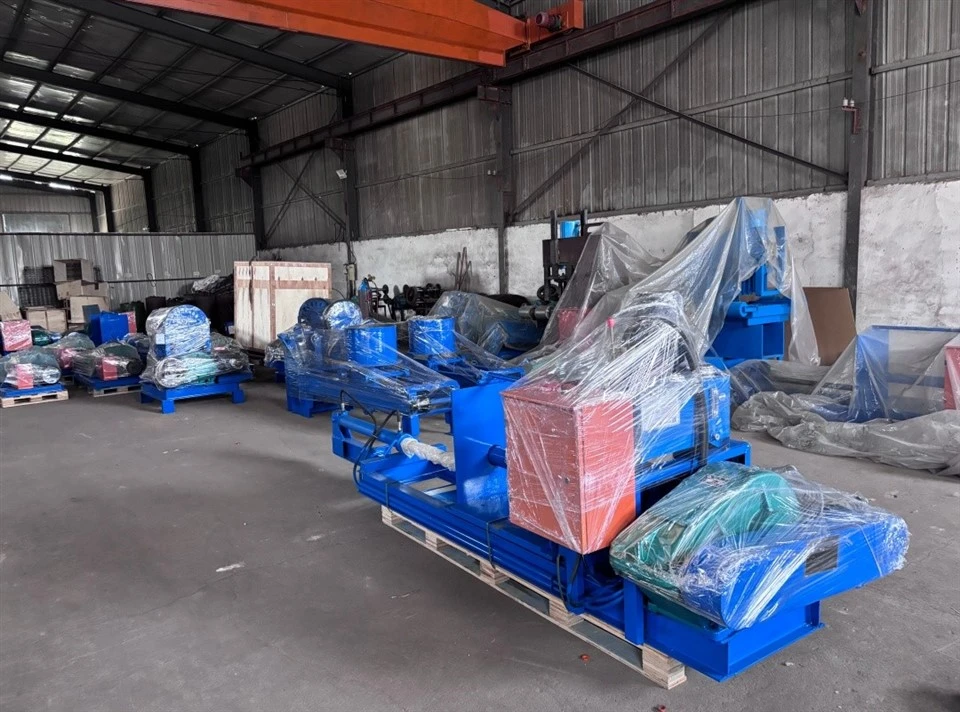

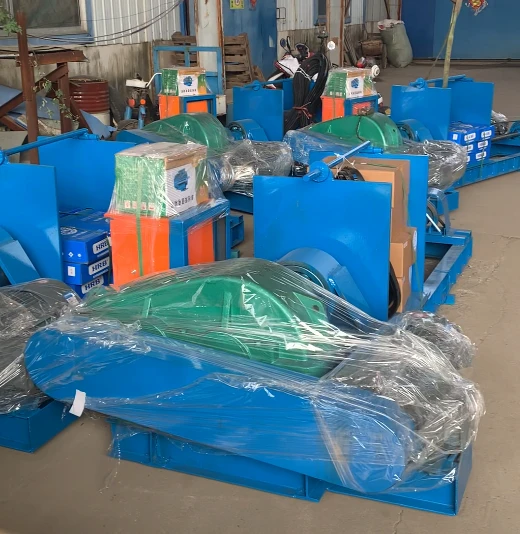

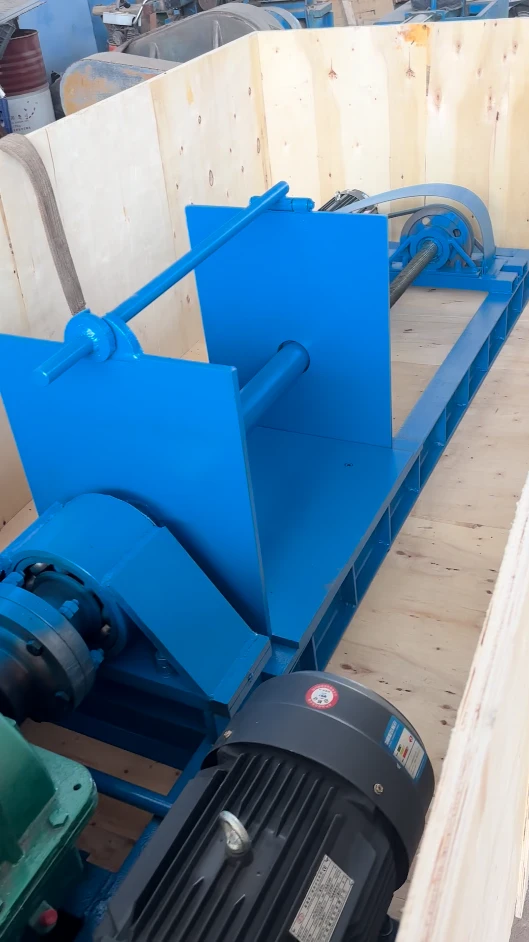

Packing & Shipping
- - Secured on heavy-duty equipment skids: Machine base is firmly fixed on heavy section-steel skids to prevent displacement caused by shaking during ocean transportation.
- - All-round anti-rust treatment: High-performance grease is applied on hydraulic cylinder plungers and key transmission parts. The whole machine is tightly wrapped with multi-layer industrial moisture-proof stretch film.
- - Safe shipment for over-dimension cargo: With large overall dimensions (e.g. 5.6 m in length), it is normally shipped in 40-foot flat-rack container or full container. Complete on-site installation, operation and commissioning manuals are supplied.
FAQ
Q: How many bales can the ATW ZD230 model produce per hour?
A: Baling output depends on operator proficiency and material density. Driven by the powerful 22 kW motor, it features an extremely fast reciprocating cycle and can well match the daily throughput of medium to large scale pyrolysis production lines.
Q: Will a small amount of carbon black impurities mixed in steel wires affect baling performance?
A: It will have no impact at all. Our Steel Wire Bundling Machine is optimized for pyrolysis working conditions. Discharge slots are designed inside the compressing chamber to handle waste steel wires containing residual carbon black or ash content.
Q: What is the approximate weight of each finished bale?
A: It depends on material compactness and your selected baling dimension. Extra large size 100 cm × 100 cm bales reach a very high single bale weight and are suitable for large scale industrial recycling.
Q: Does the hydraulic system require frequent part replacement?
A: National standard high pressure sealing components with excellent wear resistance are adopted. You only need to check hydraulic oil cleanliness regularly and top up oil as required. The maintenance frequency is very low.
. Company Profile & Production Capacity
Shangqiu Aotewei Environmental Protection Equipment Co., Ltd. is a one-stop equipment expert for global waste-resource recovery industry. Our Shangqiu (Henan) factory boasts solid manufacturing experience in heavy-duty hydraulic machinery. We are not only advanced in pyrolysis technology, but also pursue outstanding performance for back-end residue-processing equipment.
Every Steel Wire Bundling Machine from Aotewei undergoes strict stress-simulation design and full-load compression tests. We own in-house machining and assembly workshops to ensure every detail from motor selection to hydraulic pump-station installation meets export-oriented industrial standards. Thanks to reliable performance, Aotewei has helped customers in more than 30 countries including Nigeria, Thailand and Russia achieve refined and profitable solid-waste recycling operations.
