Shangqiu Aotewei Environmental Protection Equipment Co., Ltd. is one of the leading manufacturers and suppliers of tire cutting machine in China. We are committed to providing high quality customized products with competitive price. If you're going to buy ISO certified tire cutting machine, welcome to get quotation from our factory.
Product Name

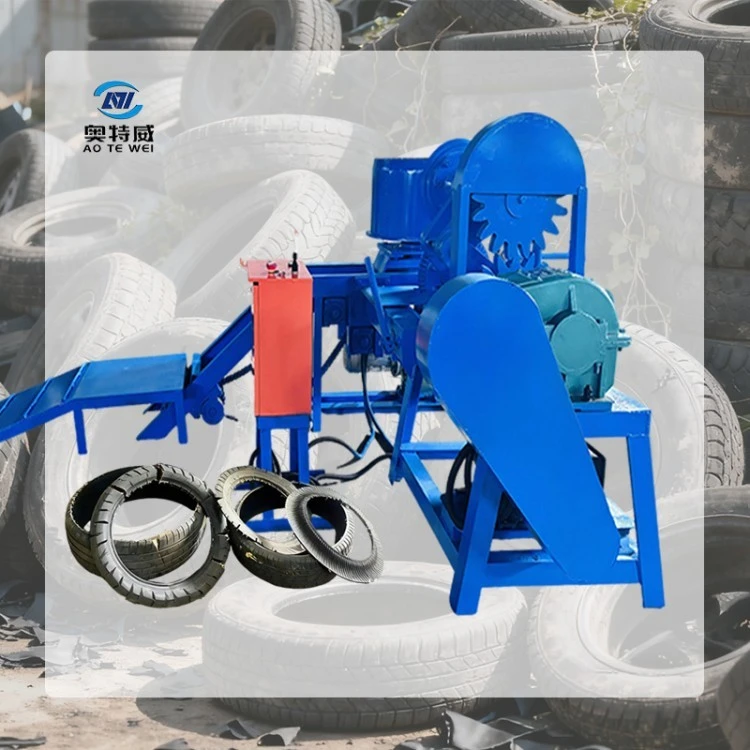

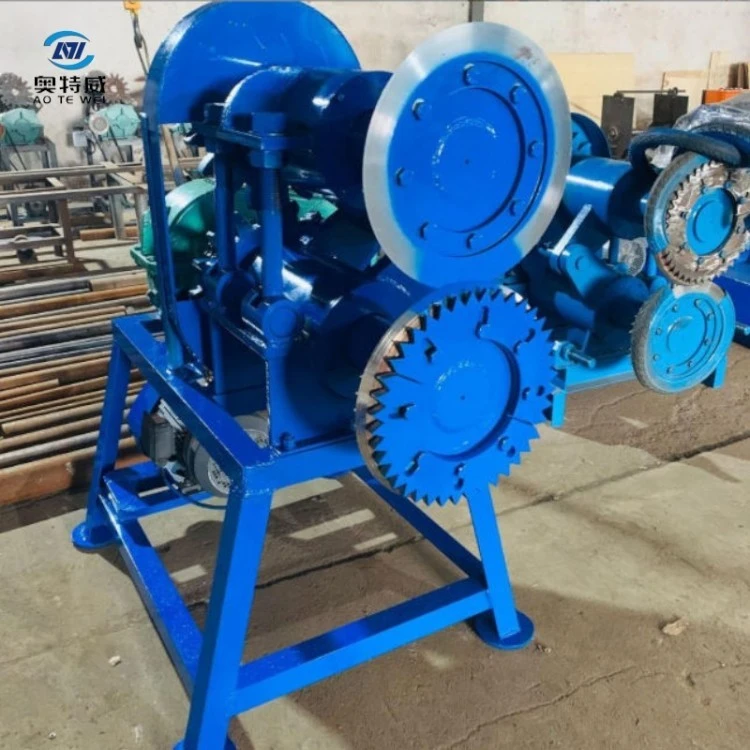

Tire Cutting Machine / Heavy-duty Waste Tire Strip Cutter
Related Keywords: large-size rubber tire cutting tool, pre-treatment equipment for tire disintegration, automatic tire cutting machine, tire-cutting equipment matched for pyrolysis plant
| Product name | Parameter | |
|
|

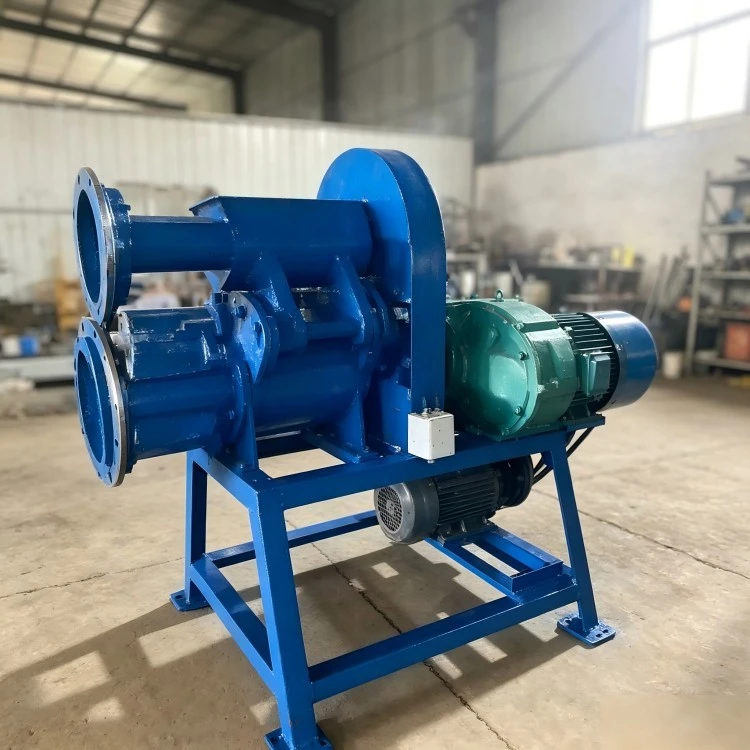

ATW‑ZD200 Long Neck Slitter | (1) Overall dimensions (length × width × height) (mm): 1500*850*1500 Dimension(L×W×H)(mm):1500*850*1500 (2)Motor power (KW):7.5 Motor power(KW):7.5 (3) Voltage (V): 380 Voltage(V):380 (4) Frequency (Hz):50 Frequency(Hz):50 (5)Reducer model: 350 Speed Reducer Model:350 (6) Equipment weight (Kg): 750 Machine weight(kg):750 |
|
|

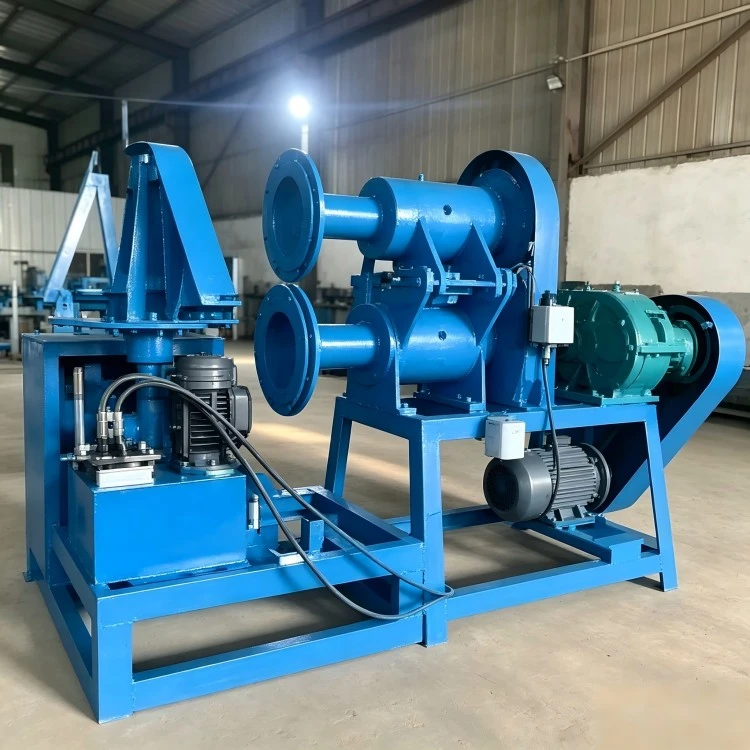

ATW‑ZD230 automatic cutting machine 【Main recommendation】 |
(1) Overall dimensions (length × width × height) (mm): 2000*1300*1500 |
|
|

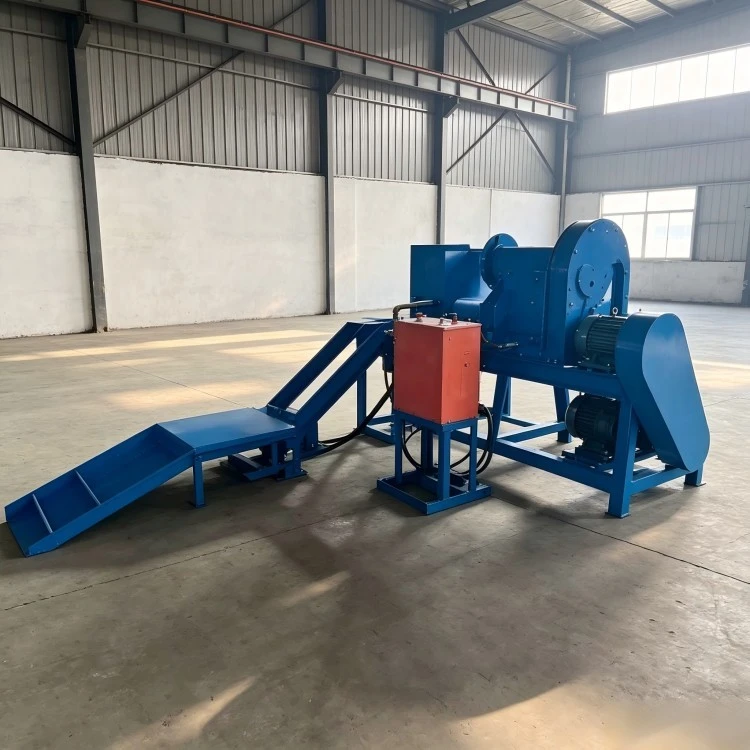

ATW‑ZD190 automatic loading and cutting machine | (1) Overall dimensions (length × width × height) (mm): 1600*1200*1400/2200*600*1400 Dimension(L×W×H):1600*1200*1400/2200*600*1400 (2)Motor power (KW):11+3 Motor power(KW):11+3 (3) Voltage (V): 380 Voltage(V):380 (4) Frequency (Hz):50 Frequency(Hz):50 (5)Reducer model: 350 Speed Reducer Model:350 (6) Equipment weight (Kg): 1350 Machine weight(kg):1350 |
|
|

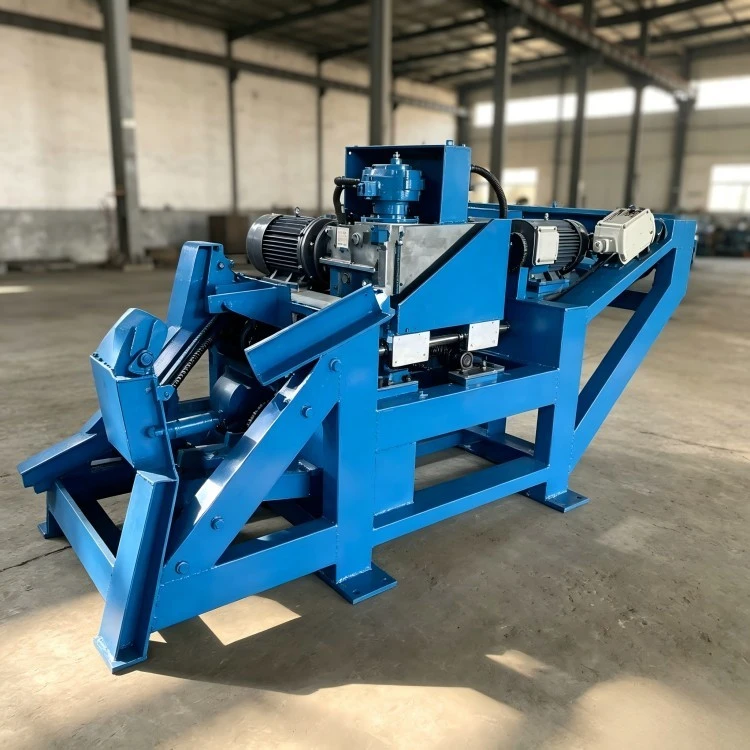

ATW‑ZD180 Large Wire Circle Cutting Machine | (1) Overall dimensions (length x width x height) (mm): 1800*1180*1120 Dimension(L×W×H)(mm):1800*1180*1120 (2) Motor power (KW): 2.2 Motor power(KW):2.2 (3) Voltage (V): 380 Voltage(V):380 (4) Frequency (Hz):50 Frequency(Hz):50 (5)Reducer model: K87 Speed Reducer Model:K87 (6) Equipment weight (Kg): 500 Machine weight(kg):500 |
Features
- Industrial-grade super-hard alloy cutting tool:
The cutter head is made of high-strength special alloy steel through multiple quenching processes. It features extremely high hardness and toughness and can easily cut various sizes of waste tires with steel-wire layers.
- Intelligent automatic cyclic operation:
Taking the flagship ATW-ZD230 as an example, the equipment supports automatic continuous cutting. Equipped with a 7.5 kW motor and heavy-duty Type-350 reducer, it delivers powerful power and stable operation.
- Precise structural design:
The whole machine frame is welded with thickened section steel with a total weight of 1200 kg. It runs with stable gravity center and minimal vibration, ensuring accurate cutting paths and an extra-long service life of cutters.
- Human-oriented safety shield:
Fully-enclosed or semi-enclosed safety protective devices are installed around the cutting zone to effectively block splashing rubber debris and guarantee personal safety of on-site operators.
Advantage
- Remarkably increase reactor loading capacity:
The Tire Cutting Machine cuts bulky whole waste tires into strips or blocks, raising the loading efficiency of pyrolysis reactors by about 30%-40% and directly boosting oil-output revenue per furnace batch.
- Extreme wear resistance & minimum maintenance:
Adopting high-grade transmission system and wear-resistant consumables, ATW-series tire cutting machines can work continuously under heavy-duty conditions at high-temperature or dusty recycling sites with an ultra-low failure rate.
- Simple operation for quick proficiency:
Optimized feeding mechanism (e.g. ZD190 model comes with built-in feeding system). One ordinary worker can complete accurate positioning and disintegration of tires, greatly reducing manual labor intensity.
- Compatibility with multiple tire specifications:
Aotewei can provide matched cutting solutions for passenger-car tires, truck tires as well as large-size engineering-machinery tires with strong universal adaptability for the industry.
Application Scenarios
- Pre-treatment for waste-tire pyrolysis production line: As a key pre-pyrolysis procedure, it cuts whole tires to fit intermittent or continuous feeders.
- Waste-rubber-particle production line: Complete primary disintegration of bulk materials before rubber grinding or granulation.
- Stockyard of solid-waste recycling center: Reduce storage volume of waste tires to facilitate transportation and subsequent centralized disposal.
- Recycling-resource workshop: Link automatic feeding and strip-cutting procedures to build an efficient closed-loop solid-waste-treatment workflow.
Packing & Shipping
- - All-round rust-proof protection: Bare mechanical surfaces are wax-sealed or coated with anti-rust oil before delivery, and the whole unit is wrapped with thick moisture-proof films.
- - Reinforced packing with metal frame: For ocean-going shipment, the machine is fixed on steel pallets or packed in export-standard fumigation-free wooden cases to avoid collision and deformation during transit.
- - Compact container-loading solution: Scientifically optimized overall dimensions (length ranging from 1.5 m to 2 m). Flexible options of consolidated or full-container shipment are available, together with detailed hoisting operation guidelines.
FAQ
Q: Is it convenient to replace worn out blades?
A: Very convenient. Our machine adopts modular cutter interface design. Customers can finish cutter flipping or replacement within 30 minutes with ordinary spanners only.
Q: What maximum tire diameter can the ZD230 model process?
A: This model is designed for mainstream specification waste tires and can handle most whole heavy truck tires and smaller size tires. Custom extended version strip cutters are available if you need to process extra large off the road engineering tires.
Q: Is the motor easy to burn out?
A: Our full series is equipped with high load pure copper motors integrated with overload protection systems. Power will be cut off automatically once foreign objects cause jamming for high operational safety.
Q: Does this tire cutting machine consume much electricity?
A: Benefiting from high torque output of Type 350 high efficiency reducer, our equipment maintains powerful cutting force while its power rating (7.5 kW / 11 kW) is much lower than similar competing products, which can significantly cut daily power consumption costs of factories.
Company Profile & Production Capacity
Shangqiu Aotewei Environmental Protection Equipment Co., Ltd. has over 20-year experience in the solid-waste recycling industry and is a leading environmental-equipment enterprise integrating R&D, manufacturing and export. We own professional mechanical-processing workshops in Shangqiu, Henan, equipped with high-precision CNC cutting and submerged-arc-welding facilities, with an annual output of more than one hundred sets of various pre-treatment auxiliary equipment.
Apart from upgrading main pyrolysis reactors, Aotewei devotes itself to technical innovation on "front-end-processing automation". Every Tire Cutting Machine must pass a 48-hour non-stop no-load test and physical-cutting joint commissioning before delivery. Upholding the craftsmanship spirit of "A sword does not lose its steel even broken; the moon keeps its brightness even when waning", Aotewei has assisted customers in more than 30 countries worldwide to realize high-efficiency resource utilization of waste tires.
