Shangqiu Aotewei Environmental Protection Equipment Co., Ltd. is one of the leading manufacturers and suppliers of hydraulic feeder in China. We are committed to providing high quality customized products with competitive price. If you're going to buy ISO certified hydraulic feeder, welcome to get quotation from our factory.
Product Name

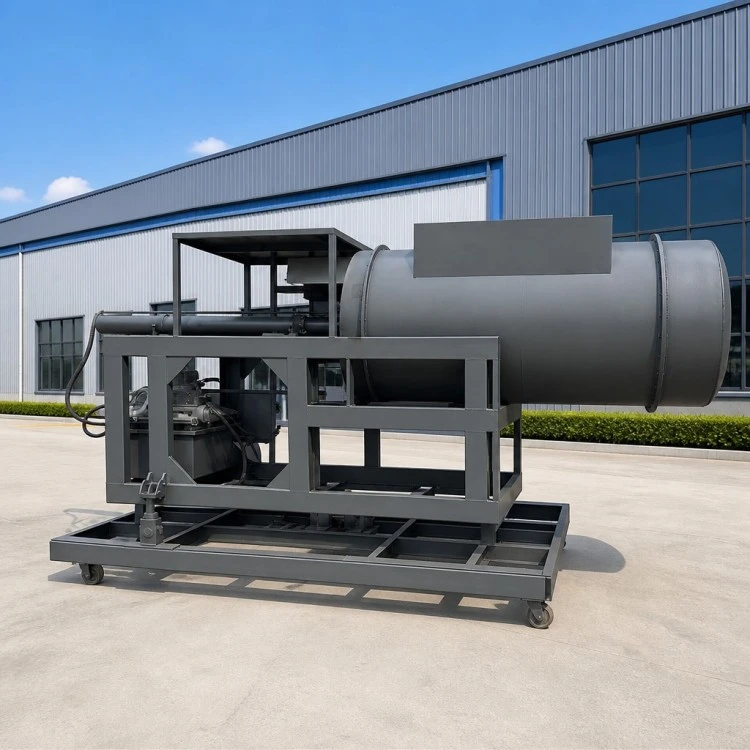

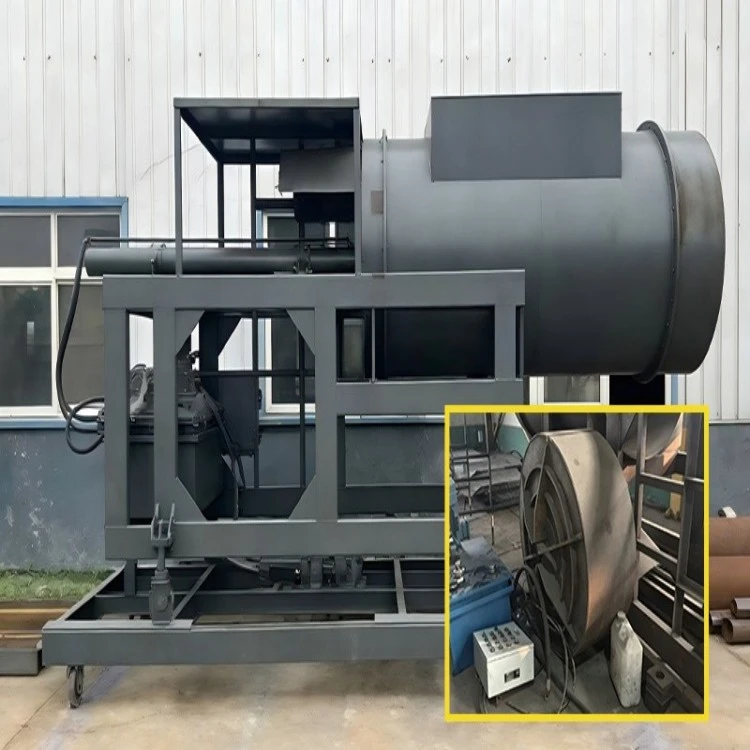

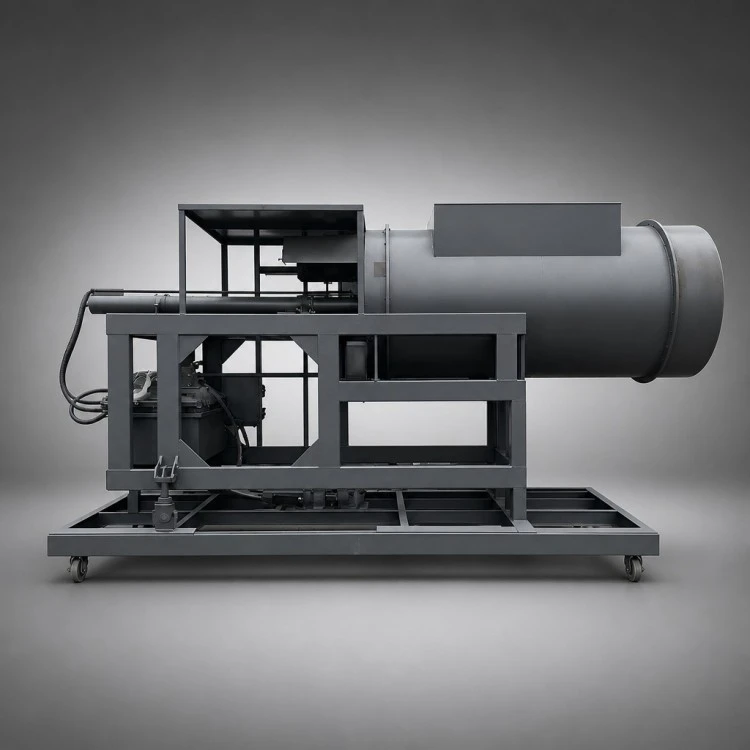

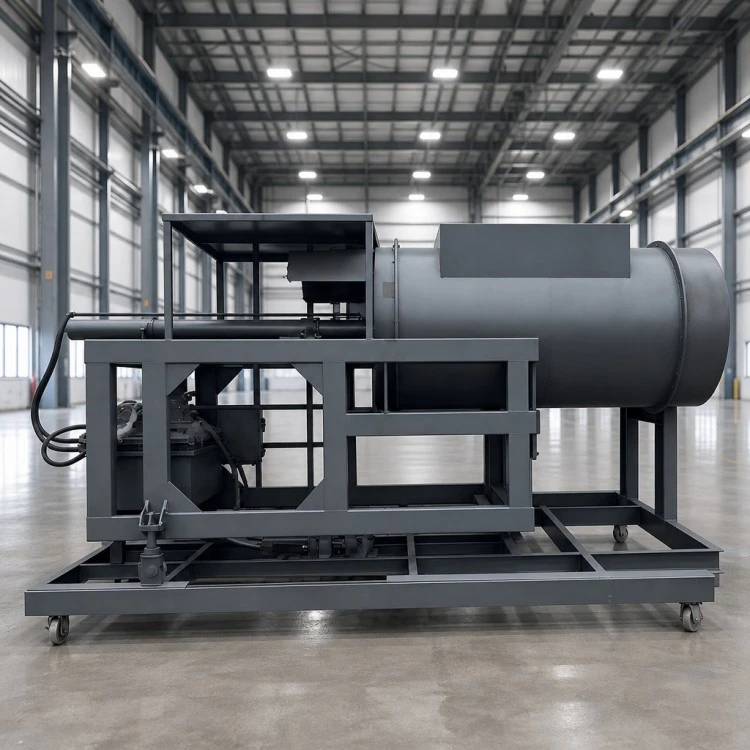

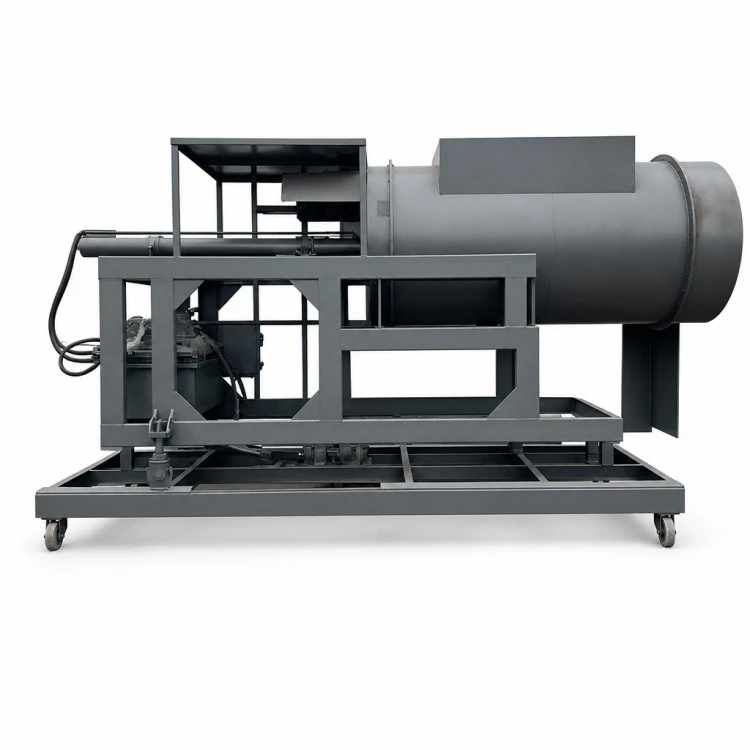

Hydraulic Feeder / Heavy-duty Waste Tire Hydraulic Pushing Machine
Note: This equipment serves as an efficient auxiliary system for pyrolysis production lines. It is specially designed for mechanized feeding of raw materials such as waste tires, waste plastics and oil sludge.
| Item | Technical Parameters | Notes |
| Product name | Hydraulic Feeder | Also known as: Fully automatic pusher |
| Product model | Mechanized and automatic feeding of waste tires, waste plastics, and sludge raw materials | Suitable for batch and semi-continuous pyrolysis furnaces |
| Thrust | 80 - 100 tons(Tons) | Powerful heavy-duty hydraulic pump station, can push the entire tire |
| Length | 3,000 mm (3 meters) | Ensure that the material is pushed deeply into the reactor tank |
| Thickness | 10 mm | Made of high-quality steel with national standard, strong resistance to compression deformation |
| Feeding Speed | 43 - 50 秒 (Seconds) | Efficient feeding significantly shortens the production cycle of a single furnace |
| Control | Wireless Remote Control | Supports multi-dimensional adjustment of front and rear, left and right, up and down |
| Walking System | Double-layer running wheel design | Equipped with 3 positioning square steels, the operation is smooth and does not shift. |
| Suitable furnace door diameter | 1,600mm / 1,700mm (customized) | Perfectly matched with Otway mainstream model reactors |
| Oil Type | 46#/68# anti-wear hydraulic oil (need to bring your own) | Adapt to hydraulic operations in various temperature difference environments |
| Highlights | Safe operation of material separation, compact anti-scattering bucket | Increase loading capacity by about 10%-15% |
Parameter description:
Efficiency: The loading process is shortened from the traditional manual operation of several hours to completed within 1 minute, which significantly improves the turnover efficiency of the cracking equipment.
Safety: The wireless remote control design allows the operator to observe and control from a safe distance, completely avoiding the risks of mechanical injury or high temperature that may exist during the traditional loading process.
Compatibility: The thrust of this feeder is calibrated not only to handle bulk plastic bales, but also to push directly into uncut truck tires (whole tire loading).
Features
High-thrust hydraulic system:
Adopts industrial-grade high-power hydraulic pump station with maximum thrust of 50-80 tons (to be verified according to specifications). It can easily handle whole tires or large plastic bales.
Heavy-duty wear-resistant structure:
The main body of the equipment is welded from national-standard high-strength section steel. The feeding chute is hardened to deliver excellent impact resistance and wear resistance, adapting to harsh industrial environments.
Wireless remote-control operation:
Equipped with a remote wireless control system. Operators can control the feeding process from a distance with broad vision and precise operation.
Compact structure with strong compatibility:
The compact hopper and chute can perfectly match Aotewei DN1700 reactors as well as reactors of various other specifications to reduce material spilling.
Advantage
Significantly improved production efficiency:
With the Hydraulic Feeder, feeding work that traditionally takes workers several hours can be shortened to 30-50 minutes, enabling fast turnover of "one furnace per day" for pyrolysis reactors.
Excellent safety protection:
It realizes separation between operators and raw materials. Operators do not need to approach the high-temperature furnace door, effectively avoiding safety hazards including scalds, flue-gas blow-out and heavy-object impact injuries.
Labor-cost saving:
Fully automatic mechanical feeding only requires one operator to complete heavy-duty handling work originally done by 3-5 workers, greatly cutting enterprise operating costs.
Fuller material loading:
Hydraulic thrust tightly pushes raw materials into the reactor. Compared with manual stacking, the loading capacity can be increased by approximately 10%-15%, improving oil output efficiency per batch.
Application Scenarios
- Waste-tire pyrolysis production line: Suitable for fast and efficient feeding of whole tires and shredded tire blocks.
- Waste-plastic recycling plant: Solves the difficulty of compressing and feeding light-weight, fluffy waste plastics.
- Oil-containing oil-sludge treatment project: Provides stable feeding for semi-continuous or intermittent oil-sludge pyrolysis systems.
- Resource-recycling industrial park: Acts as core supporting loading equipment for large-scale automatic pyrolysis workshops.
Packing & Shipping
- Modular disassembly & packing: The equipment is divided into modules including feeding hopper, hydraulic pump station and pushing chute for separate packing. Protective shields are added for key hydraulic components.
- Rust and corrosion prevention: Exposed metal surfaces are coated with anti-rust grease and wrapped with thick multi-layer plastic films to avoid salt-spray corrosion during long-distance ocean transportation.
- Container-optimized loading: The packing scheme is optimized according to equipment dimensions. It is usually shipped together with pyrolysis reactors in one container to maximize space utilization and reduce customers' freight costs.
FAQ
Q: Can the hydraulic feeder feed whole waste tires?
A: Yes. Our hydraulic pushing machine features powerful thrust. It is specially designed for feeding whole tires without pre shredding and can easily push whole tires into the reactor.
Q: How do I select the feeder specification matching my equipment?
A: We customize the width of the feeding chute according to the reactor volume and furnace door diameter of your ordered equipment, such as the standard 1.5 meter or high configuration 1.7 meter furnace door.
Q: Will the hydraulic oil freeze in low temperature environments?
A: We select high performance hydraulic oil, which can work within the temperature range from 30 ℃ to 70 ℃. For customers in extremely cold regions, we recommend installing a hydraulic oil preheating system.
Q: What is the maintenance cycle for this hydraulic system?
A: Check the hydraulic oil level and sealing rings every 3 6 months, and replace clean hydraulic oil once a year. Maintenance work is very simple.
Company Profile & Production Capacity
Shangqiu Aotewei Environmental Protection Equipment Co., Ltd. is located in a core central-China equipment-manufacturing base, with more than 20 years of R&D experience in solid-waste-treatment equipment. As an experienced manufacturer in the Tire-to-Oil sector, Aotewei has established a strict quality-control system covering raw-material procurement and fully-automatic submerged-arc welding processes.
Our production base covers a large area, equipped with CNC plasma cutting machines, large plate-rolling machines and heavy-duty lifting equipment. We have strong capacity to produce hundreds of large-scale pyrolysis and distillation units annually. Committed to technology-driven environmental protection, Aotewei not only supplies high-efficiency Hydraulic Feeder, but also delivers turn-key projects for global clients including installation planning and technical training services. At present, Aotewei equipment has been exported to more than 30 countries worldwide such as Nigeria, the Philippines and Vietnam, continuously contributing to the global circular economy.
