Shangqiu Aotewei Environmental Protection Equipment Co., Ltd. is one of the leading manufacturers and suppliers of steel wire winch in China. We are committed to providing high quality customized products with competitive price. If you're going to buy ISO certified steel wire winch, welcome to get quotation from our factory.
Product Name

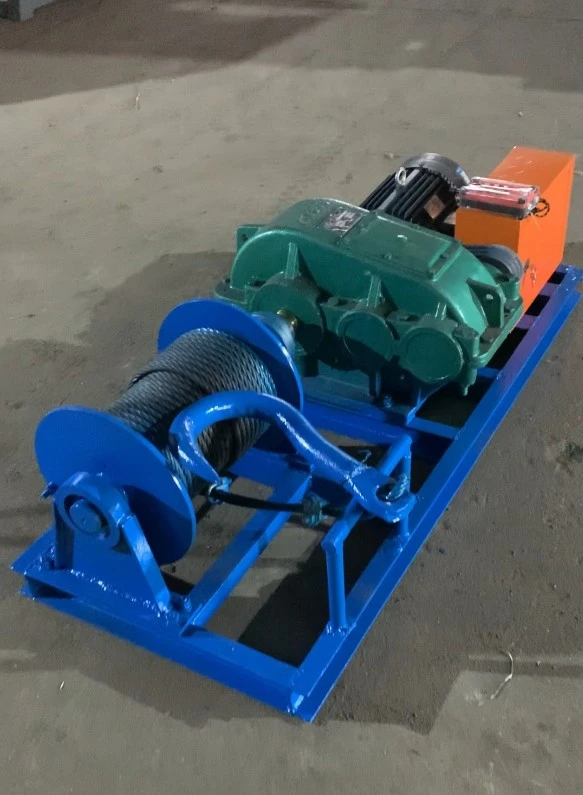

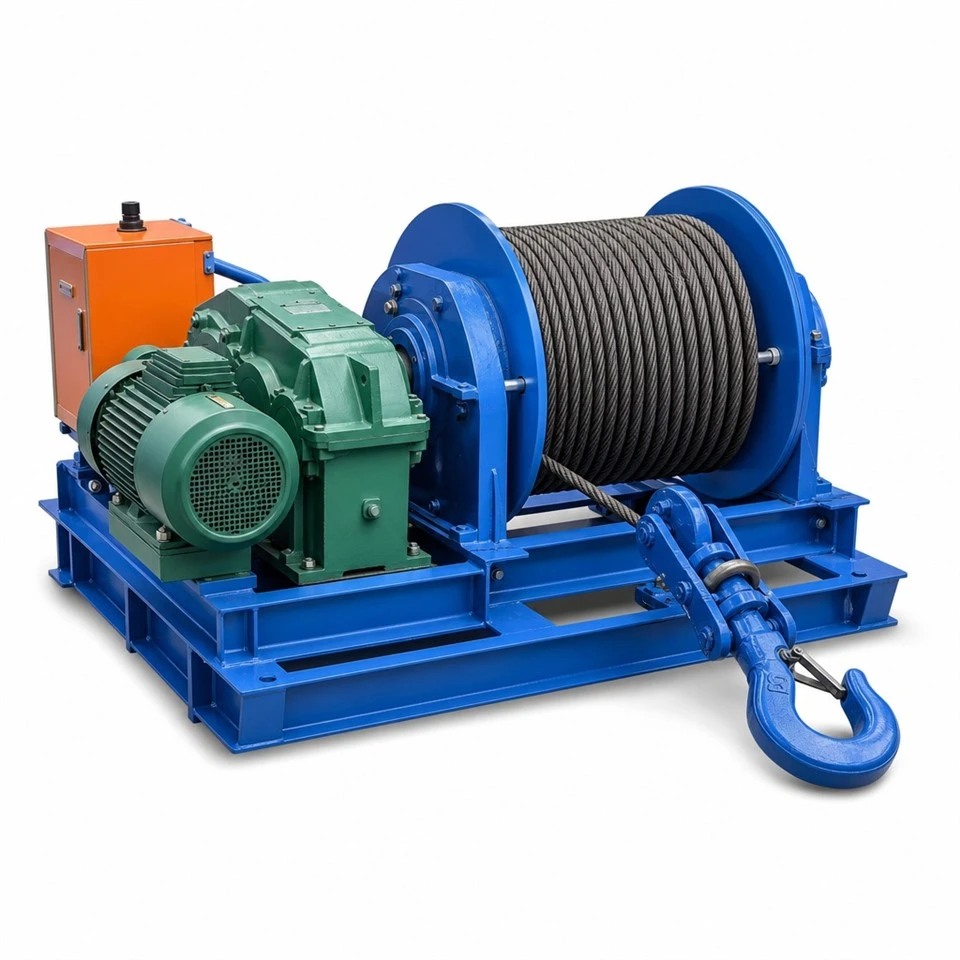

Steel Wire Winch / Heavy-duty Electric Wire Rope Winch
| Model | Product name | Parameter |
| ZD130 |
|
(1) Motor power (KW): 5.5kw 6 poles Motor Power (KW):5.5kw, 6‑pole (2) Voltage (V): 380 Voltage (V):380 (3) Frequency (Hz): 50 Frequency (Hz):50 (4) Reducer model: 350 Reducer Model:350 (5) Equipment weight: 380kg Equipment Weight:380kg (6) Overall dimensions (length × width × height) (mm): 1700 *700*500 Overall Dimension(L×W×H)(mm):1700*700*500 |
Features
- Powerful power unit:
Equipped with a 5.5 kW, 6-pole industrial-grade pure-copper motor. It delivers stable power output and extremely high starting torque, capable of handling heavy steel wire bundles generated after waste-tire pyrolysis.
- High-ratio reduction system:
Fitted with proven and reliable Type-350 industrial reducer, ensuring excellent torque-conversion efficiency and operational stability under heavy-load working conditions.
- Heavy-duty steel-wire traction assembly:

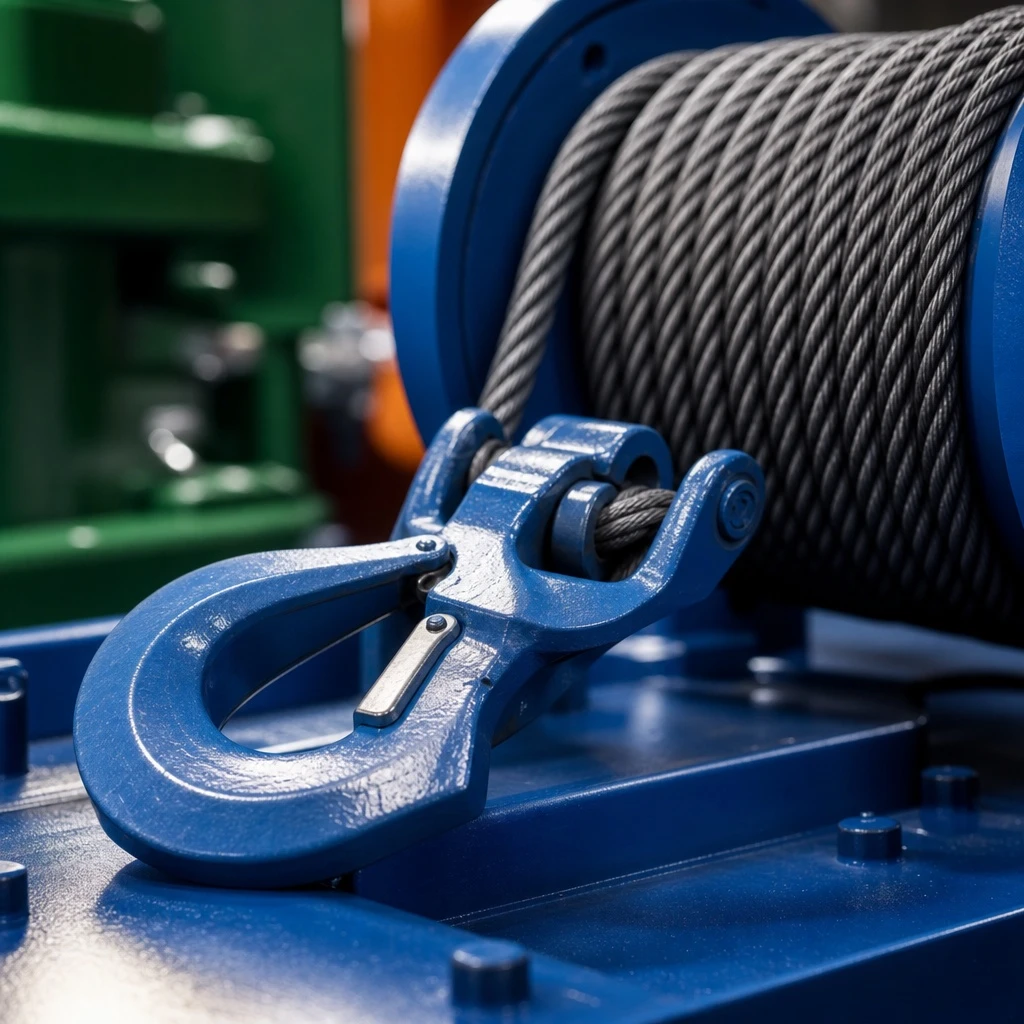

The winch drum is wound with high-strength dark-grey tensile steel wire rope, paired with a heavy-duty blue metal grab hook at the front end. It is reinforced and specially designed for removing waste steel wires inside pyrolysis reactors.
- Industrial-grade color scheme:

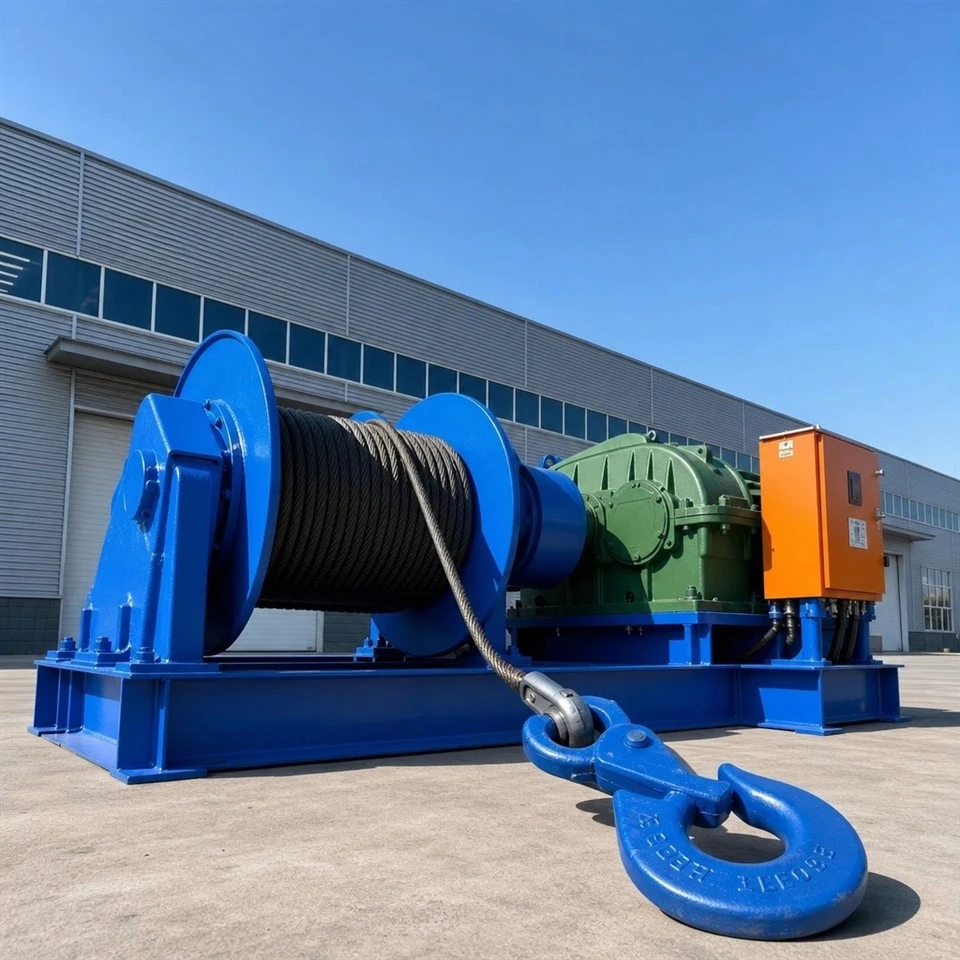

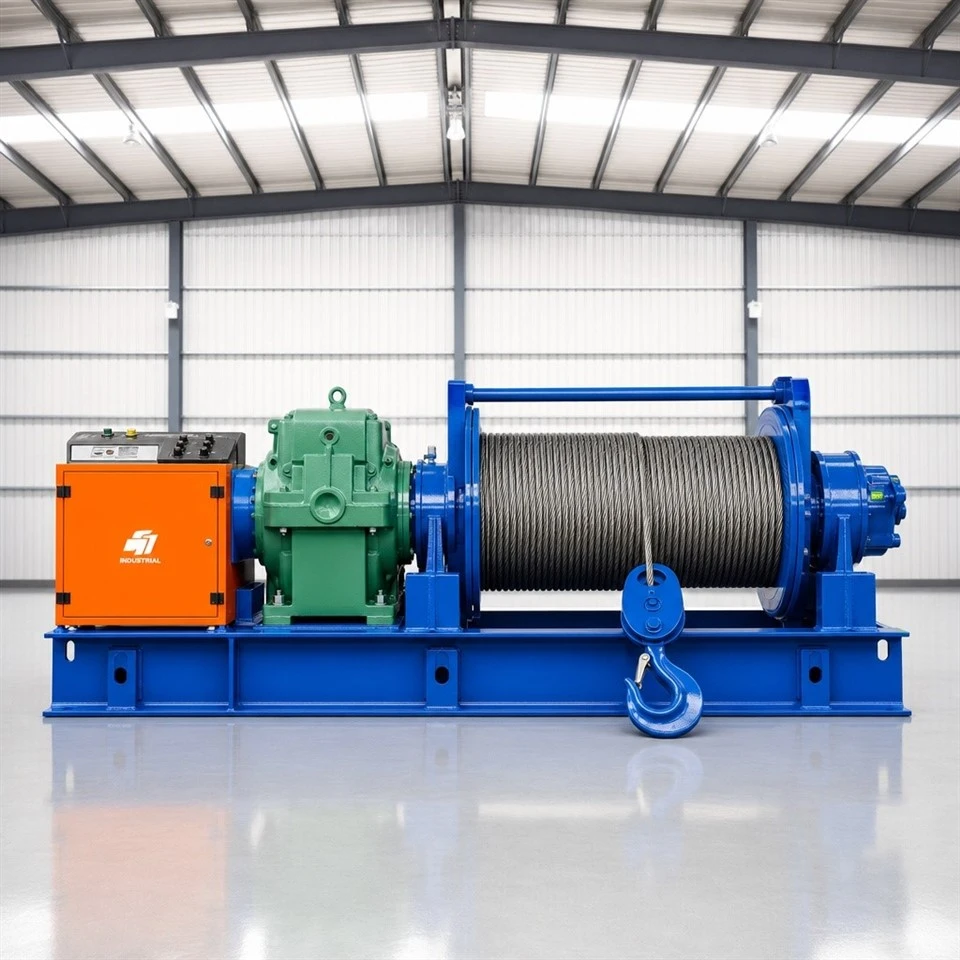

The whole machine adopts Aotewei standard color layout (bright-blue base frame, green motor unit, orange electric-control cabinet). It not only features a professional appearance, but also provides high visibility and safety within complex factory environments.
Advantage
- Ultra-fast cleaning efficiency:
Replacing manual cleaning with the Steel Wire Winch cuts the reactor steel-wire-removal procedure from several hours down to a few minutes, significantly accelerating the production turnover cycle for each furnace batch.
- Outstanding safety protection:
Remote-control operation keeps operators at a safe physical distance from high-temperature zones to completely eliminate mechanical injuries that may occur with traditional cleaning methods.
- Ultra-durable design:
The machine weighs approximately 380 kg. Its compact dimension of 1700*700*500 mm delivers exceptional structural strength. Major transmission components are surface-hardened for an extremely low failure rate.
- Reduced operating energy consumption:
Thanks to the adoption of a low-speed high-power 6-pole motor, the unit maintains strong pulling force while completing tasks with improved energy-efficiency ratio, lowering long-term factory operating expenses.
Application Scenarios

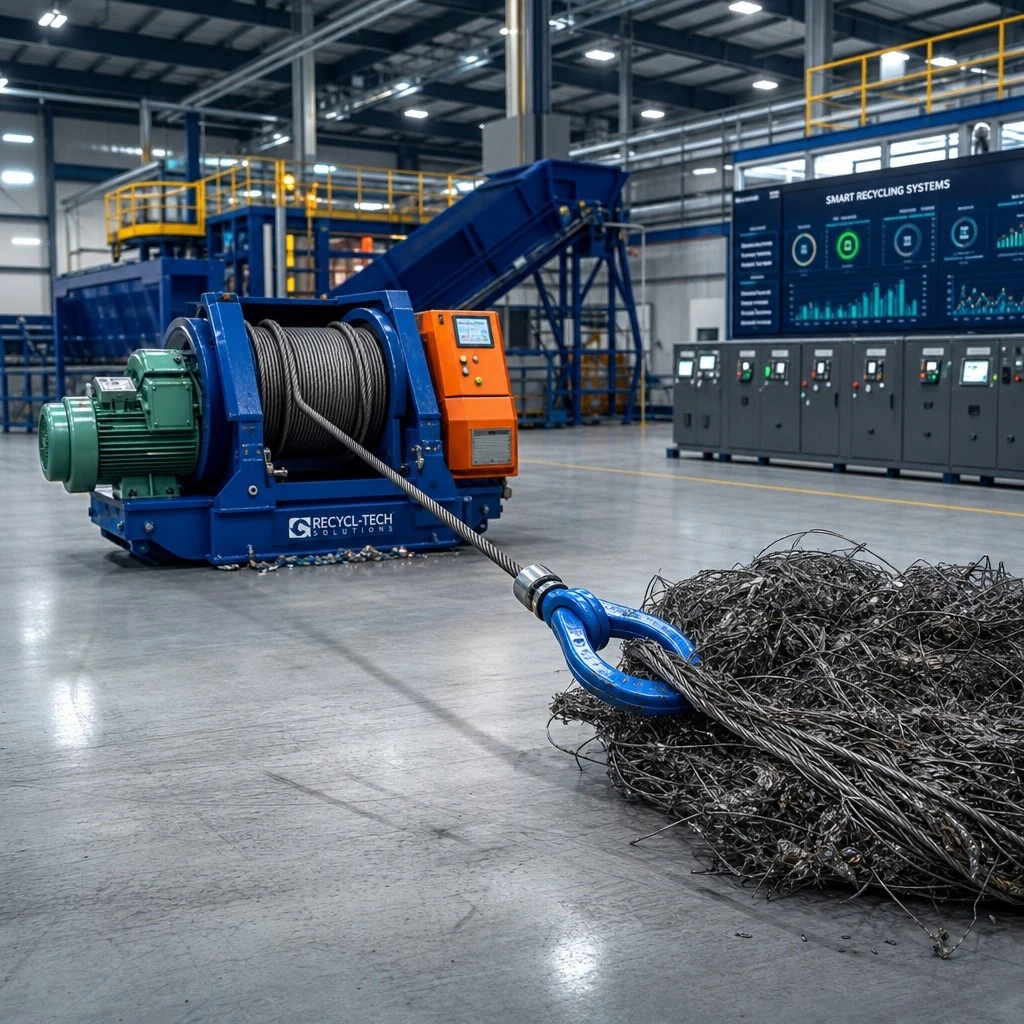

- Post-processing cleaning for waste-tire pyrolysis plant: Efficiently hooking and dragging tangled waste steel-wool out of pyrolysis reactor liners to designated areas.
- Waste-metal recycling stockyard: Acting as auxiliary traction equipment for displacement and stacking of bulk waste-metal bundles and steel cables.
- Heavy-industry production workshop: Serving as the core power unit for material displacement under working conditions requiring large-pull horizontal traction.
- Equipment maintenance & installation: Providing reliable vertical or horizontal traction during installation of pyrolysis equipment or overhaul of large-size spare parts.
Packing & Shipping
- - Moisture-proof sealed packaging: Motors and electric-control cabinets are wrapped with thick multi-layer moisture-proof films and coated with industrial anti-rust grease to prevent salt-spray corrosion during ocean transportation.
- - Standard fumigation-free wooden case: The complete machine is secured inside robust steel frames or fumigation-free wooden cases, complying with safety requirements for long-distance cross-border ocean shipment.
- - Compact shipping solution: Reasonable overall dimension (1.7 m in length) allows easy container loading. LCL consolidated shipment is supported to effectively save cross-border logistics costs for customers.
FAQ
Q: Can the steel rope length of this winch be customized?
A: Yes. The standard length fits mainstream pyrolysis reactors, yet we can supply extended length steel rope configurations according to special on site distance requirements of your plant.
Q: Is the 5.5 kW power sufficient for steel wire removal from a 15 ton reactor furnace?
A: Fully sufficient. Combined with the high ratio Type 350 reducer, our Steel Wire Winch generates instant pulling force adequate for steel wire cleaning for all mainstream intermittent pyrolysis furnaces available on the market.
Q: Can the equipment voltage be adjusted for my local country?
A: Yes. Though the standard specification is 380V/50Hz, we can customize voltage configurations complying with local standards. Please confirm with our technical team before placing orders.
Q: What is the routine maintenance for this equipment?
A: It is recommended to regularly inspect steel rope wear and keep the reducer lubricating oil clean and sufficient, so as to maintain the unit in optimal working condition.
Company Profile & Production Capacity
Shangqiu Aotewei Environmental Protection Equipment Co., Ltd. is an experienced player in the global solid-waste resource-recovery sector, focusing on full-process automation upgrades for pyrolysis and distillation systems. Our manufacturing base in Shangqiu, Henan is equipped with advanced metal-cutting and heat-treatment processes. Every Steel Wire Winch must pass strict pull-load testing and motor temperature-rise tests before delivery.
Upholding the production philosophy of "Start from the end goal", Aotewei manufactures not only core pyrolysis reactors, but also high-efficiency auxiliary systems such as this winch to boost customers' production efficiency. Our equipment is well-known for high reliability and has been deployed in hundreds of industrial sites across more than 30 countries including Nigeria, Vietnam and Russia. Choosing Aotewei means you obtain not merely a single machine, but a mature and high-efficiency environmental-friendly energy-recovery solution.
