Products Description

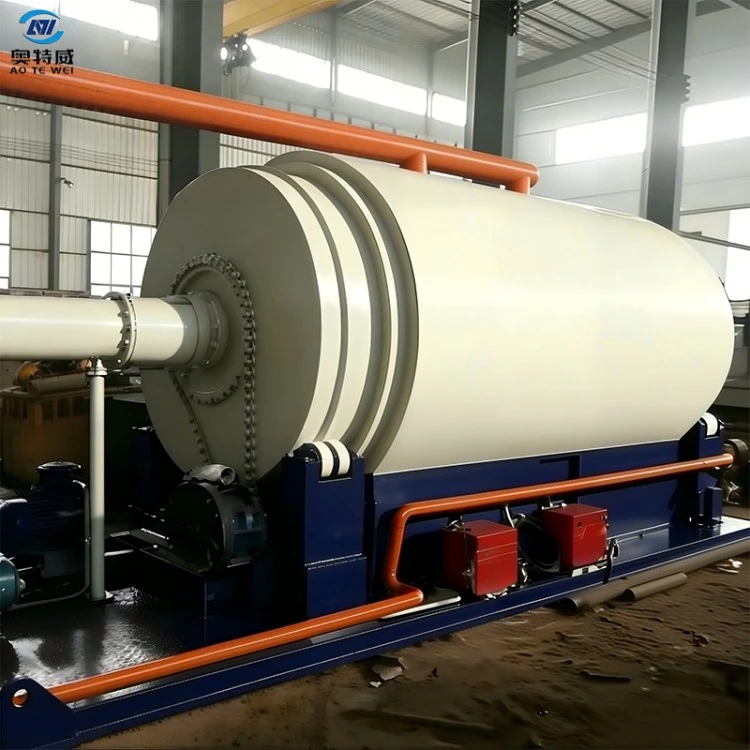

Municipal Solid Waste (MSW) Pyrolysis Plant

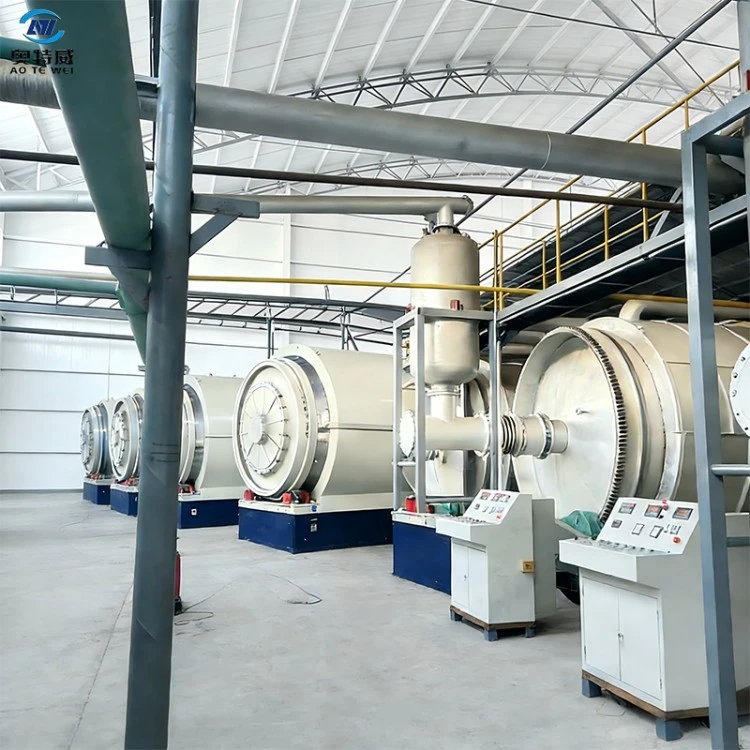

MSW Municipal Solid Waste Pyrolysis Plant is a complete pyrolysis disposal system developed for sorted municipal solid waste. It specially handles sorted-and-dehydrated domestic waste and Refuse-Derived Fuel (RDF). Through oxygen-free pyrolysis, solid waste is converted into fuel oil, combustible gas and carbon residues. Focusing on material pre-treatment, continuous feeding and advanced flue-gas purification, the complete system is suitable for municipal solid-waste disposal and environmental-sanitation waste-to-resource projects to realize waste volume reduction and energy recovery.
Price Note: This is a custom-built complete project. Final price depends on waste processing capacity, waste moisture content, pre-treatment accessories and environmental-protection emission standards. Reference starting price for basic complete set: USD 50 000 / set, excluding ocean freight, civil-engineering works and on-site installation & commissioning. Itemized quotation can be provided based on waste test reports and project operating conditions.
| Technical Parameter of the Pyrolysis plant | |||
| 1 | Suitable Raw Materials | Rubber/Plastic Products etc | Rubber/Plastic Products etc |

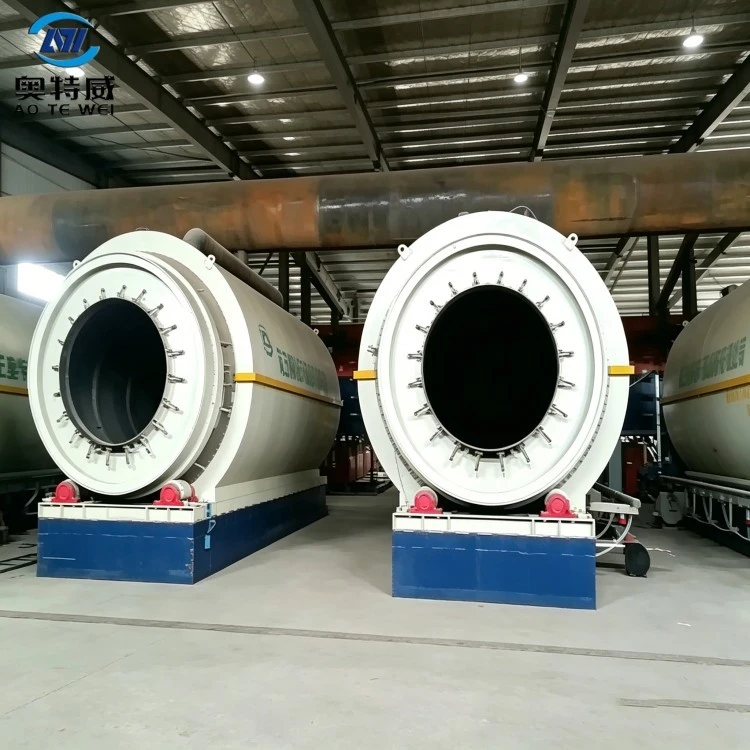

| 2 | Structure | Horizontal Rotation Type | Horizontal Rotation Type |
| 3 | Reactor Size | φ2600×6600mm φ2800×8000mm φ3000×8800mm |
φ1500×2000mm φ1800×4000mm φ2000×600mm |
| 4 | Capacity for One Batch | 8-10Mt; 12-15Mt; 18-20Mt | 1Mt; 3Mt; 5Mt |
| 5 | Oil Yield from Tyres | 38%~45% | 38%~45% |
| 6 | Work Pressure | Normal Pressure | Normal Pressure |
| 7 | Reactor Rotation Speed | 0.4R/M | 0.4R/M |
| 8 | Fuels Choice | Coal, Wood, Gas, Oil | Coal, Wood, Gas, Oil |
| 9 | Power | 15~22kw/h | 8~15kw/h |
| 10 | Cooling Method | Cycling Water | Cycling Water |
| 11 | Type of Drive | External Annular Gear | External Annular Gear |
| 12 | Heating Method | Direct Heating | Direct Heating |
| 13 | Type of Installation | Without Foundation | With Foundation / Integrated Base |
| 14 | Noise dB (A) | ≤ 85 | ≤ 85 |
| 15 | Operating Mode | Intermittent Operation | Intermittent Operation |
| 16 | Total Weight (MT) | 25~50 | 10~25 |
Features
① Compatible with complex MSW components with reserved pre-treatment interfaces
MSW Municipal Solid Waste Pyrolysis Plant accepts sorted, crushed and dehydrated MSW and RDF. Interfaces for crushers, dryers and sorting conveyor lines are reserved for direct connection with upstream pre-treatment sections, adapting to highly variable waste compositions.
② Sealed negative-pressure pyrolysis system to prevent waste gas leakage
The whole pyrolysis section runs under sealed negative pressure to avoid escape of malodorous gas during pyrolysis, improve workshop working conditions and prevent odor diffusion at waste-treatment sites.
③ Anti-coking & anti-clogging structure for high-ash municipal solid waste
Optimized reactor and pipeline structures are tailored for high-ash and impurity-rich municipal waste. Slag-discharging and coke-cleaning mechanisms are equipped to reduce pipeline coking and blockage and ensure long-term stable operation.
④ Multi-stage advanced flue-gas purification system to meet strict municipal emission standards
Multi-level purification units including dust removal, spray scrubbing, desulfurization, denitrification and deodorization are configured to treat complex flue-gas pollutants from MSW pyrolysis and comply with municipal environmental-protection regulations worldwide.
⑤ Combustible gas recycling system for energy self-sufficiency and lower energy consumption
Combustible gas generated from waste pyrolysis can be recycled to heat the equipment, cutting consumption of external fuel, achieving partial energy self-supply and reducing long-term energy costs for municipal projects.
Advantages
① Realize MSW resource recovery as an alternative to conventional landfill and incineration
Converts sorted municipal waste into energy products such as fuel oil and combustible gas, greatly reducing land occupation for landfill and avoiding risks of excessive dioxin from direct incineration, balancing volume reduction and resource recovery.
② Negative-pressure sealed process effectively solves odor problems in waste treatment
Negative-pressure sealing throughout the process prevents odor leakage and creates a friendly working environment, ideal for waste-treatment projects near towns.
③ Strong waste adaptability with compatibility for RDF feedstock
It can process sorted domestic waste and directly connect with output from RDF production lines. Flexible project expansion fits diverse waste-collection models in different regions.
④ Internal gas recycling significantly reduces project operating costs Pyrolysis-produced combustible gas is reused as heat source, lowering heavy reliance on coal, diesel and other external fuels and cutting long-term operating expenditure of municipal projects.
⑤ Advanced multi-stage flue-gas treatment meets municipal environmental-acceptance standards globally
Custom-designed flue-gas treatment units target pollutants from municipal waste. Emission indicators satisfy strict local municipal requirements and support smooth environmental-impact assessment approval.
.
Application Scenarios
- - Municipal MSW resource-recovery projects: For urban environmental-sanitation solid-waste disposal centers to realize energy recovery from sorted and dehydrated municipal solid waste.
- - RDF disposal plants: Connect with RDF production lines for pyrolysis and resource utilization of refuse-derived fuel briquettes.
- - County-level centralized waste-disposal bases: Central treatment of domestic waste collected from surrounding towns to relieve landfill capacity pressure.
- - Industrial-park co-disposal projects: Supporting solid-waste treatment facilities for co-processing park domestic waste and partial organic solid waste.
- - Overseas municipal waste PPP projects: Complete-equipment supply for overseas government waste-treatment tenders to achieve MSW volume reduction and energy recovery.
- - Landfill aged-waste remediation projects: Pyrolysis resource treatment of excavated and screened aged landfill waste for stock-waste remediation.
Packing & Shipping
Packing Method:
Main equipment is anti-rust and anti-corrosion treated, covered with waterproof tarpaulin with reserved lifting lugs; large-size components are bare-packed. Motors, meters and electric-control parts are packed in shock-proof and moisture-proof plywood crates. Pipes, fasteners and spare-part kits are packed in export wooden cases and pallets. Complete project documents are supplied: process drawings, civil-engineering drawings, installation drawings, PLC specifications, operation-maintenance manual and packing list.
Shipping Method:

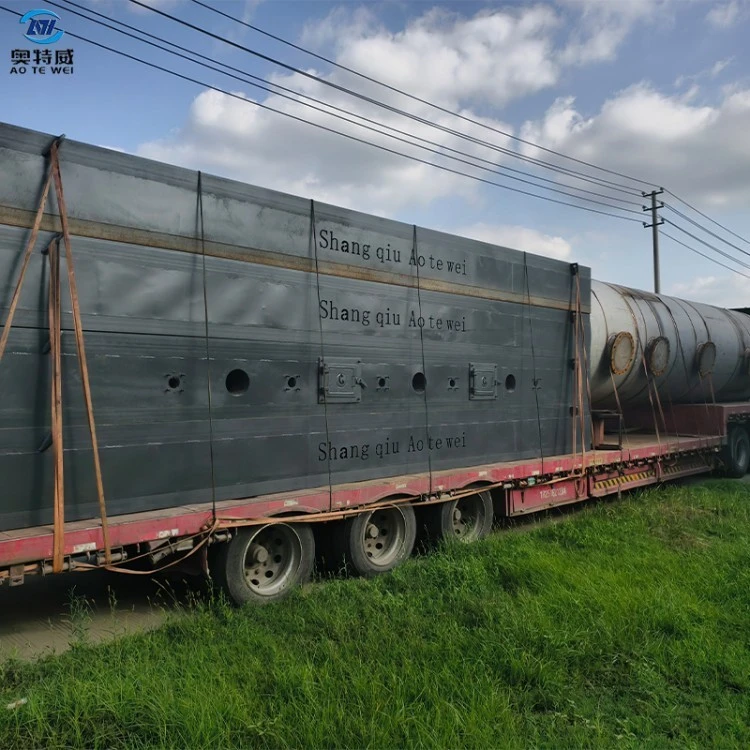

Oversized heavy cargo is shipped by break-bulk vessel; standard-size modules are loaded into 40HQ containers. Heavy-duty flat-bed trucks deliver goods directly to construction sites for inland transport.
Delivery Lead Time:
90-130 working days upon deposit receipt, subject to project scale and customized configurations. Lead time will be extended for custom pre-treatment and environmental-protection units. Photos, videos and documents will be sent for customer confirmation before shipment.
FAQ
Q1: What are preconditions for MSW pyrolysis plant to process waste?
A: Raw municipal solid waste cannot be fed directly. It must be sorted, crushed and dehydrated to reduce impurities and moisture. Sorted domestic waste or RDF is preferred. Waste test reports are recommended for customized solution design.
Q2: What is the processing capacity of this plant?
A: Single set daily capacity ranges from 20 100 tons of municipal solid waste. Single unit or multi unit parallel schemes can be planned according to total project throughput.
Q3: What products are generated after waste pyrolysis?
A: Outputs include fuel oil, recyclable combustible gas and solid carbon ash. Gas is preferentially reused as heating source for the plant; fuel oil can be sold; carbon ash will be disposed harmlessly.
Q4: Does the equipment require complicated civil engineering works?
A: As a large scale municipal complete project, load bearing foundations, sewage collection system, workshop building and water supply & drainage systems are required. We will provide complete civil engineering condition drawings for construction by local contractors.
Q5: Will dioxin be produced during MSW pyrolysis?
A: High temperature pyrolysis, rapid quenching and multi stage flue gas purification are adopted to restrain dioxin formation. The integrated flue gas treatment system ensures tail gas meets municipal environmental protection requirements.
Q6: Is full automatic PLC control mandatory for the whole production line?
A: Full automatic PLC configuration is recommended for municipal MSW projects. Semi automatic version is also available subject to budget. Full automatic mode is preferred for stable operation of municipal waste treatment projects.
Company Profile & Manufacturing
Our factory is a professional manufacturer dedicated to R&D and production of complete solid-waste pyrolysis resource-recovery equipment, with over 20-year experience in waste-tire, waste-plastic and municipal-solid-waste pyrolysis equipment. Equipped with standardized workshops and complete production lines including cutting, welding, flaw detection and final assembly, we provide full-chain services covering process design, equipment manufacturing, complete assembly and performance testing. Our in-house R&D team develops custom solutions for different countries and various solid-waste types, undertaking small-to-large-scale municipal MSW complete projects. All pressure-vessel components are manufactured and inspected in accordance with standards, with full machine testing before delivery. We offer overseas clients end-to-end services including project proposal design, material test reference, equipment production and technical guidance. Our products have been exported to dozens of countries worldwide with numerous successful solid-waste resource-recovery projects.
